Product Overview

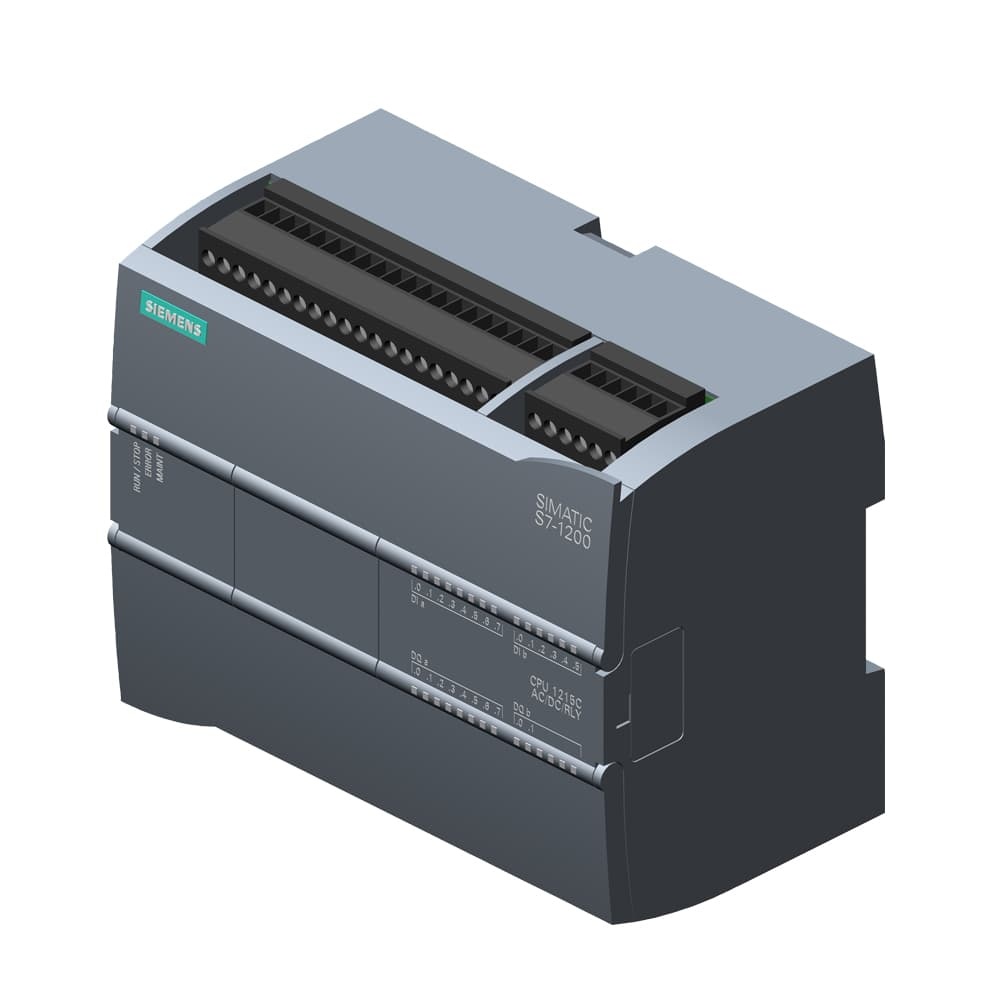

6ES7215-1BG40-0XB0 is the CPU 1215C compact PLC controller from Siemens SIMATIC S7-1200 series. With higher memory and enhanced communication/high-speed capabilities compared to CPU 1214C, it is ideal for medium-to-large automation lines, special machinery, and complex motion control applications.
Key Specifications
- Model No.: 6ES7215-1BG40-0XB0
- CPU: CPU 1215C
- Series: SIMATIC S7-1200
- Power Supply: 85~264V AC (47~63Hz)
- Digital Inputs (DI): 14 × 24V DC
- Digital Outputs (DO): 10 × Relay (2A per point)
- Analog Inputs (AI): 2 × 0-10V DC
- Program/Data Memory: 250 KB
- Communication: PROFINET (TCP/IP)
- High-Speed Counters: 6 channels, up to 100 kHz
- Pulse Outputs: PTO/PWM, up to 100 kHz
- Mounting: Standard DIN rail
- Approvals: CE, UL, FM, KC
Main Features
- Supports IEC 61131-3 programming languages (LAD/FBD/SCL)
- Integrated Real-Time Clock (RTC), ~7 days backup
- Expandable with signal modules, communication modules, and signal boards
- Built-in Web server for remote monitoring & diagnosis
- Multi-color LED indicators (RUN/STOP/ERROR)
- Integrated PID control with auto-tuning
Typical Applications
- Complete packaging lines & sorting systems
- Automotive component assembly machines
- Building automation (HVAC) & energy management systems
- Water treatment & pump/valve control
- Machine retrofitting & non-standard automation
Quality & Warranty
- 100% New & Original
- 1 Year Warranty
- Technical support & selection service
