Product Overview

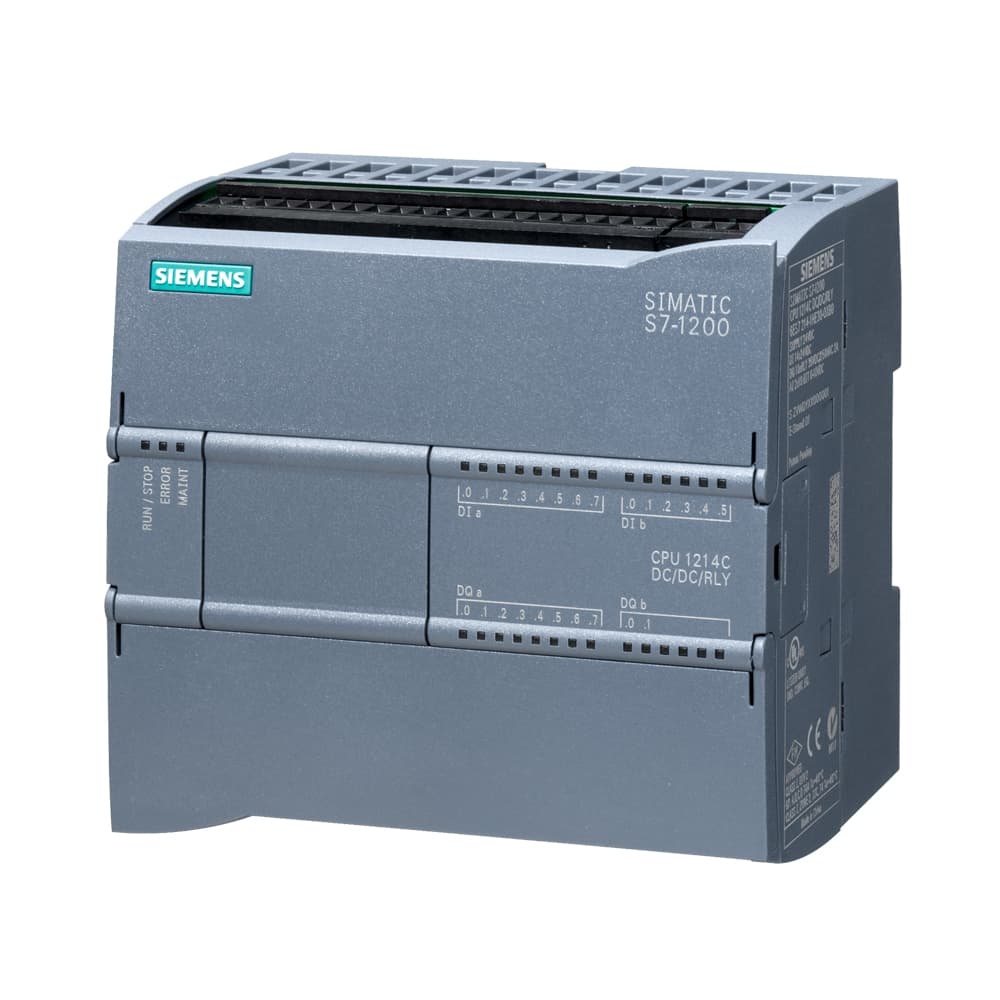

6ES7214-1HG40-0XB0 is the CPU 1214C compact PLC controller from Siemens SIMATIC S7-1200 series, designed for medium-sized automation systems. It features 20.4~28.8V DC power, 14 DI / 10 DO Relay / 2 AI, built-in PROFINET Ethernet, and offers powerful logic, motion (PTO/PWM) and PID process control.
Key Specifications
- Model No.：6ES7214-1HG40-0XB0
- CPU：CPU 1214C
- Series：SIMATIC S7-1200
- Power Supply：20.4~28.8V DC
- Digital Inputs (DI)：14 × 24V DC
- Digital Outputs (DO)：10 × Relay (2A per point)
- Analog Inputs (AI)：2 × 0-10V DC
- Program Memory：150 KB
- Communication：PROFINET (TCP/IP)
- High-Speed Counters：6 channels, up to 100 kHz
- Pulse Outputs：PTO/PWM, up to 100 kHz
- PID Control：Integrated with auto-tuning
- Mounting：Standard DIN rail
- Approvals：CE, UL, FM, KC
Main Features
- Supports IEC 61131-3 programming languages (LAD, FBD, SCL)
- Integrated Real-Time Clock (RTC), ~7 days backup
- Expandable with signal & communication modules
- Built-in Web server for remote monitoring
- Multi-color LED diagnostics (RUN/STOP/ERROR)
Typical Applications
- Packaging machinery, material handling lines
- Building automation (HVAC), lighting control
- OEM machine control (textile, food, water treatment)
- Pump/valve control, level/pressure/temperature loops
- Automated production & assembly machines
Quality & Warranty
- 100% New & Original
- 1 Year Warranty
- Technical support & selection service
