Product Overview

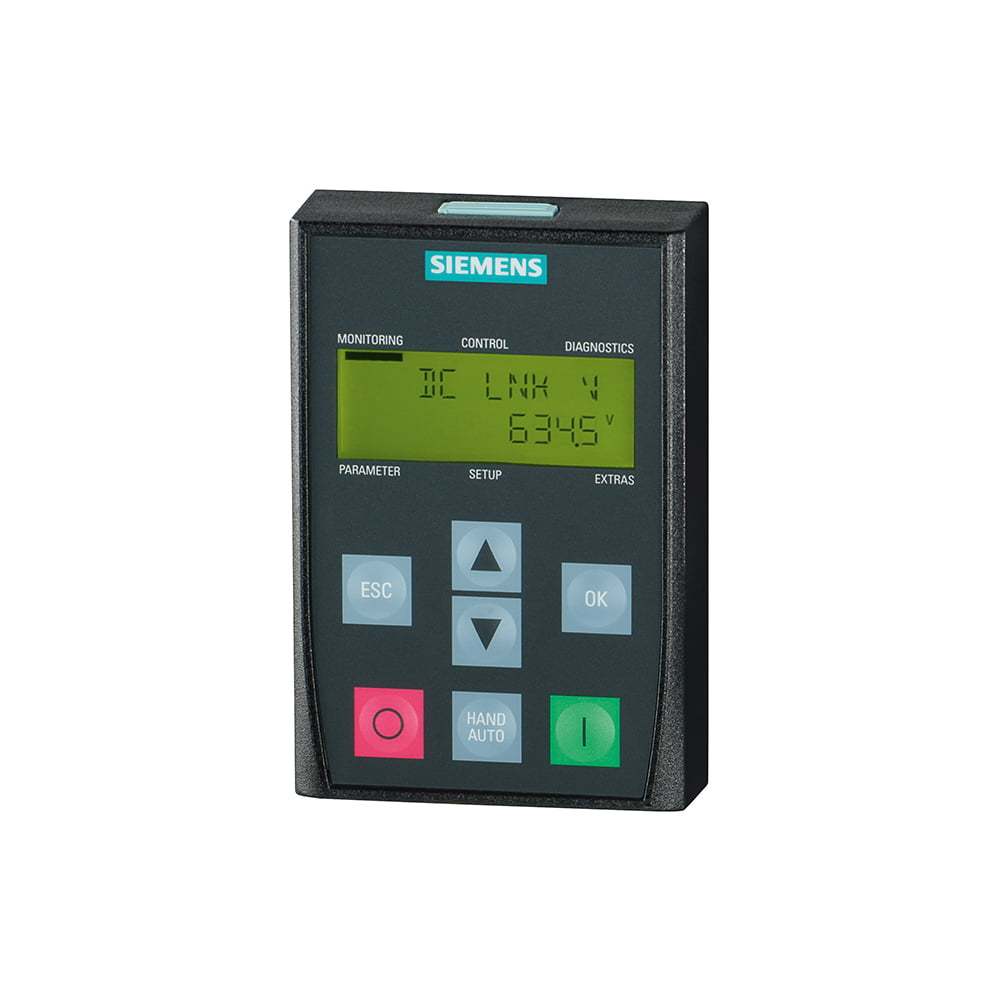

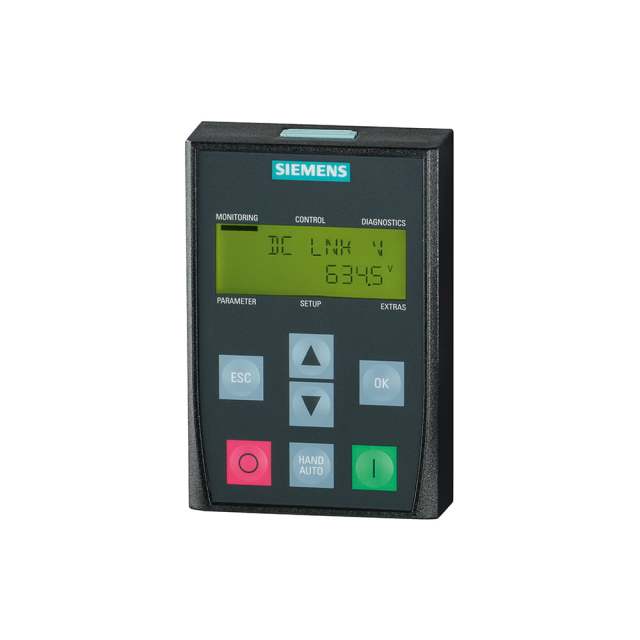

6SL3255-0AA00-4CA1 (BOP-2) is a standard human-machine interface (HMI) accessory for Siemens SINAMICS G120 series inverters (including G120C/G120P/G120D). It enables local commissioning, parameter configuration, real-time monitoring and manual operation of the drive without a PC.
Key Specifications
- Brand: Siemens
- Model: 6SL3255-0AA00-4CA1
- Product Type: Basic Operator Panel (BOP-2)
- Compatibility: SINAMICS G120C/G120P/G120D/G110D series inverters
- Display: 2-line monochrome LCD (simultaneous display of parameter and value)
- Protection Grade: IP55 (front) / UL Type 12
- Dimensions: 70 mm (W) × 106.85 mm (H) × 19.6 mm (D)
- Net Weight: 0.14 kg
- Operating Temperature: 0 ~ 50°C
- Storage Temperature: -40 ~ 70°C
- Mounting: Direct mounting on inverter or cabinet door mounting (with bracket)
- Communication: Connects to inverter via internal interface
Features & Benefits
- Intuitive Operation: Menu-guided 2-line LCD for easy parameter setup and diagnostics
- Dual Control Modes: Switch between automatic and manual operation with one key
- Real-time Monitoring: Displays speed, current, voltage, temperature and fault codes
- Parameter Filtering: Simplified view for basic commissioning, no manual required
- Robust & Durable: IP55 front panel for harsh industrial environments
- Easy Installation: Plug-and-play connection, supports cabinet door mounting
Applications
Local operation and maintenance of SINAMICS G120 series inverters in fans, pumps, conveyors, packaging machines, textile machinery and general industrial automation systems.
