Product Overview

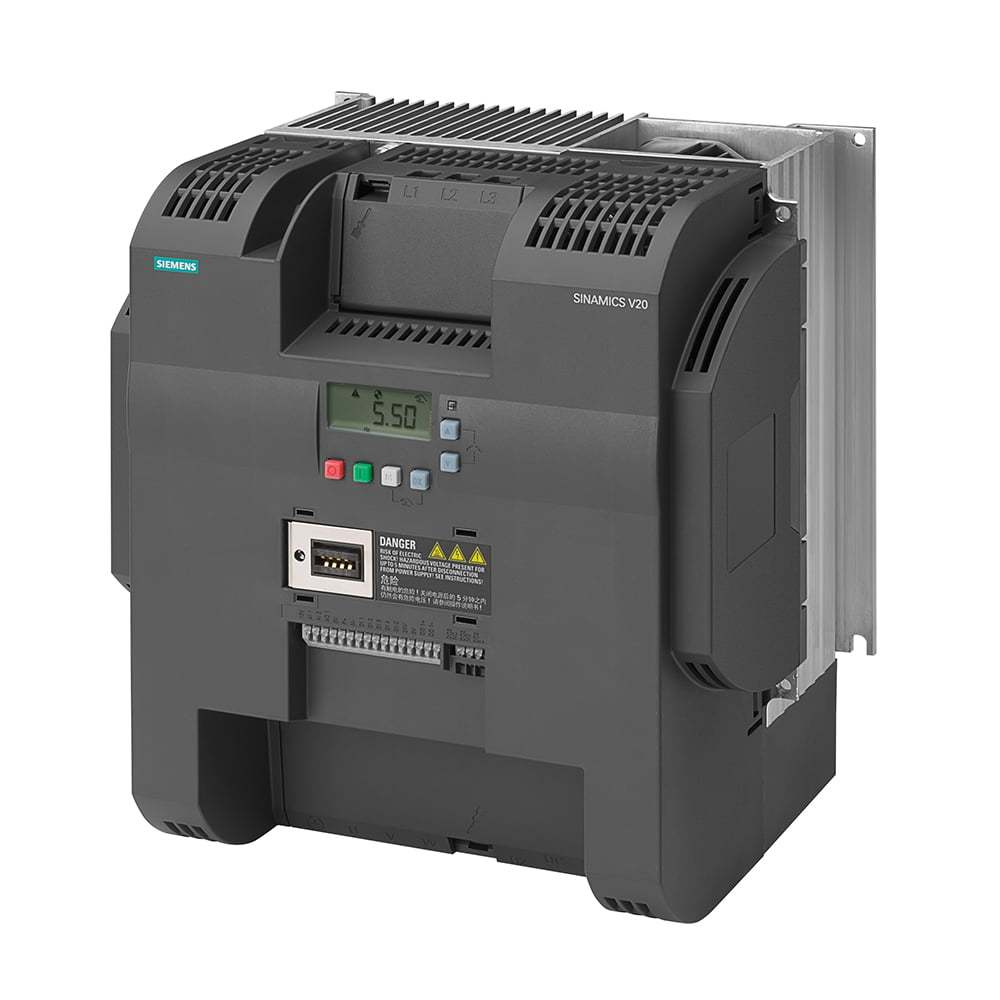

6SL3210-5BE32-2UV0 is a compact, cost-effective drive in the Siemens SINAMICS V20 family for standard variable-speed applications, with dual power ratings for heavy/light duty.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V20
- Model: 6SL3210-5BE32-2UV0
- Rated Power: 22kW (30HP, High Overload HO) / 30kW (40HP, Low Overload LO)
- Input Voltage: 380–480V 3-phase AC (-15% to +10%)
- Input Frequency: 47–63Hz
- Output Current: 45A (HO) / 60A (LO)
- Output Frequency: 0–550Hz
- Overload Capacity: 150% rated current for 60s (HO); 110% rated current for 60s (LO)
- Protection Class: IP20 (UL open type)
- Cooling Type: External fan (FSE frame)
- Control Mode: V/F control (V²/f, ECO energy-saving)
- I/O Interface: 4 DI, 2 DO, 2 AI, 1 AQ
- Communication: USS/Modbus RTU (RS-485)
- Built-in BOP: Yes
- Integrated Braking Unit: Yes
- Dimensions (W×H×D): 244×265×209mm
- Weight: Approx. 6.45kg
Features & Benefits
- Dual Power Rating: 22kW (HO)/30kW (LO) covers heavy/light duty applications
- FSE Compact Frame: Optimized for cabinet installation
- Integrated Braking Unit: Enables fast stopping and frequent start/stop cycles
- High Efficiency: ECO mode reduces energy use for fans/pumps
- Easy Commissioning: Built-in BOP and application macros simplify setup
- Robust & Reliable: Conformal-coated PCB, wide voltage tolerance
- Unfiltered Design: Suitable for systems with external EMC filters
Applications
Fans, water pumps, conveyor belts, packaging machines, textile machinery, machine tools, and general industrial automation drive systems.
