Product Overview

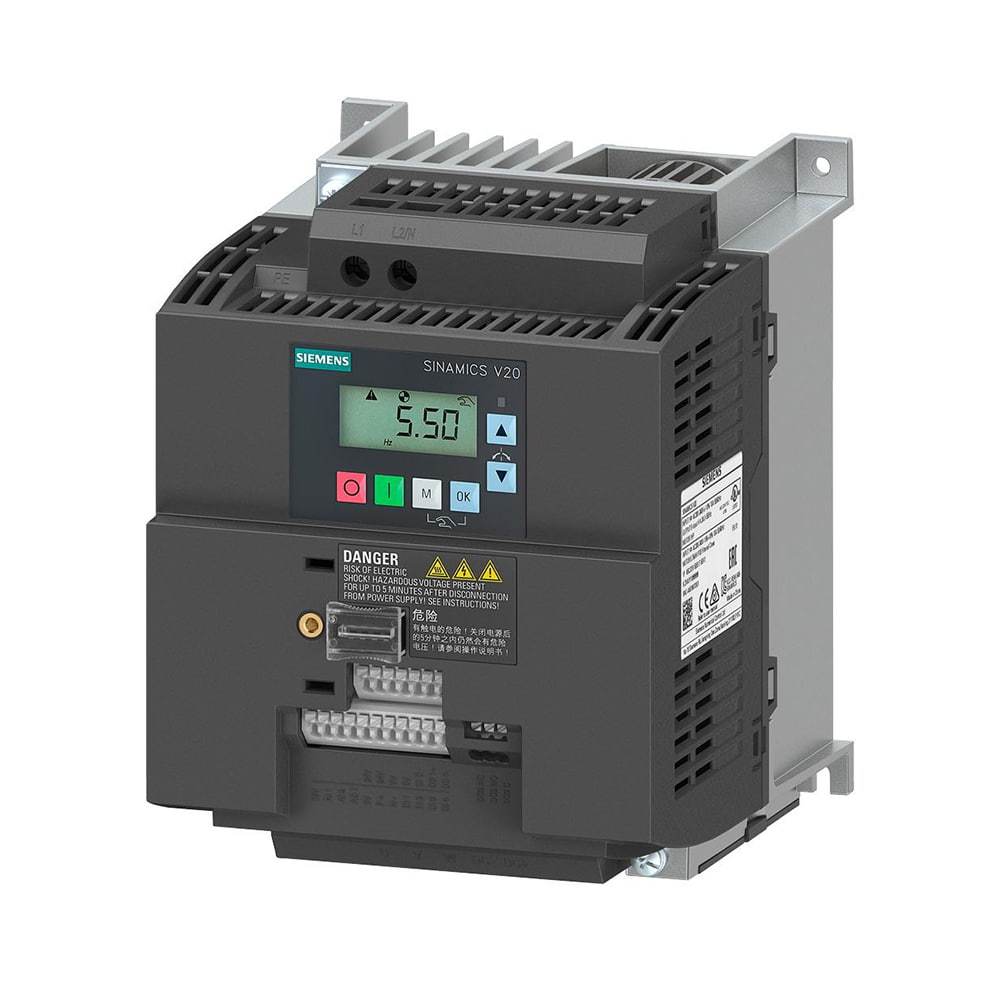

6SL3210-5BE25-5UV1 is a compact, cost-effective drive in the Siemens SINAMICS V20 family, updated successor of 6SL3210-5BE25-5UV0, for standard variable-speed applications.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V20
- Model: 6SL3210-5BE25-5UV1
- Rated Power: 5.5kW (7.5HP)
- Input Voltage: 380–480V 3-phase AC (-15% to +10%)
- Input Frequency: 47–63Hz
- Output Current: 11A (rated)
- Output Frequency: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20 (UL open type)
- Cooling Type: External fan (FSC frame)
- Control Mode: V/F control (V²/f, ECO energy-saving)
- I/O Interface: 4 DI, 2 DO, 2 AI, 1 AQ
- Communication: USS/Modbus RTU (RS-485)
- Built-in BOP: Yes
- Integrated Braking Unit: Yes
- Dimensions (W×H×D): 184×182×169mm
- Weight: Approx. 2.4kg
Features & Benefits
- FSC Compact Frame: 184mm width, optimized for cabinet installation
- Integrated Braking Unit: Enables fast stopping and frequent start/stop cycles
- High Efficiency: ECO mode reduces energy use for fans/pumps
- Easy Commissioning: Built-in BOP and application macros simplify setup
- Robust & Reliable: Conformal-coated PCB, wide voltage tolerance
- Unfiltered Design: Suitable for systems with external EMC filters
Applications
Fans, water pumps, conveyor belts, packaging machines, textile machinery, machine tools, and general industrial automation drive systems.
