Product Overview

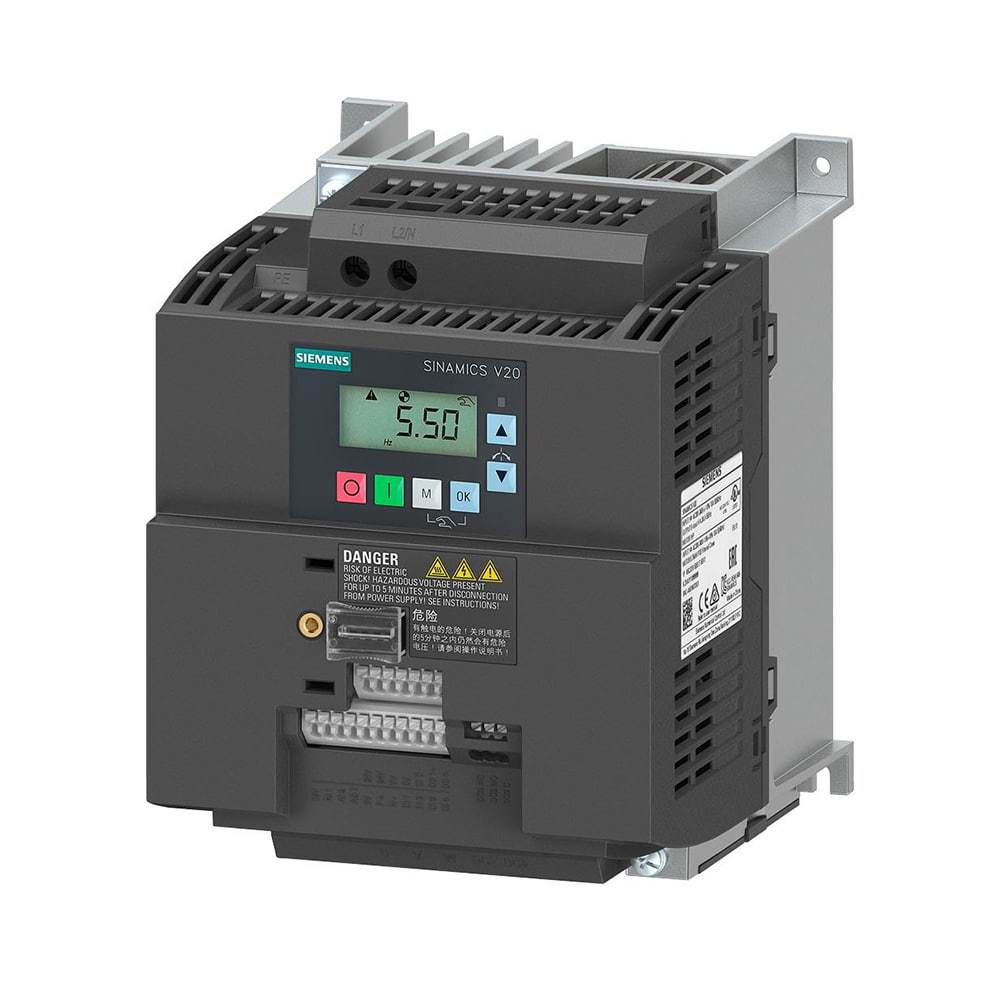

6SL3210-5BE24-0UV1 is a compact, cost-effective drive in the Siemens SINAMICS V20 family, serving as the updated successor model of 6SL3210-5BE24-0UV0。 It is designed for standard variable-speed applications with reliable performance.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V20
- Model: 6SL3210-5BE24-0UV1
- Rated Power: 4kW (5.0HP)
- Input Voltage: 380–480V 3-phase AC (-15% to +10%)
- Input Frequency: 47–63Hz
- Output Current: 8.8A (rated)
- Output Frequency: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20 (UL open type)
- Cooling Type: External fan (FSB frame)
- Control Mode: V/F control (V²/f, ECO energy-saving)
- I/O Interface: 4 DI, 2 DO, 2 AI, 1 AQ
- Communication: USS/Modbus RTU (RS-485)
- Built-in BOP: Yes
- Integrated Braking Unit: Yes
- Dimensions (W×H×D): 140×160×165mm
- Weight: Approx. 1.6kg
Features & Benefits
- Compact FSB Frame: 140mm width, space-saving for cabinet installation
- Integrated Braking Unit: Supports fast stop and frequent start/stop cycles
- High Energy Efficiency: ECO mode optimizes energy use for fans/pumps
- Easy Commissioning: Built-in BOP and application macros reduce setup time
- Robust Design: Conformal-coated PCB, wide voltage tolerance
- Unfiltered Design: Suitable for systems with external EMC filters
Applications
Fans, water pumps, conveyor belts, packaging machines, textile machinery, machine tools, and general industrial automation drive systems。
