Product Overview

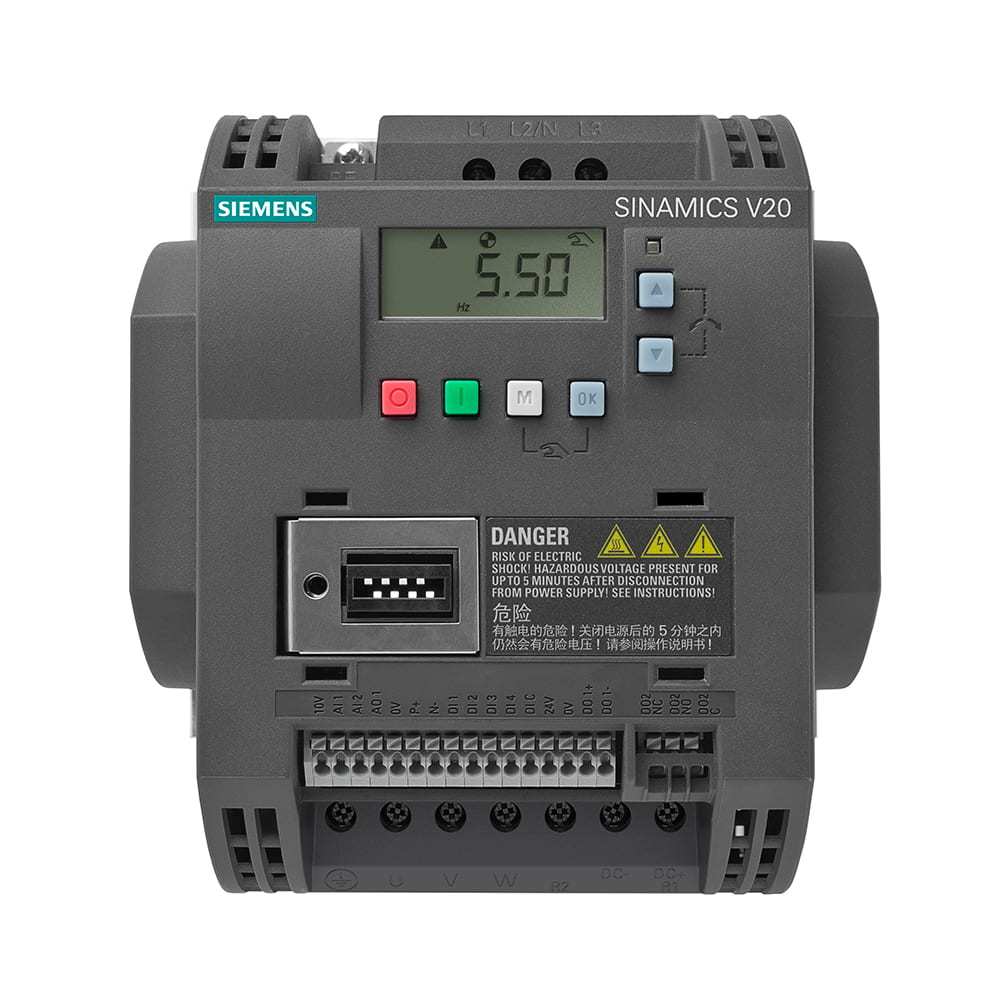

6SL3210-5BE21-5UV1 is a high-performance compact drive in the Siemens SINAMICS V20 series, designed for standard industrial variable speed applications. It features an integrated braking unit, compact structure, and easy commissioning.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V20
- Model: 6SL3210-5BE21-5UV1
- Rated Power: 1.5kW (2.0HP)
- Input Voltage: 380–480V 3-phase AC (-15% to +10%)
- Input Frequency: 47–63Hz
- Output Current: 4.1A (rated)
- Output Frequency: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20 (UL open type)
- Cooling Type: Natural cooling
- Control Mode: V/F control (V²/f, ECO energy-saving)
- I/O Interface: 4 DI, 2 DO, 2 AI, 1 AQ
- Communication: USS/Modbus RTU
- Built-in BOP: Yes
- Integrated Braking Unit: Yes
- Dimensions (W×H×D): 90×166×145.5mm
- Weight: Approx. 0.99kg
Features & Benefits
- Compact & Space-saving: 90mm width, supports 0mm side-by-side installation
- Integrated Braking Unit: Ideal for quick stop and frequent start/stop applications
- High Energy Efficiency: ECO mode reduces energy consumption for fans/pumps
- Easy Commissioning: Built-in BOP and application macros simplify setup
- Strong Anti-interference: Complies with industrial EMC standards for harsh environments
- Comprehensive Protection: Overload, overvoltage, undervoltage, short circuit, and overheating protection
Applications
Fans, water pumps, conveyor belts, packaging machines, textile machinery, machine tools, and general industrial automation drive systems.
