Product Overview

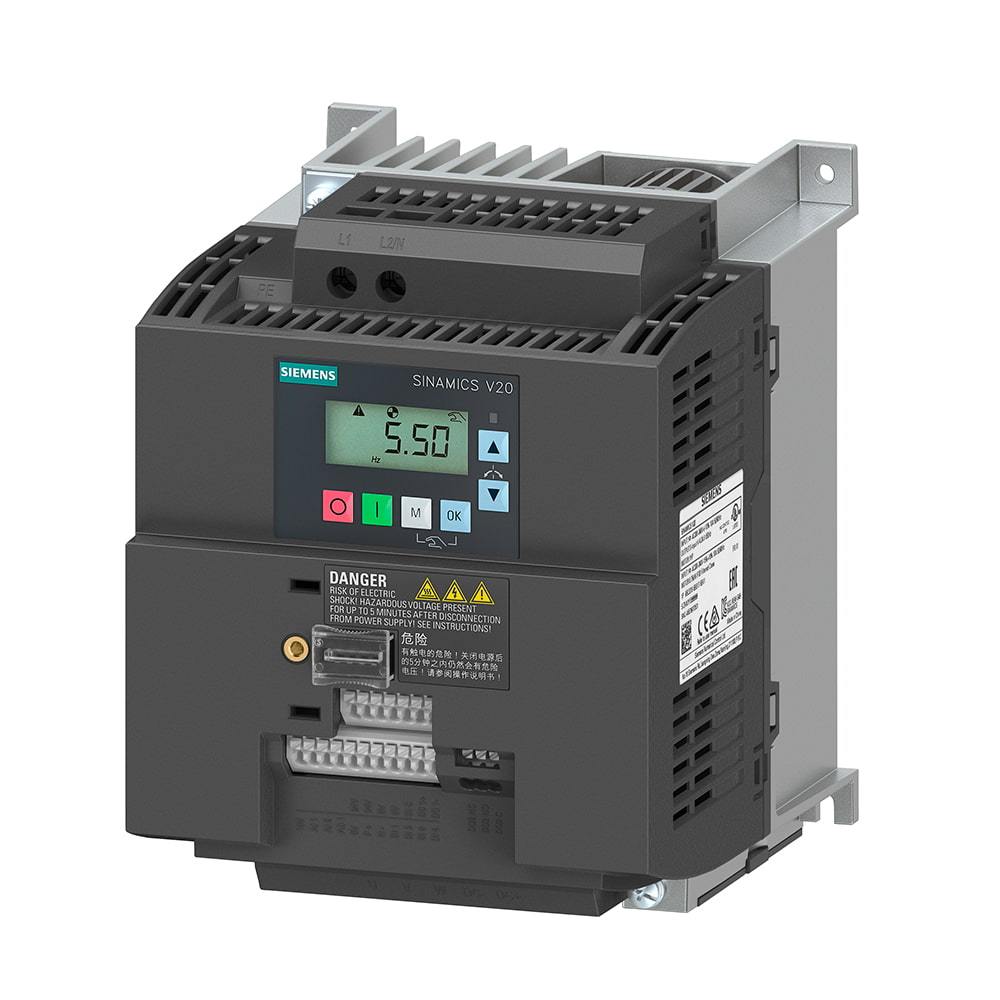

6SL3210-5BB23-0UV1 is a compact and cost-effective drive from Siemens SINAMICS V20 series. It is specially developed for general low-power variable speed applications, featuring stable performance, simple operation and wide adaptability.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V20
- Model: 6SL3210-5BB23-0UV1
- Rated Power: 3kW
- Input Voltage: 200–240V 1 Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 13.6A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20
- Cooling Method: Forced air cooling by external fan
- Control Mode: V/F control, V²/f control, ECO energy saving mode
- Communication: USS, Modbus RTU
- Built-in Panel: BOP basic operator panel
- Integrated Braking Unit: No
- Frame Size: AD frame
- Dimension (W×H×D): 136×176.5×160mm
- Weight: Approx. 1.9kg
Features & Benefits
- Space-saving compact structure, suitable for limited cabinet installation
- Single-phase AC power supply, widely applicable to light industrial equipment
- Energy-saving ECO mode to reduce operating costs for fan and pump loads
- Simple parameter setting and fast on-site commissioning
- Strong anti-interference ability to adapt to complex industrial environments
- Complete electronic protection functions to avoid equipment damage
- Durable coated PCB design for long-term stable operation
Applications
Widely used in small fans, water pumps, conveyor lines, packaging machinery, textile equipment and other general industrial automation drive occasions.
