Product Overview

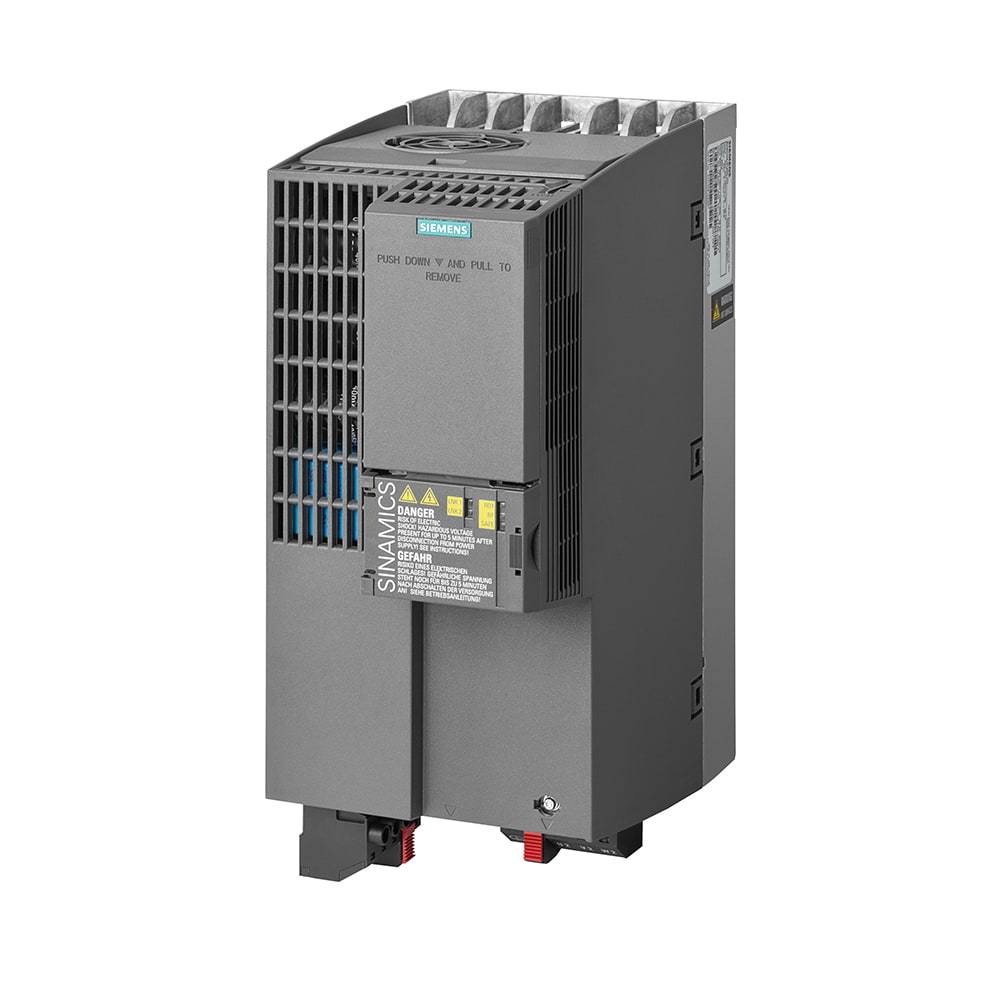

6SL3210-1KE22-6UF1 is a compact, high-power integrated drive for standard industrial applications. It features built-in PROFINET, reliable vector control and compact FSC frame size, suitable for high-power fan, pump and conveyor systems.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE22-6UF1
- Rated Power: 11kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 24A
- Output Frequency: 0–550Hz
- Overload: 150% for 60s
- Protection Class: IP20
- Cooling Type: Forced Air Cooling
- Control Mode: V/F Control, Vector Control, ECO Mode
- Communication: PROFINET
- Brake Unit: Not integrated
- EMC Filter: Unfiltered
- Frame Size: FSC
- Dimensions (W×H×D): 140 × 295 × 205 mm
- Weight: 5.2kg
Features & Benefits
- Integrated all-in-one design with compact FSC frame
- Native PROFINET interface for industrial Ethernet connection
- High-performance vector control for stable high-power operation
- Complete electrical protection for heavy-duty working conditions
- Fast commissioning and flexible parameter setting
- Suitable for long-term continuous industrial operation
Applications
Large conveyor lines, industrial fans, water pump stations, mixing machinery, processing equipment and general high-power automation systems.
