Product Overview

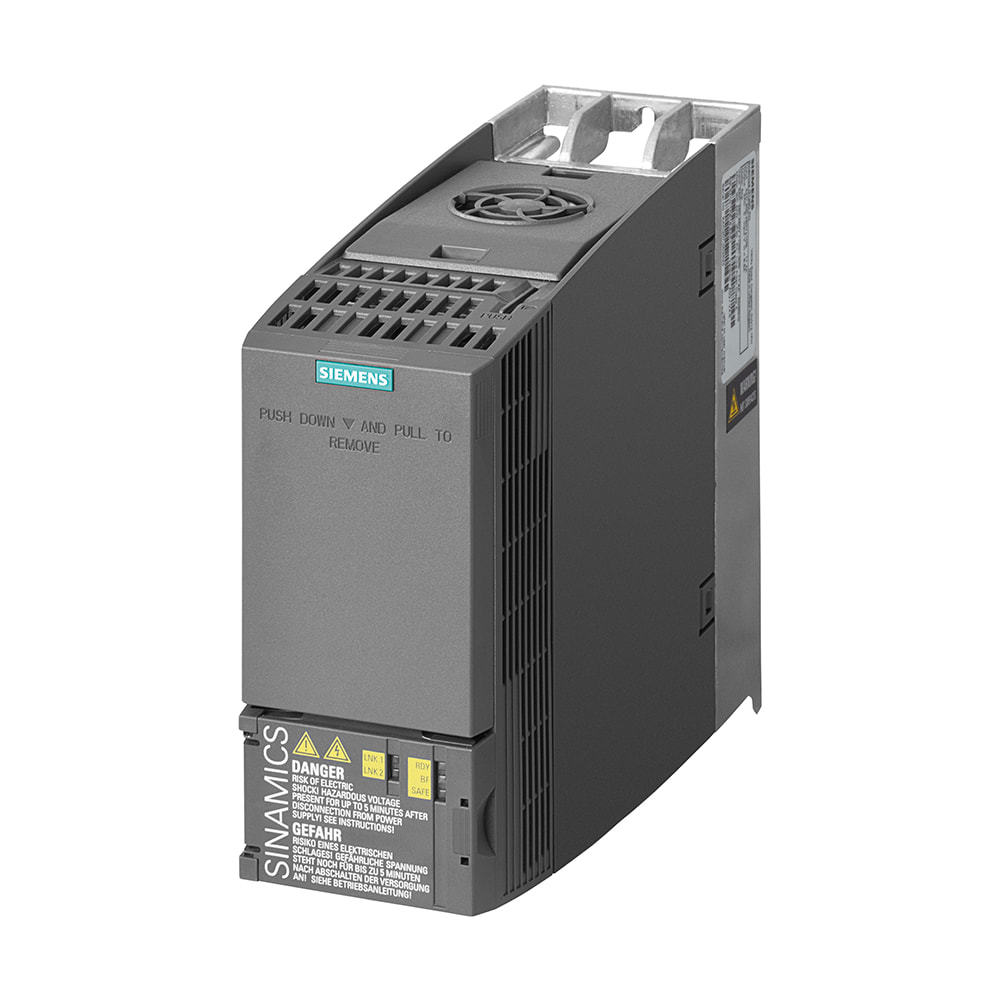

6SL3210-1KE21-7UF1 is a high-performance compact integrated drive from Siemens SINAMICS G120C series. It comes with onboard PROFINET communication, powerful vector control and high load capacity, ideal for medium-power industrial variable speed and automation applications.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE21-7UF1
- Rated Power: 7.5kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 16.5A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20
- Cooling Type: Forced Air Cooling
- Control Mode: V/F Control, Vector Control, ECO Energy-saving Mode
- Communication: PROFINET (PN)
- Integrated Brake Unit: No
- EMC Filter: Unfiltered
- Frame Size: FSAD
- Dimensions (W×H×D): 196X100X203 mm
- Weight: Approx. 2.7 kg
Features & Benefits
- Compact integrated structure, suitable for limited cabinet installation space
- Built-in PROFINET interface, easy connection with Siemens PLC and industrial Ethernet
- High-performance vector control provides strong low-speed torque
- Complete protection functions against overvoltage, undervoltage, overload, short circuit and overheat
- Simple parameter configuration and fast on-site commissioning
- Rugged design for stable continuous operation in harsh industrial environments
Applications
Industrial fans, water pumps, conveyor systems, mixing equipment, packaging machinery, textile machines and medium-duty automated production lines.
