Product Overview

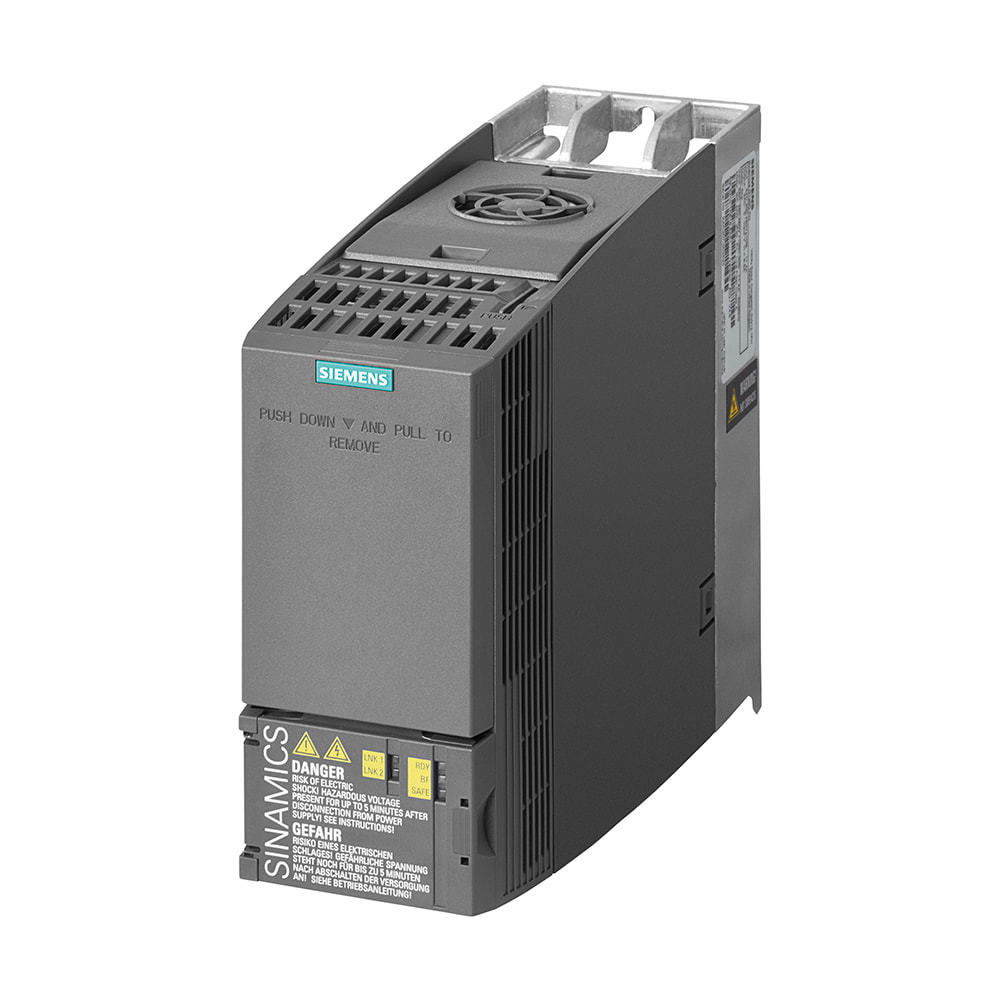

The 6SL3210-1KE18-8UF1 is an all-in-one compact drive of Siemens SINAMICS G120C series. It adopts FSA frame size with onboard PROFINET communication. Featuring compact structure, easy commissioning and stable performance, it is widely suitable for fans, pumps, conveyor systems and light industrial equipment.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE18-8UF1
- Rated Power: 3.7kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 8.8A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20
- Cooling Type: Natural Cooling
- Control Mode: V/F control, Sensorless vector control, ECO energy-saving mode
- Communication: PROFINET
- Integrated Brake Unit: No
- EMC Filter: Unfiltered
- Frame Size: FSA
- Dimensions (H×W×D): 196 × 73 × 200 mm
- Weight: 2.1 kg
Features & Benefits
- Compact FSA frame design, saves control cabinet installation space
- Onboard PROFINET port, seamless connection with Siemens PLC and industrial Ethernet
- High-performance sensorless vector control, stable low-speed torque output
- Complete protection against overvoltage, undervoltage, overload, short circuit and overheating
- Simple parameter setting and fast on-site commissioning
- Industrial grade quality, supports long-term continuous operation
Applications
Industrial conveyor lines, fan and pump systems, packaging machinery, light industrial automation and general medium-duty transmission equipment.
