Product Overview

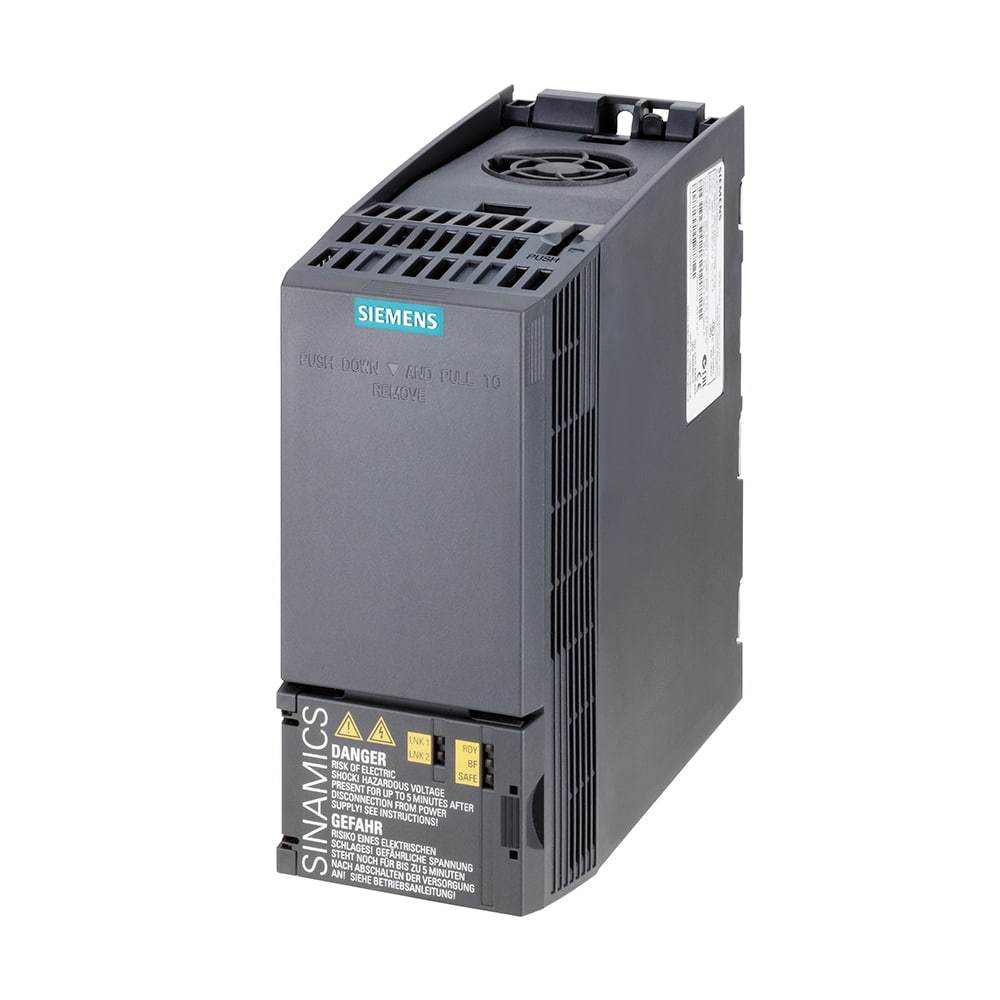

SINAMICS G120C ultra-compact inverter with FSAA frame. Equipped with built-in PROFINET interface, sensorless vector control and high cost performance, it is widely used for fans, pumps and small automation machines.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE15-8UF2
- Rated Power: 2.2kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 5.6A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60s
- Protection Class: IP20
- Cooling Type: Natural Cooling
- Control Mode: V/F Control, Vector Control, ECO Energy-saving Mode
- Communication: PROFINET
- Integrated Brake Unit: No
- EMC Filter: Unfiltered
- Frame Size: FSAA
- Dimensions (H×W×D): 173 × 73 × 160 mm
- Weight: 1.2 kg
Features & Benefits
- Mini FSAA ultra-compact frame, save cabinet installation space
- Onboard PROFINET for industrial Ethernet connection
- Stable sensorless vector control for steady motor operation
- Complete electrical protection against overload, overvoltage and overheat
- Simple parameter setting and fast on-site commissioning
- Lightweight and compact for flexible installation
Applications
Industrial fans, water pumps, small conveyors, packaging equipment and light industrial automated systems.
