Product Overview

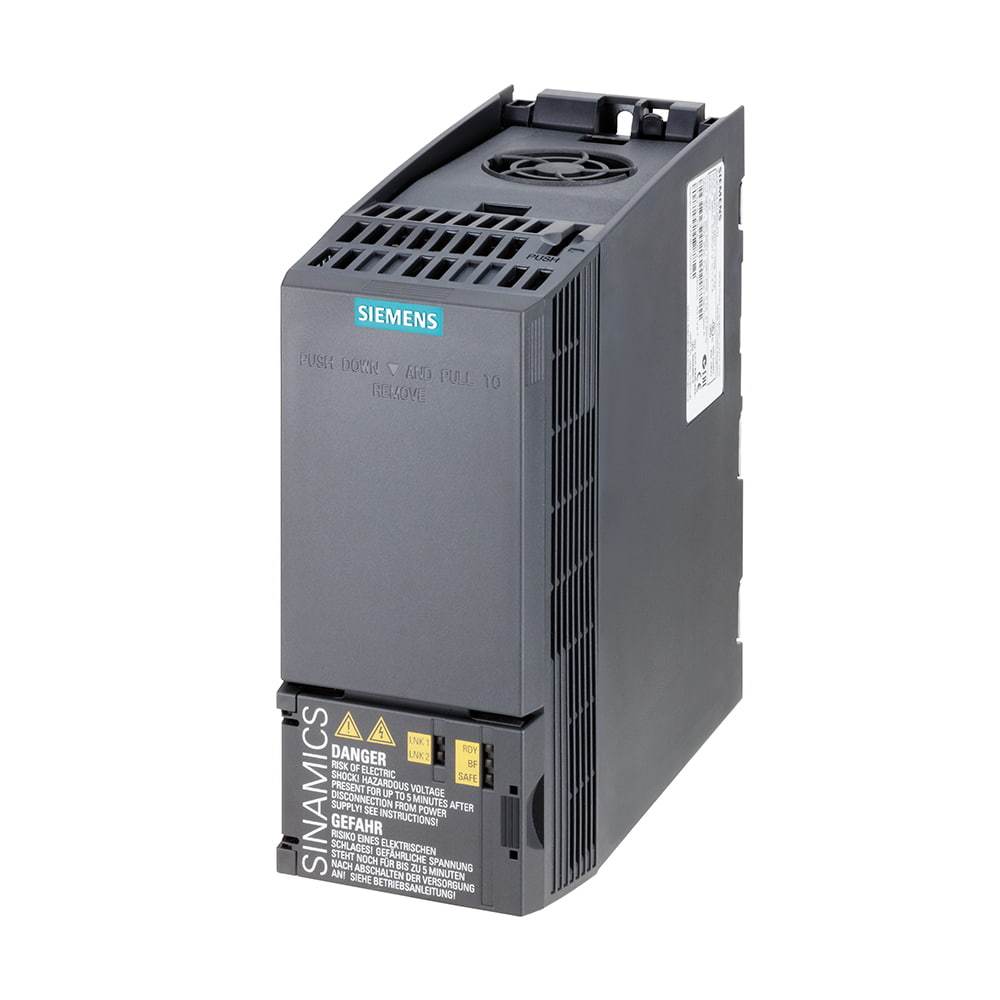

The SINAMICS G120C compact inverter adopts FSAA frame size. With native PROFINET communication, sensorless vector control and compact structure, it is widely used for fans, pumps, conveyors and general industrial automated equipment.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE14-3UF2
- Rated Power: 1.5kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 3.8A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60 seconds
- Protection Class: IP20
- Cooling Type: Natural Cooling
- Control Mode: V/F Control, Vector Control, ECO Energy-saving Mode
- Communication: PROFINET
- Integrated Brake Unit: No
- EMC Filter: Unfiltered
- Frame Size: FSAA
- Dimensions (H×W×D): 173 × 73 × 160 mm
- Weight: 1.2 kg
Features & Benefits
- Ultra-compact FSAA frame, saves control cabinet installation space
- Onboard PROFINET interface for direct industrial Ethernet connection
- Stable sensorless vector control with reliable low-speed torque
- Complete protection against overvoltage, undervoltage, overload and overheating
- Simple parameter setting, fast installation and on-site commissioning
- Compact and durable design for long-term continuous operation
Applications
Industrial fans, water pumps, small conveyor systems, packaging machinery and light industrial automation equipment.
