Product Overview

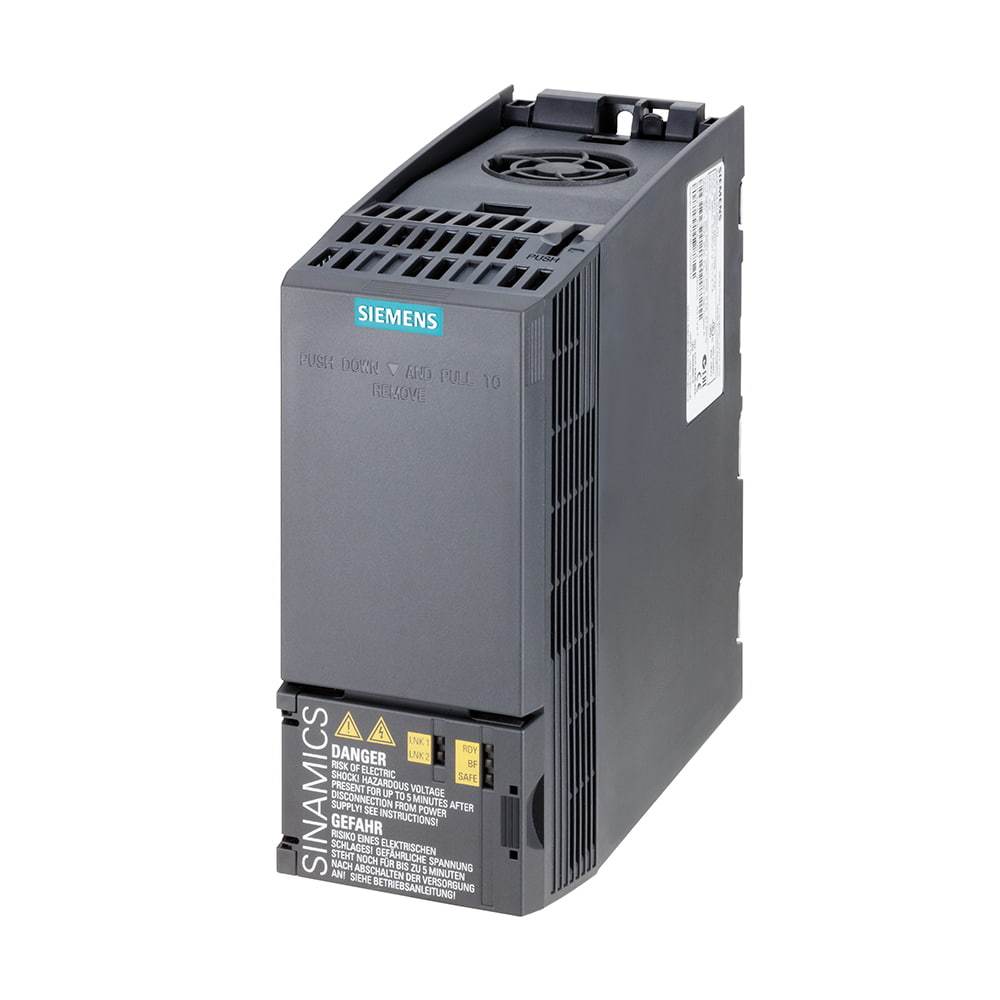

This compact G120C integrated drive adopts FSAA frame size, equipped with native PROFINET communication. It features simple installation, stable vector control and high cost performance, widely used in light industrial automation, fan and pump equipment.
Key Specifications
- Brand: Siemens
- Series: SINAMICS G120C
- Model: 6SL3210-1KE12-3UF2
- Rated Power: 0.75kW
- Input Voltage: 380–480V 3-Phase AC
- Input Frequency: 47–63Hz
- Rated Output Current: 2.3A
- Output Frequency Range: 0–550Hz
- Overload Capacity: 150% rated current for 60s
- Protection Class: IP20
- Cooling Type: Natural Cooling
- Control Mode: V/F Control, Vector Control, ECO Energy-saving Mode
- Communication: PROFINET
- Integrated Brake Unit: No
- EMC Filter: Unfiltered
- Frame Size: FSAA
- Dimensions (H×W×D): 173 × 73 × 160 mm
- Weight: 1.2 kg
Features & Benefits
- Small FSAA compact frame, space-saving for cabinet installation
- Integrated PROFINET port, easily connected to Siemens PLC system
- Reliable vector control, stable torque output at low speed
- Complete overcurrent, overvoltage, overload and overheat protection
- Simple parameter configuration and fast on-site commissioning
- Compact structure, suitable for long-term continuous operation
Applications
Small conveyors, industrial fans, water pumps, packaging machinery and general light-duty industrial equipment.
