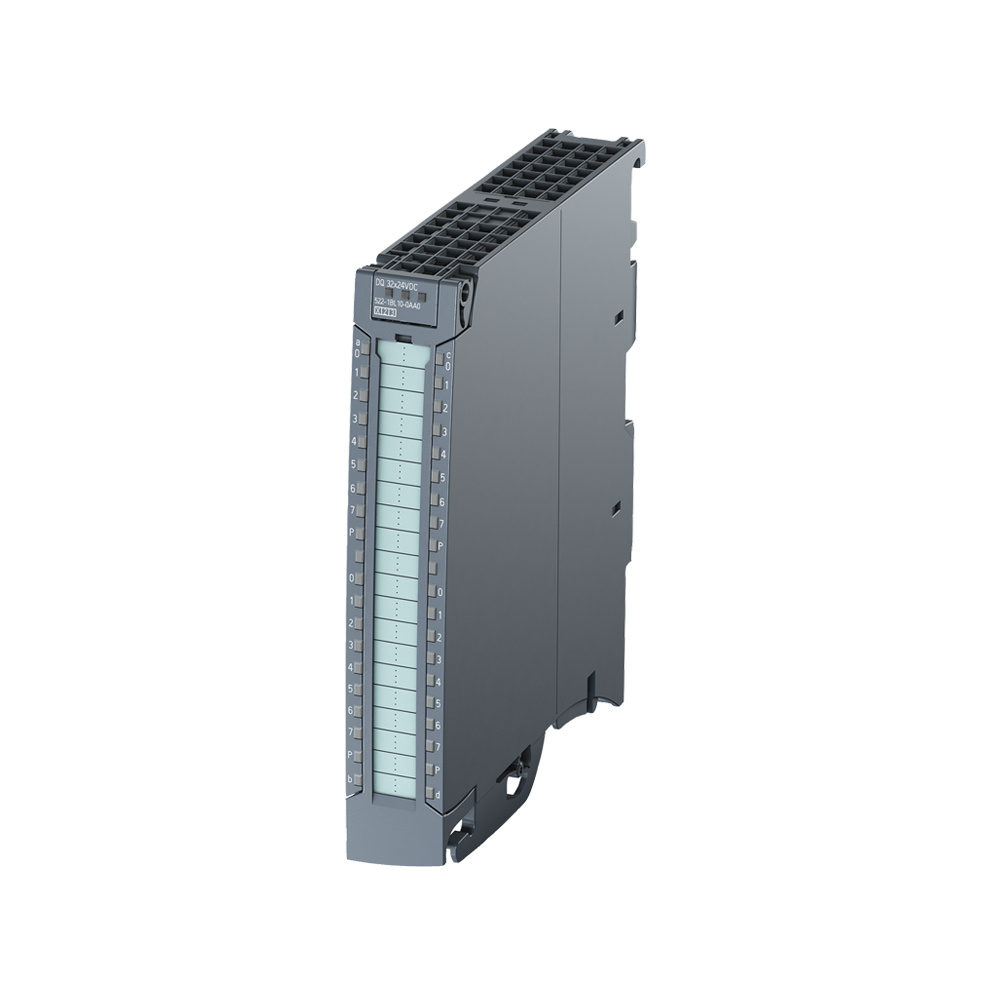

Basic Specifications
- Brand: Siemens
- Model: 6ES7522-1BL10-0AA0
- Series: SIMATIC S7-1500
- Type: Digital Output Module
- Channels: 32 DO
- Rated Voltage: 24V DC
- Output Type: Transistor, Sourcing output
- Rated Current per Channel: 0.5A
- Isolation: Galvanic isolation per group
- Protection: Overload, short-circuit protection
- Supply Voltage: 24V DC
- Protection Class: IP20
- Operating Temperature: 0°C ~ +60°C
- Mounting: S7-1500 standard DIN rail
Features & Benefits
- 32 high-density output channels save cabinet space
- Transistor output supports high-speed frequent switching
- Built-in overload and short-circuit protection ensures stable operation
- Group isolation design reduces on-site electromagnetic interference
- Support module self-diagnostics for easy troubleshooting
- Fully compatible with S7-1500 CPU, configured easily via TIA Portal
Applications
Solenoid valve control, intermediate relay drive, signal lamp indication, conveyor system, packaging machinery, general industrial automation actuator output control
