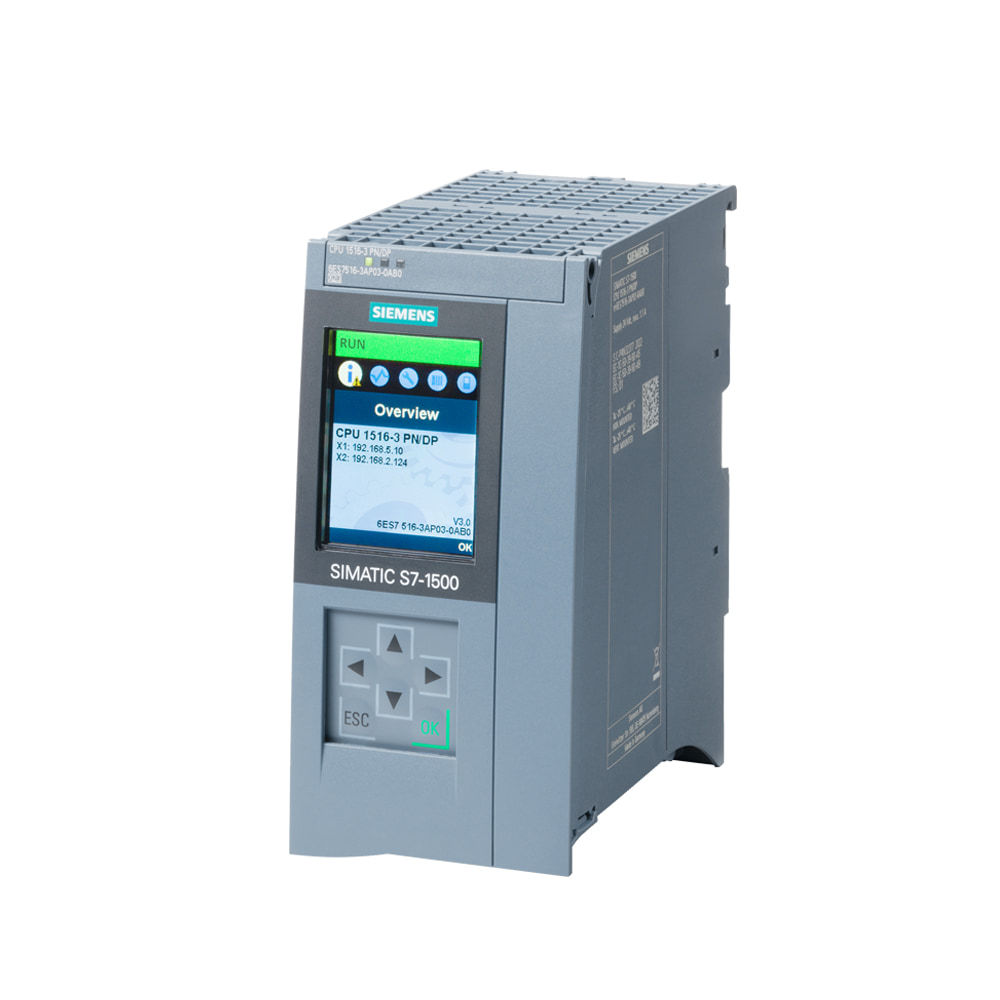

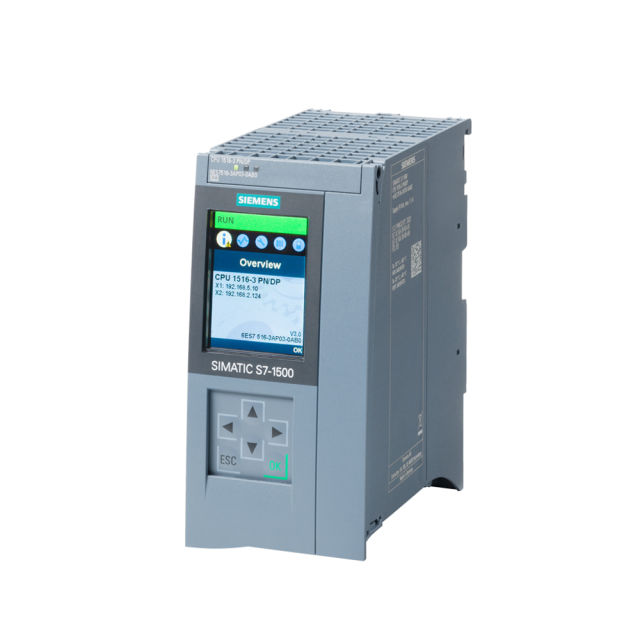

Basic Specifications
- Brand: Siemens
- Model: 6ES7516-3AP03-0AB0
- Series: SIMATIC S7-1500
- CPU Type: CPU 1516-3 PN/DP
- Work Memory: Program 2 MB，Data 8 MB
- Execution Speed: Bit instruction 4 ns
- Communication Interfaces:
- PN1: PROFINET IRT 2-port switch
- PN2: Independent PROFINET RT interface
- DP: PROFIBUS DP master/slave
- Load Memory: Must use S7-1500 dedicated memory card
- Power Supply: 24V DC
- Protection Class: IP20
- Operating Temperature: 0℃ ~ +60℃
- Mounting: DIN rail
Control & Interface
- Programming: TIA Portal full integrated programming
- Network Support: PROFINET IRT/RT, TCP/IP, S7 communication, PROFIBUS DP
- Expansion: Support full range S7-1500 module expansion, large I/O capacity
- Display & Operation: Onboard LCD display and physical keys, local parameter setting and diagnosis
- Synchronous Mode: Support equidistant real-time cycle, suitable for motion control
Features & Benefits
- Three-in-one PN+DP multi-interface, compatible with new Ethernet and old PROFIBUS equipment
- Larger program/data memory, support complex algorithm, recipe and data logging
- 4ns ultra-high execution speed, meet multi-axis linkage and high real-time requirements
- Onboard 2-port PN switch, save external switch cost, convenient linear network layout
- Complete system diagnosis function, quick fault location, reduce maintenance downtime
- TIA Portal unified platform, convenient programming, debugging and later upgrade
Applications
Large automated production lines, automotive industry assembly lines, multi-axis motion control systems, process chemical automation, logistics sorting system, large water treatment and central HVAC control projects
