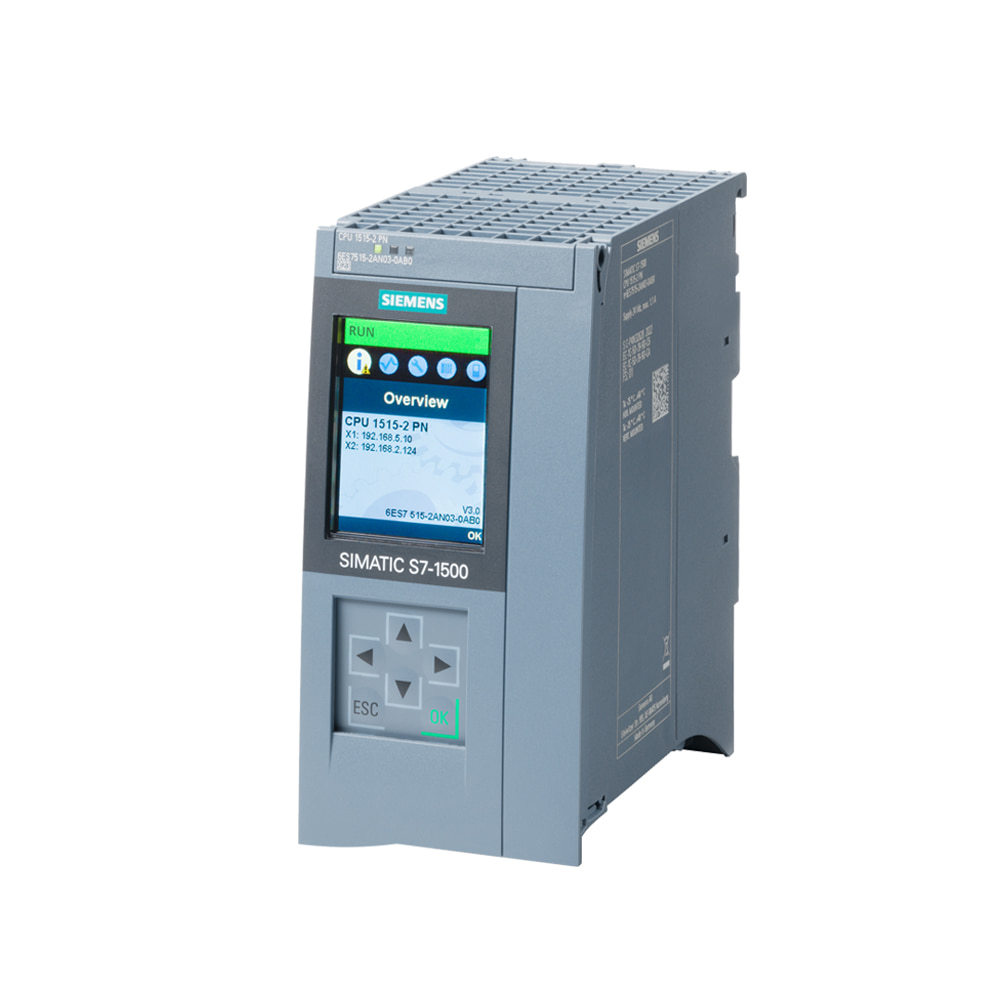

Basic Specifications
- Brand: Siemens
- Model: 6ES7515-2AN03-0AB0
- Series: SIMATIC S7-1500
- CPU Type: CPU 1515-2 PN (FS01, FW V3.0)
- Work Memory: 1 MB (program), 4.5 MB (data)
- Communication:
- Interface 1: PROFINET IRT (2-port switch)
- Interface 2: PROFINET RT (separate IP)
- Performance: 6 ns bit instruction execution
- Programming: TIA Portal V18+ (FW V3.0)
- Load Memory: Requires SIMATIC Memory Card
- Power Supply: 24V DC (19.2~28.8V), 0.83A rated
- Protection Grade: IP20
- Working Temperature: 0℃ ~ +60℃
- Mounting: DIN rail
- Weight: 0.513 kg
Control & Interface
- Display: 6.1 cm screen, 8 keys, 2 mode buttons
- Network: PROFINET IO controller/device, IRT/RT, TCP/IP, S7 communication
- Expansion: Max. 32 modules (single-tier), supports S7-1500 full series modules
- Diagnostics: Integrated system diagnosis, I&M0~I&M3 data
- Isynchronous Mode: Distributed (375µs) / central (1ms)
Features & Benefits
- High-speed 6ns processing for complex logic and motion control
- Dual PROFINET with IRT for real-time motion and RT for standard IO
- Large 5.5MB total work memory for complex programs and data logging
- 2-port switch enables linear topology, reducing network hardware cost
- Separate RT interface for network segmentation, enhancing system security
- TIA Portal integration for unified engineering, diagnostics and maintenance
Applications
Factory automation lines, motion control systems, packaging machinery, process automation, water treatment, HVAC, distributed IO control, medium-to-large PLC projects
