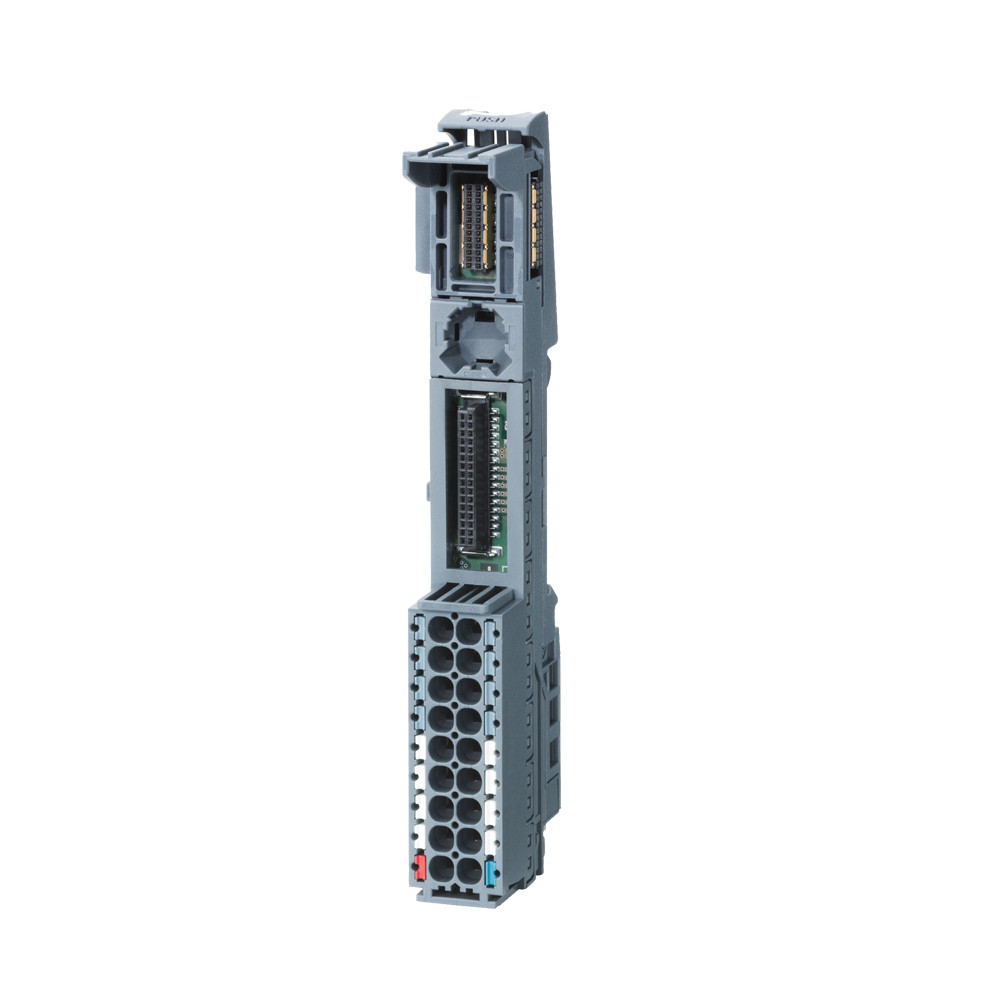

Siemens 6ES7193-6BP00-0BA0 SIMATIC ET200SP Base Unit BU15-P16+A0+2B, Type A0, Push-in Terminals

Basic Specifications

• Brand: Siemens
• Model: 6ES7193-6BP00-0BA0
• Series: SIMATIC ET200SP
• Type: Base Unit (BU15-P16+A0+2B)
• Base Unit Type: A0
• Connection: Push-in terminals (tool-free)
• Process Terminals: 16
• AUX Terminals: 0
• Bridging: Pre-bridged to the left
• Rated Voltage: 24V DC (19.2–28.8V DC)
• Current Capacity:
  • P1/P2 bus: Max. 10A
  • Process terminals: Max. 2A
• Isolation: 707V DC tested
• Compatibility: A0/A1 type I/O modules
• Color Code: CC00–CC09 labels supported
• Protection Class: IP20
• Operating Temperature:
  • Horizontal: -30°C ~ +60°C
  • Vertical: -30°C ~ +50°C
• Dimensions (W×H×D): 15 × 117 × 35 mm
• Weight: Approx. 40g

Features & Benefits

• Tool-Free Wiring: Push-in terminals reduce assembly time and costs.
• Compact Design: 15mm width saves DIN rail space.
• Pre-Bridged: Left bridging simplifies potential distribution.
• High Current Rating: 10A bus capacity supports high I/O density.
• Automatic Encoding: Ensures correct module placement.

Applications

• Mounting ET200SP A0/A1 I/O modules (DI/DO/AI/AO)
• Factory automation distributed I/O
• Process industry control systems
• Building automation & HVAC
• Water/wastewater treatment
