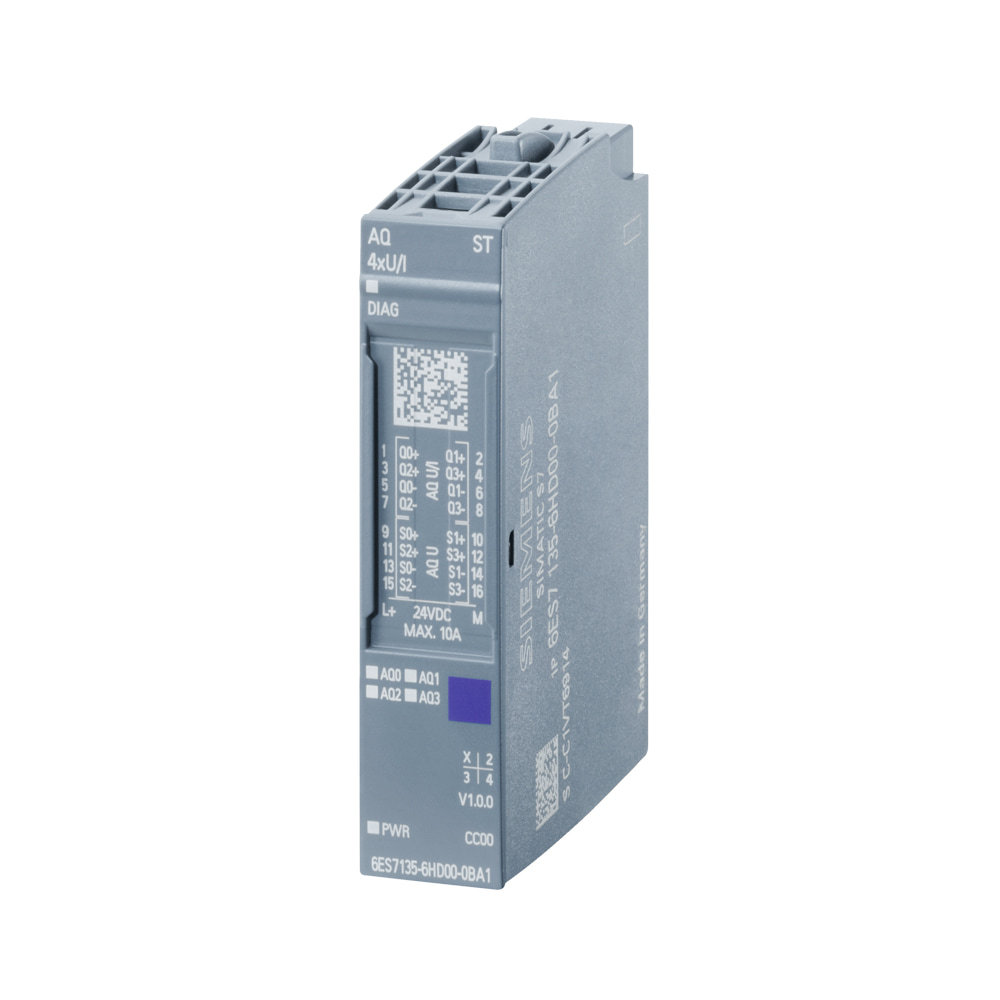

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET200SP Analog Output Module AQ 4xU/I ST

Basic Specifications

• Brand: Siemens
• Model: 6ES7135-6HD00-0BA1
• Series: SIMATIC ET200SP
• Type: Analog Output Module (AQ)
• Channels: 4 AQ (voltage/current, isolated)
• Output Ranges & Resolution:
  • Voltage: ±10V (16-bit), 0–10V (15-bit), ±5V (15-bit), 1–5V (13-bit)
  • Current: ±20mA (16-bit), 0–20mA (15-bit), 4–20mA (14-bit)
• Accuracy: ±0.3% of full scale (typical)
• Load Capacity:
  • Voltage: ≥1kΩ
  • Current: ≤600Ω
• Supply Voltage: 24V DC (19.2–28.8V DC), reverse polarity protected
• Power Loss: Typ. 1.5W; Max. current consumption 150mA
• Isolation: Galvanic isolation between channels and backplane bus (≥500V AC)
• Diagnostics: Load open/short circuit, overrange, internal fault detection
• Compatibility: Base Unit Type A0, A1
• Color Code: CC00
• Protection Class: IP20
• Operating Temperature: -30°C ~ +60°C (vertical: max 50°C)
• Dimensions (W×H×D): 15 × 73 × 58 mm
• Weight: Approx. 32g

Features & Benefits

• Universal Output: Software-configurable voltage/current ranges for maximum flexibility.
• High Precision: 16-bit resolution and ±0.3% accuracy ensure precise actuator control.
• Channel Isolation: Isolation between channels and bus reduces noise and improves safety.
• Robust Diagnostics: Comprehensive fault monitoring enables quick troubleshooting.
• Compact & Fast: 15mm width saves space; push-in terminals enable tool-free wiring.

Applications

• Process industry (control valves, variable frequency drives, regulators)
• Factory automation analog actuator control
• Closed-loop control systems (temperature, pressure, flow)
• Building automation & HVAC
• High-noise industrial environments requiring isolation
