Short Description

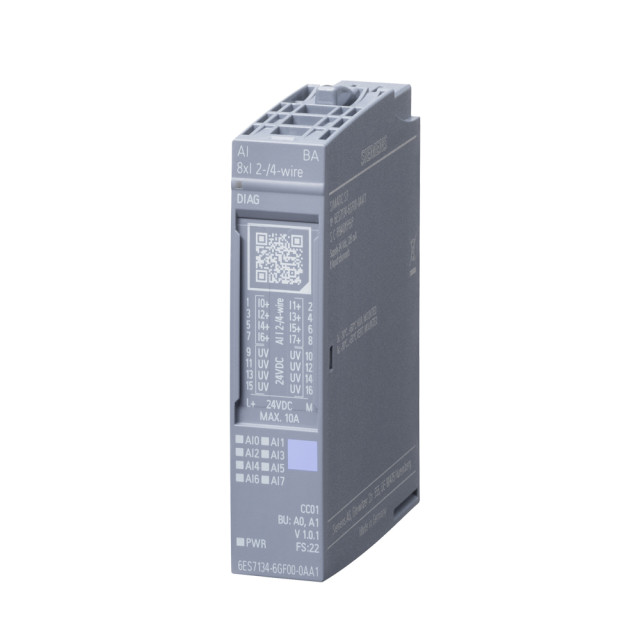

Siemens 6ES7134-6GF00-0AA1 is an 8-channel analog current input module (basic type) for the ET200SP distributed I/O system. It supports 2-wire/4-wire transmitters with 4–20 mA, 0–20 mA, ±20 mA ranges, 16-bit resolution, and ±0.3% accuracy, for high-density, cost-effective analog signal acquisition.
Basic Specifications
- Brand: Siemens
- Model: 6ES7134-6GF00-0AA1
- Series: SIMATIC ET200SP
- Type: Analog Input Module (AI)
- Channels: 8 AI (current, single-ended)
- Input Ranges & Resolution:
- 4–20 mA: 15 bits
- 0–20 mA: 15 bits
- ±20 mA: 16 bits (with sign)
- Input Resistance: 100 Ω
- Accuracy: ±0.3% of full scale
- Supply Voltage: 24V DC (19.2–28.8V DC), reverse polarity protected
- Sensor Supply: 24V DC, max. 20 mA, short-circuit protected
- Power Loss: Typ. 0.7 W
- Isolation: No galvanic isolation between channels
- Diagnostics: Wire break, short circuit, supply voltage monitoring
- Compatibility: Base Unit Type A0, A1
- Color Code: CC01
- Protection Class: IP20
- Operating Temperature: -30°C ~ +60°C (vertical: max 50°C)
- Dimensions (W×H×D): 15 × 73 × 58 mm
- Weight: Approx. 31 g
Features & Benefits
- High Density: 8 channels in a 15mm width, ideal for high I/O count, space-saving applications.
- Multi-Range Support: Per-channel selection for 2/4-wire and 4–20mA/0–20mA/±20mA.
- Basic Precision: 16-bit resolution with ±0.3% accuracy for standard process applications.
- Integrated Sensor Supply: 24V/20mA transmitter power reduces external wiring.
- Cost-Effective: Basic (BA) type with essential diagnostics, optimized for budget projects.
Applications
- Process industry (pressure, flow, level, temperature transmitters)
- Factory automation high-density analog input
- 2-wire/4-wire current transmitter interfacing
- Building automation & HVAC
- Water/wastewater treatment
