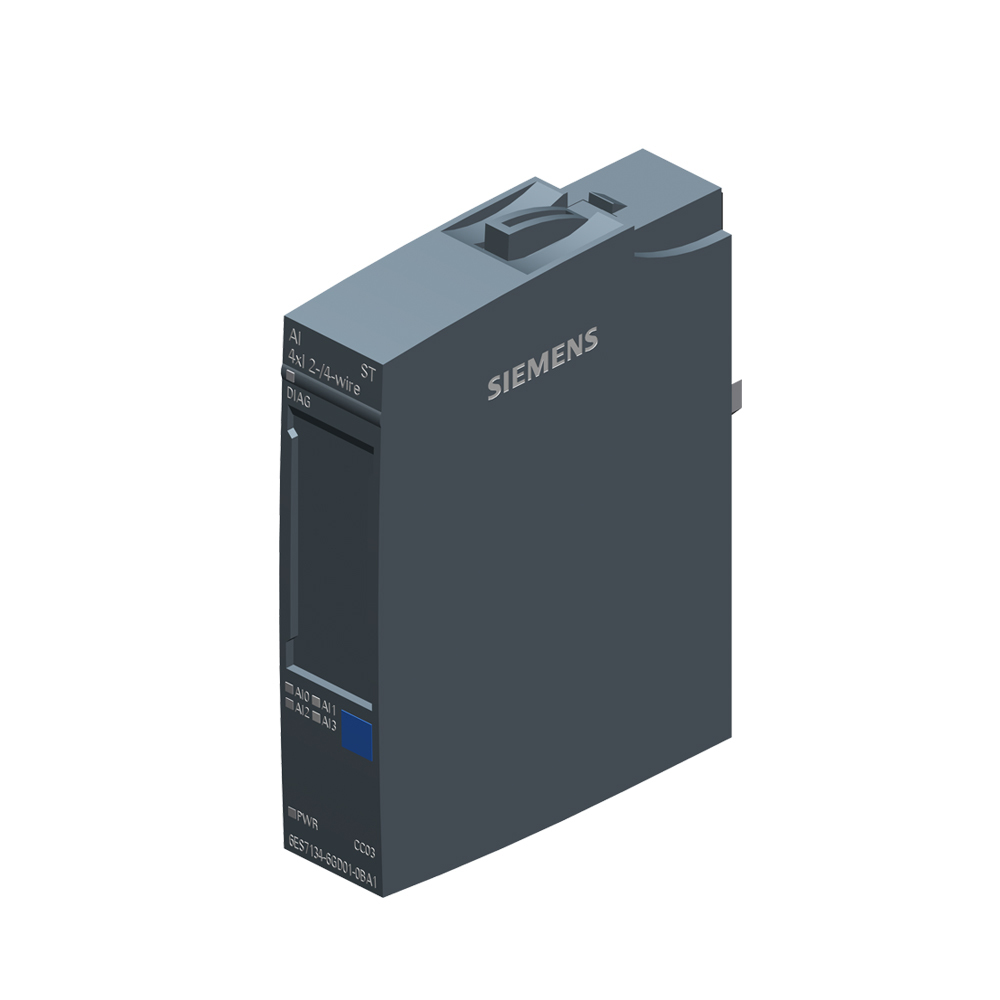

Siemens 6ES7134-6GD01-0BA1 SIMATIC ET200SP Analog Input Module AI 4xI 2-/4-wire ST

Basic Specifications

• Brand: Siemens
• Model: 6ES7134-6GD01-0BA1
• Series: SIMATIC ET200SP
• Type: Analog Input Module (AI)
• Channels: 4 AI (current)
• Input Ranges & Resolution
  • 4–20 mA: 15 bits
  • 0–20 mA: 15 bits
  • ±20 mA: 16 bits (with sign)
• Accuracy: ±0.3% of full scale
• Supply Voltage: 24V DC (19.2–28.8V DC), reverse polarity protected
• Sensor Supply: 24V DC, max. 20 mA (50 mA <10s), short-circuit protected
• Input Current: Max. 37 mA (no sensor supply); destruction limit 50 mA
• Power Loss: Typ. 0.85 W (without sensor supply)
• Isolation: Galvanic isolation from L+ (4-wire mode only)
• Diagnostics: Module-level diagnostics (wire break, short circuit, voltage fault)
• Compatibility: Base Unit Type A0, A1
• Color Code: CC03
• Protection Class: IP20
• Operating Temperature: -30°C ~ +60°C (vertical: max 50°C)
• Dimensions (W×H×D): 15 × 73 × 58 mm
• Weight: Approx. 31 g

Features & Benefits

• Multi-Range Support: 4–20 mA, 0–20 mA, ±20 mA; per-channel 2/4-wire selection
• High Precision: 16-bit resolution and ±0.3% accuracy for reliable measurements.
• Sensor Supply: Integrated 24V/20 mA transmitter power with short-circuit protection.
• Robust Diagnostics: Detects wire breaks, shorts, and supply faults for easy maintenance.
• Compact Design: 15mm width saves cabinet space; push-in terminals enable fast wiring.

Applications

• Process industry (pressure, flow, level, temperature transmitters)
• Factory automation analog signal monitoring
• 2-wire/4-wire current transmitter interfacing
• High-precision data acquisition
• Automotive and packaging machinery
