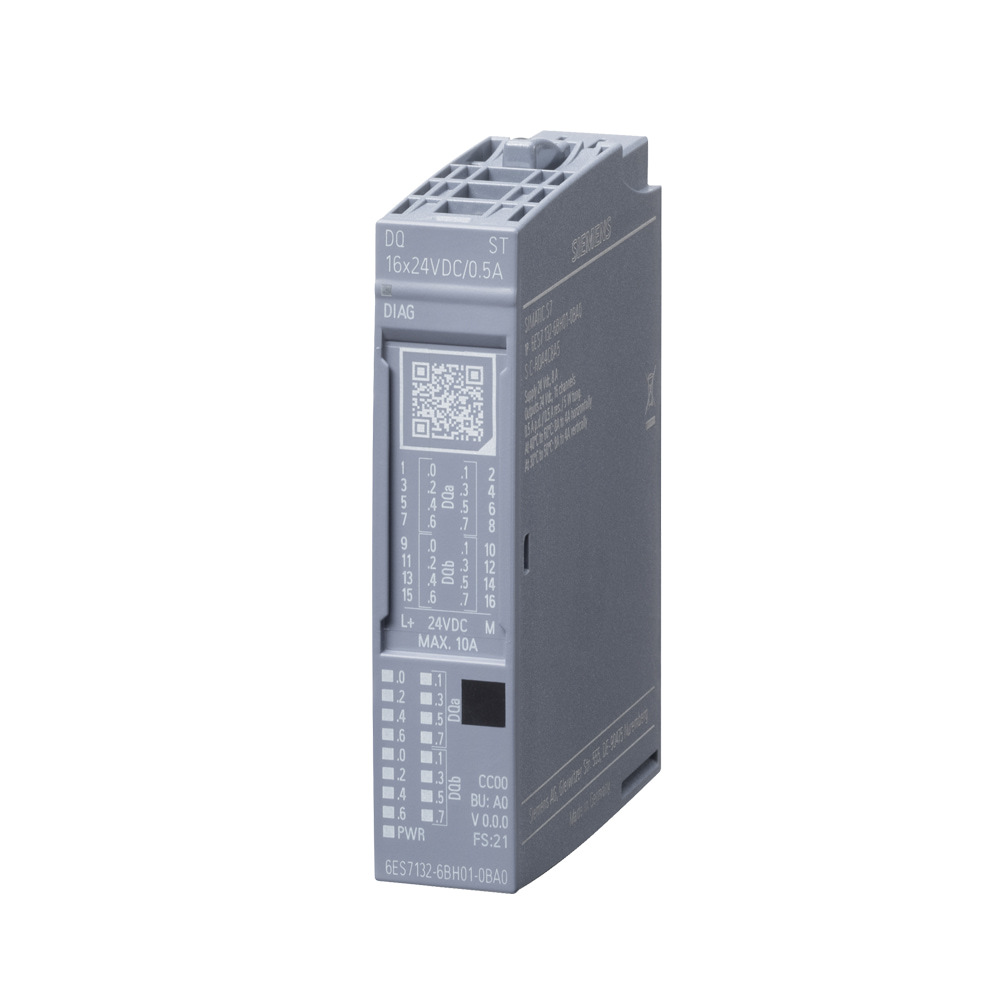

Siemens 6ES7132-6BH01-0BA0 SIMATIC ET200SP Digital Output Module 16DO 24V DC/0.5A ST

Basic Specifications

• Brand: Siemens
• Model: 6ES7132-6BH01-0BA0
• Series: SIMATIC ET200SP
• Type: Digital Output Module (DQ)
• Channels: 16 DO
• Rated Output Voltage: 24V DC (19.2~28.8V DC)
• Output Type: Source (PNP, P-switching)
• Rated Current per Channel: 0.5A
• Max Module Current: 8A
• Output Delay: Typ. 50µs (0→1), 100µs (1→0)
• Protection: Short-circuit, overload, reverse polarity
• Diagnostics: Wire break, short-circuit, supply voltage monitoring
• Compatibility: Base Unit Type A0
• Color Code: CC00
• Protection Class: IP20
• Operating Temperature: -30°C ~ +60°C
• Dimensions (W×H×D): 15 × 73 × 58 mm
• Weight: Approx. 0.035 kg

Features & Benefits

• High Density: 16 channels in a slim 15mm width, saving cabinet space.
• PNP Compatibility: Source output type directly drives standard PNP actuators.
• Robust Protection: Built-in short-circuit and overload protection ensure system reliability.
• Proactive Diagnostics: Detects wire breaks and voltage faults for easy maintenance.
• Easy Integration: Push-in terminals for fast wiring; compatible with TIA Portal.



  Applications

  • Solenoid valve control
  • Intermediate relay drive
  • Signal lamp & indicator control
  • Conveyor and packaging machinery
  • Process industry distributed I/O
  • Automotive assembly lines
