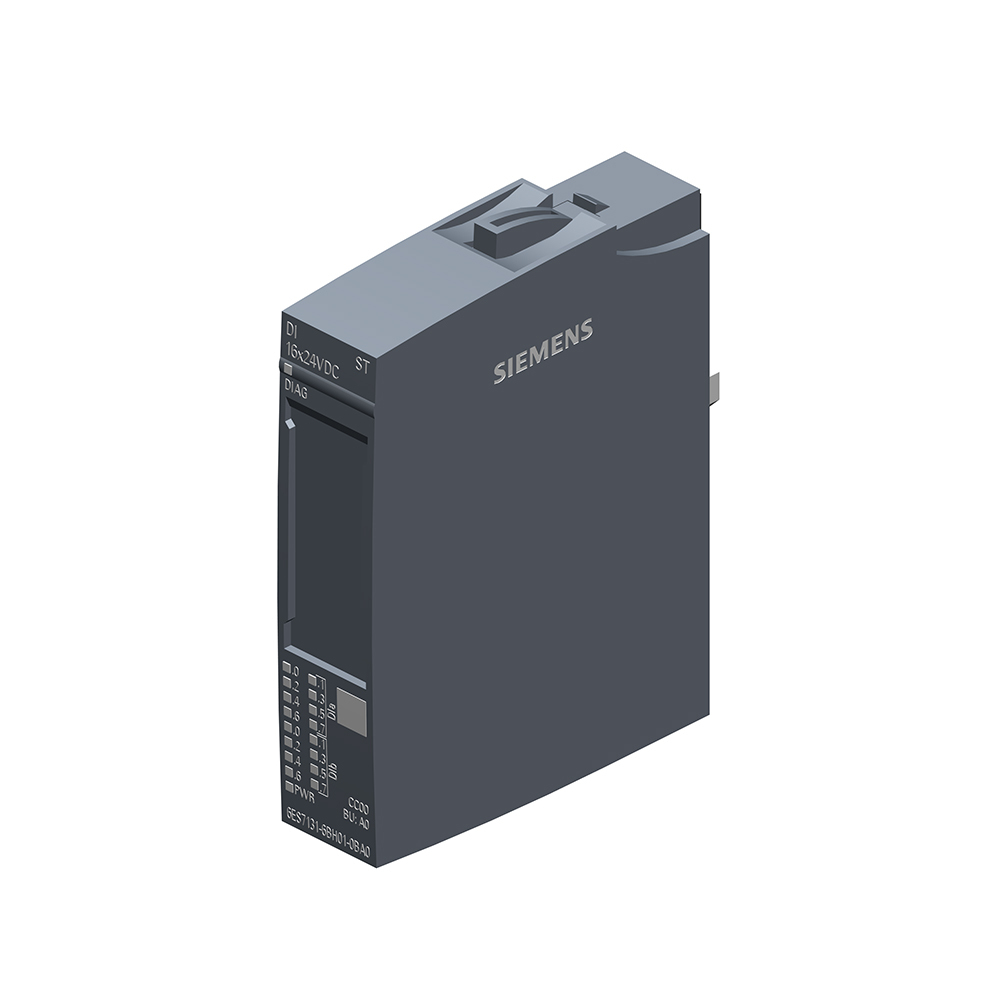

Siemens 6ES7131-6BH01-0BA0 SIMATIC ET200SP Digital Input Module 16DI 24V DC ST

Basic Specifications

• Brand: Siemens
• Model: 6ES7131-6BH01-0BA0
• Series: SIMATIC ET200SP
• Type: Digital Input Module (DI)
• Channels: 16 DI
• Rated Input Voltage: 24V DC
• Input Type: Sink Input (PNP, P-reading), Type 3 (IEC 61131)
• Input Delay: 0.05 to 20 ms, parameterizable
• Current per Channel: 2.5 mA (typical for signal "1")
• Diagnostic Features: Wire break, group error, supply voltage monitoring
• Compatibility: Base Unit Type A0
• Color Code: CC00
• Protection Class: IP20
• Operating Temperature: 0°C ~ +60°C
• Dimensions (W×H×D): 15 × 73 × 58 mm

Features & Benefits

• High Density: 16 channels in a slim 15mm width, saving cabinet space.
• PNP Compatibility: Sink input type works with standard PNP sensors.
• Flexible Filtering: Configurable input delay (0.05-20ms) for noise suppression.
• Proactive Diagnostics: Detects wire breaks and voltage faults for easy maintenance.
• Easy Integration: Compatible with TIA Portal (V14+) and STEP 7 (V5.5 SP3+).

Applications

• Factory automation signal collection
• Conveyor and packaging machinery
• Sensor and limit switch monitoring
• Process industry distributed I/O
• Automotive assembly lines
