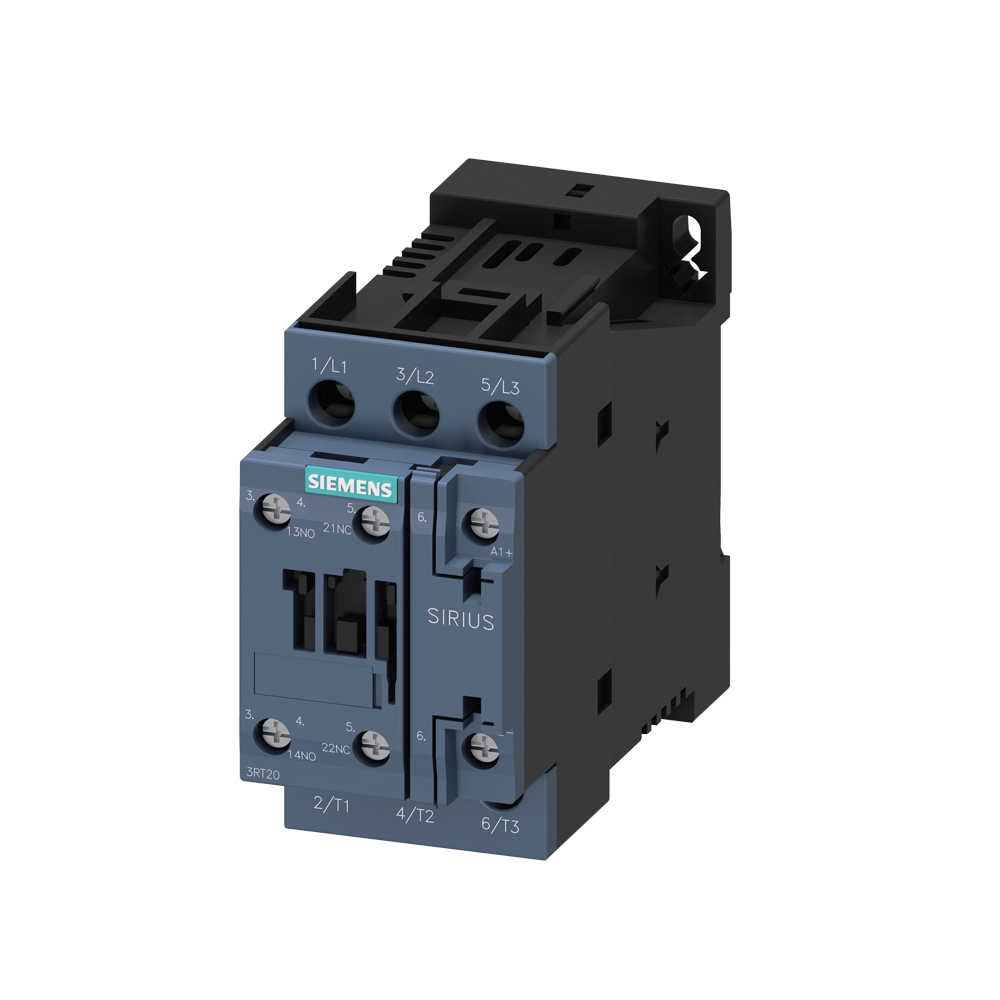

Siemens 3RT2025-1BB40 SIRIUS 3RT2 Power Contactor AC-3 17A 7.5kW 24V DC 3P 1NO+1NC S0 (Screw Terminal)

Basic Specifications

• Brand: Siemens
• Model: 3RT2025-1BB40
• Series: SIRIUS 3RT2
• Size: S0
• Rated Power AC‑3 (400V): 7.5 kW
• Rated Current AC‑3: 17 A
• Rated Current AC‑1 (400V): 40 A
• Coil Voltage: 24V DC
• Main Contacts: 3‑pole (3NO)
• Auxiliary Contacts: 1NO + 1NC
• Utilization Category: AC‑3 / AC‑3e
• Rated Insulation Voltage: 690V
• Terminal Type: Screw clamp
• Mounting: DIN rail
• Protection Class: IP20
• Operating Temperature: ‑25°C ~ +60°C
• Dimensions (W×H×D): 45 × 85 × 107 mm
• Weight: Approx. 400 g
• Approvals: CE, UL, CSA, CCC, EAC

Features & Benefits

• 24V DC Coil: PLC‑friendly, low holding power, anti‑chatter
• S0 Compact Size: 45mm width, space‑saving in cabinets
• 1NO+1NC Auxiliary: For interlock, status feedback, alarm circuits
• Screw Terminals: Reliable, easy wiring & maintenance
• High Compatibility: Works with IE2/IE3/IE4 high‑efficiency motors
• Long Life: Mechanical life up to 30 million cycles

Applications

• 7.5kW and below motor control: fans, pumps, conveyors, compressors
• HVAC and building automation
• Packaging machinery, textile equipment
• PLC output‑driven switching circuits
• Control panel power distribution
