Product Overview

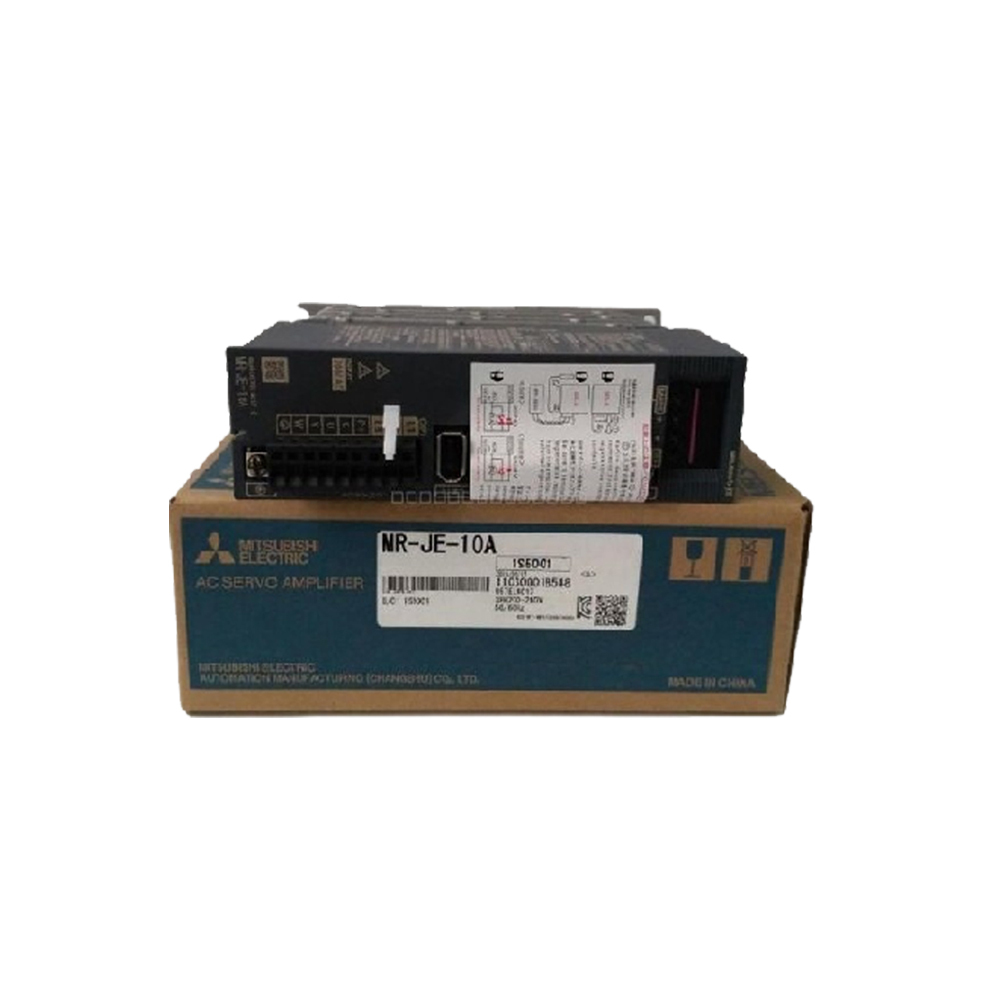

The MR-JE-10A is a compact AC servo drive from Mitsubishi Electric’s MELSERVO-JE series, designed for 100W servo motors. It supports pulse train control, USB/RS-485 communication, and advanced vibration suppression, ideal for light-load precision positioning applications.
Key Specifications
- Brand: Mitsubishi Electric
- Series: MELSERVO-JE
- Model: MR-JE-10A
- Rated Output Power: 0.1kW (100W)
- Input Voltage: Single/three-phase AC 200–240V, 50/60Hz
- Input Rated Current: 0.9A
- Output Voltage: Three-phase AC 170V
- Output Rated Current: 1.1A
- Control Method: Sine-wave PWM control, current control
- Max Input Pulse: 4Mpps (differential), 200kpps (open-collector)
- Encoder Resolution: 131072 p/rev (20-bit)
- Communication: USB, RS-422/RS-485
- Dynamic Brake: Built-inMITSUBISHI ELECTRIC
- Cooling: Natural cooling
- Protection: Overcurrent, overvoltage, overload, encoder fault, undervoltage, overspeed
- Compatible Motor: HG-KN13(B)J-S100
- Weight: ~1.0kg
Features & Benefits
- Compact design for space-saving installation
- High-speed pulse response for precise positioning
- Advanced vibration suppression control II for stable operationMITSUBISHI ELECTRIC
- Auto-tuning & one-touch tuning for easy setupMITSUBISHI ELECTRIC
- Built-in dynamic brake for safe stopMITSUBISHI ELECTRIC
- USB & RS-485 for PC monitoring & multi-axis control
- Comprehensive protection for reliable long-term use
Applications
Suitable for small packaging machines, labeling machines, semiconductor handling, 3C assembly, small robots, and light-load precision positioning equipment.
