Product Overview

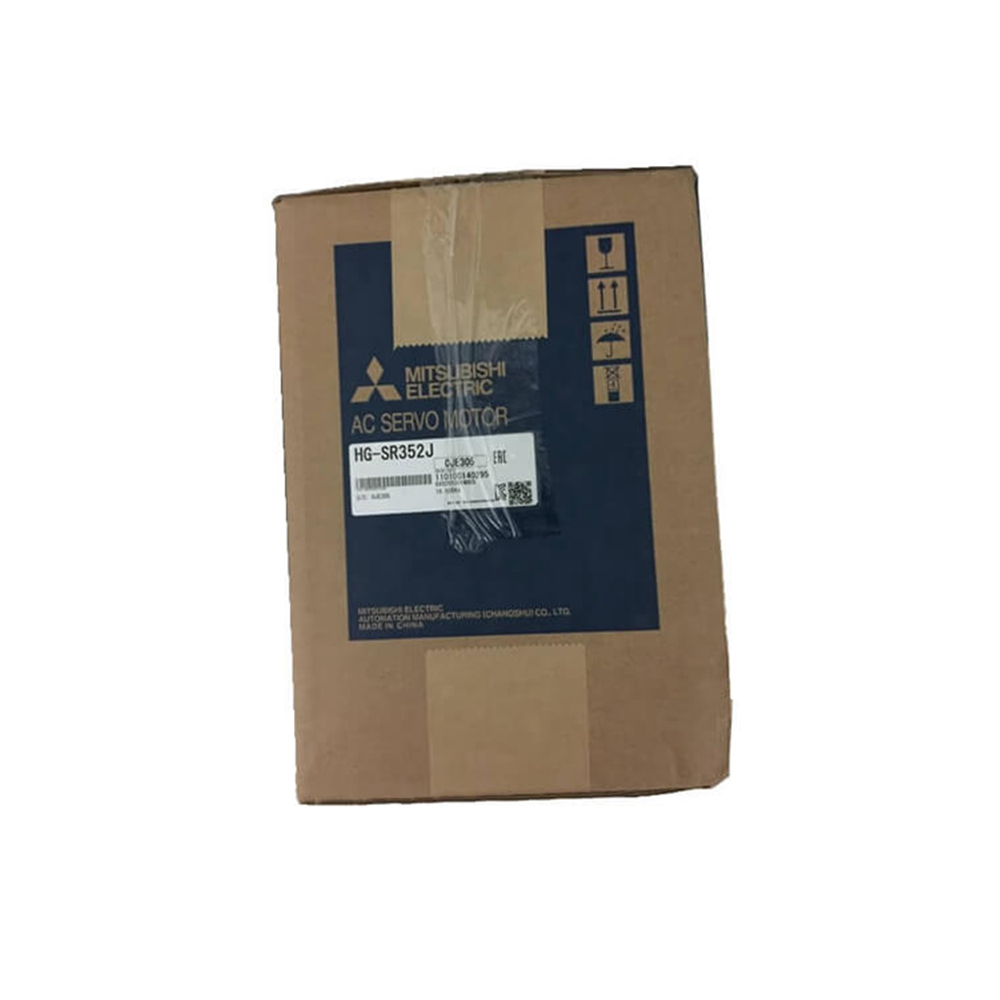

The HG-SR352J is a 3.5kW medium inertia servo motor from Mitsubishi MELSERVO-J4 series. It provides stable high torque output and strong overload capability for heavy-duty industrial automation applications.
Key Specifications
- Brand: Mitsubishi
- Series: HG-SR Series
- Model: HG-SR352J
- Rated Power: 3.5kW
- Rated Voltage: 200–240V AC
- Rated Speed: 2000 rpm
- Max Speed: 3000 rpm
- Rated Torque: 16.7 N·m
- Inertia: Medium Inertia
- Encoder: 22-bit Absolute Encoder
- Brake: No Brake
- Cooling: Natural Cooling
- Protection: IP65
- Shaft: Shaft with keyway
- Matching Drive: MR-J4-350A
- Weight: 8.8kg
Features & Benefits
- Medium inertia design for stable operation under heavy cyclic loads
- 22-bit high-resolution absolute encoder for ultra-high positioning accuracy
- Robust mechanical structure with excellent durability
- High torque performance to meet heavy load driving demands
- Fully compatible with Mitsubishi MR-J4 series servo drives
Applications
Heavy-duty CNC machines, large packaging lines, material handling equipment, gantry systems and industrial automation heavy-load mechanisms.
