Product Overview

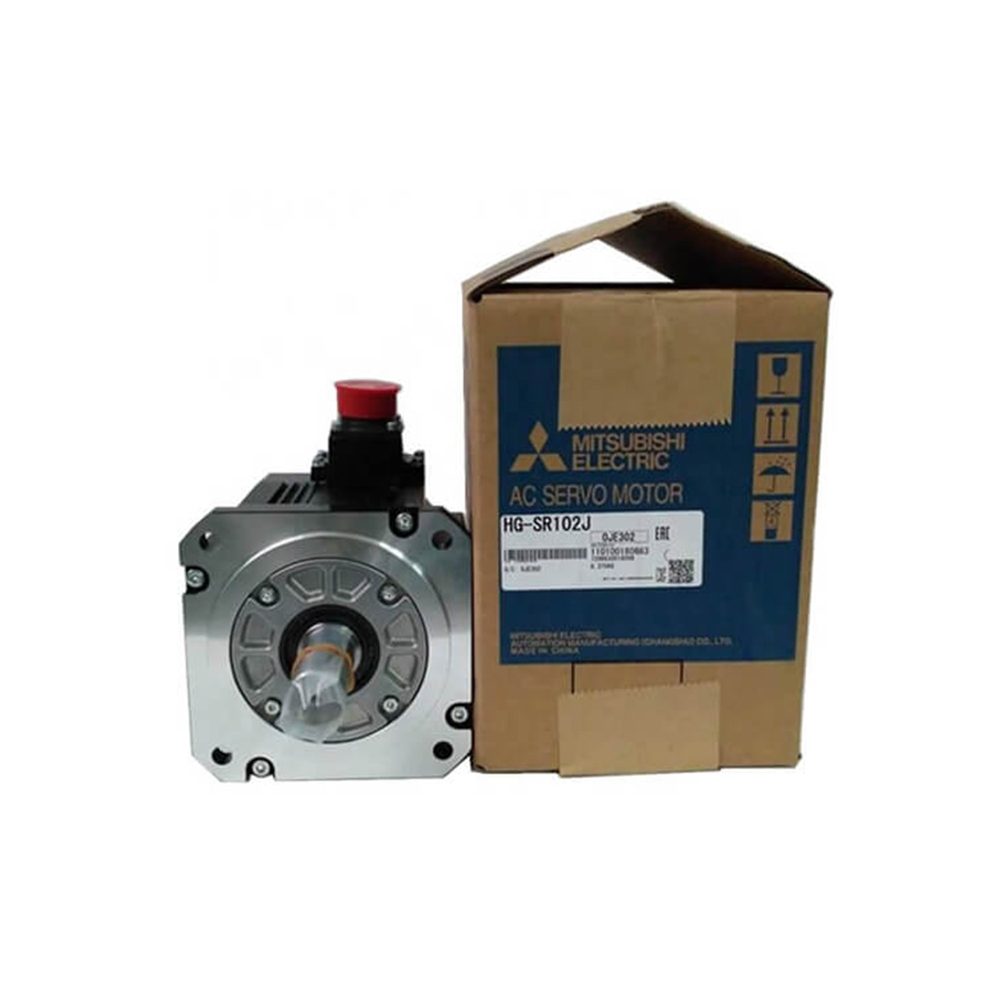

The HG-SR102J is a 1kW medium inertia servo motor from Mitsubishi MELSERVO-J4 series. It features stable driving, high positioning accuracy and strong load capacity, widely used in medium-load industrial automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: HG-SR Series
- Model: HG-SR102J
- Rated Power: 1kW (1000W)
- Rated Voltage: 200–240V AC
- Rated Speed: 2000 rpm
- Max Speed: 3000 rpm
- Permissible Instantaneous Speed: 3450 rpm
- Rated Torque: 4.8 N·m
- Max Torque: 14.3 N·m
- Inertia: 11.6 × 10⁻⁴ kg·m² (Medium Inertia)
- Encoder: 22-bit absolute encoder (4194304 pulses/rev)
- Brake: No electromagnetic brake
- Cooling: Natural cooling
- Protection: IP67
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-J4-100A
- Weight: 4.0 kg
Features & Benefits
- Medium inertia design for stable and smooth operation
- 22-bit high-resolution absolute encoder for ultra-precise positioning
- High torque output for strong load driving capability
- IP67 protection for reliable operation in harsh industrial environments
- Perfect matching with Mitsubishi MR-J4 series servo drives
Applications
Widely used in conveying equipment, robotic arms, packaging machinery, CNC machine tools, textile machinery and other medium-load precision motion control fields.
