Product Overview

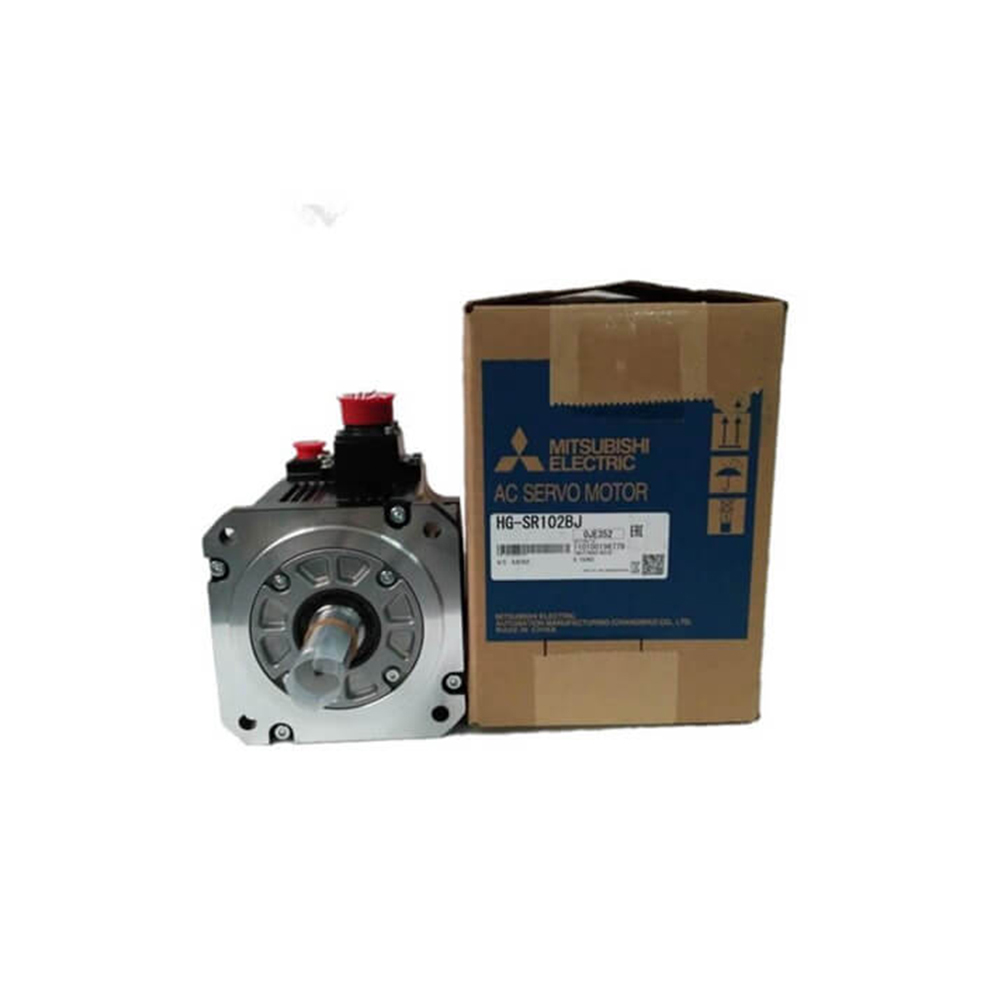

The HG-SR102BJ is a 1kW medium inertia servo motor with electromagnetic brake from Mitsubishi J4 series. It offers stable torque output, anti-fall holding function and high positioning accuracy, suitable for vertical and heavy-load automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: HG-SR Series
- Model: HG-SR102BJ
- Rated Power: 1kW
- Rated Voltage: 200–240V AC
- Rated Speed: 2000 rpm
- Max Speed: 3000 rpm
- Rated Torque: 4.8 N·m
- Inertia: Medium Inertia
- Encoder: 22-bit Absolute Encoder
- Brake: Electromagnetic Brake
- Protection: IP65
- Shaft: Shaft with keyway
- Compatible Drive: MR-J4-100A
- Weight: 4.4kg
Features & Benefits
- Built-in brake, effective locking for vertical axis installation
- Medium inertia design, stable operation for heavy load
- 22-bit high resolution encoder, high repeated positioning accuracy
- Strong overload capacity, long-term stable industrial operation
- Fully matched with Mitsubishi MR-J4 series servo drives
Applications
Packaging machines, lifting equipment, CNC machine tools, material handling machinery, medium and heavy-duty automated production lines.
