Product Overview

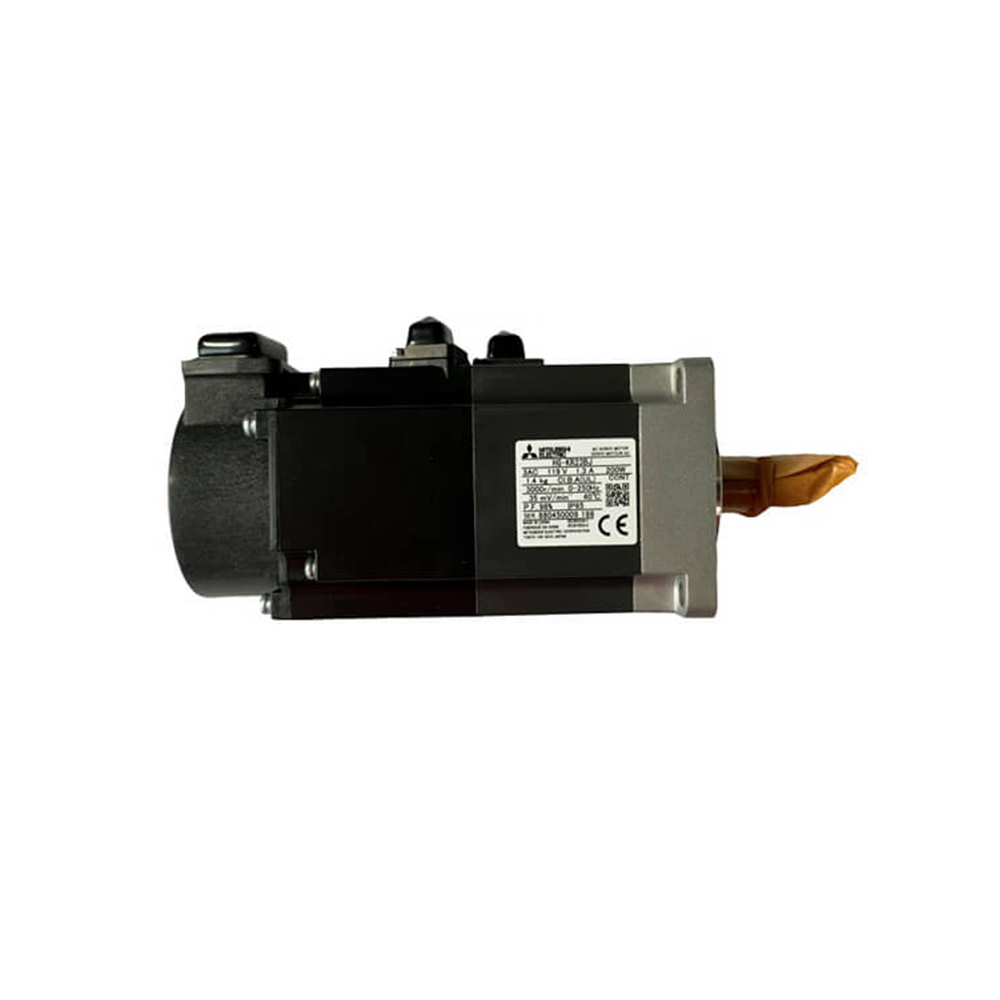

The HG-KR23 is a 0.2kW low inertia servo motor from Mitsubishi MELSERVO-J4 series. It features high speed response, high positioning accuracy and compact structure, widely used in light to medium load precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: HG-KR Series
- Model: HG-KR23
- Rated Power: 0.2kW (200W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 6000 rpm
- Rated Torque: 0.64 N·m
- Inertia: 0.146 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit absolute encoder
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-J4-20A
- Weight: 0.8 kg
Features & Benefits
- Low inertia design for fast acceleration and deceleration
- 22-bit high-resolution absolute encoder for high precision
- Compact size for installation in limited space
- IP65 protection for reliable industrial operation
- Perfect matching with Mitsubishi MR-J4 series drives
Applications
Widely used in semiconductor equipment, electronic assembly machines, small robots, packaging machinery and other light-load precision motion control fields.
