Product Overview

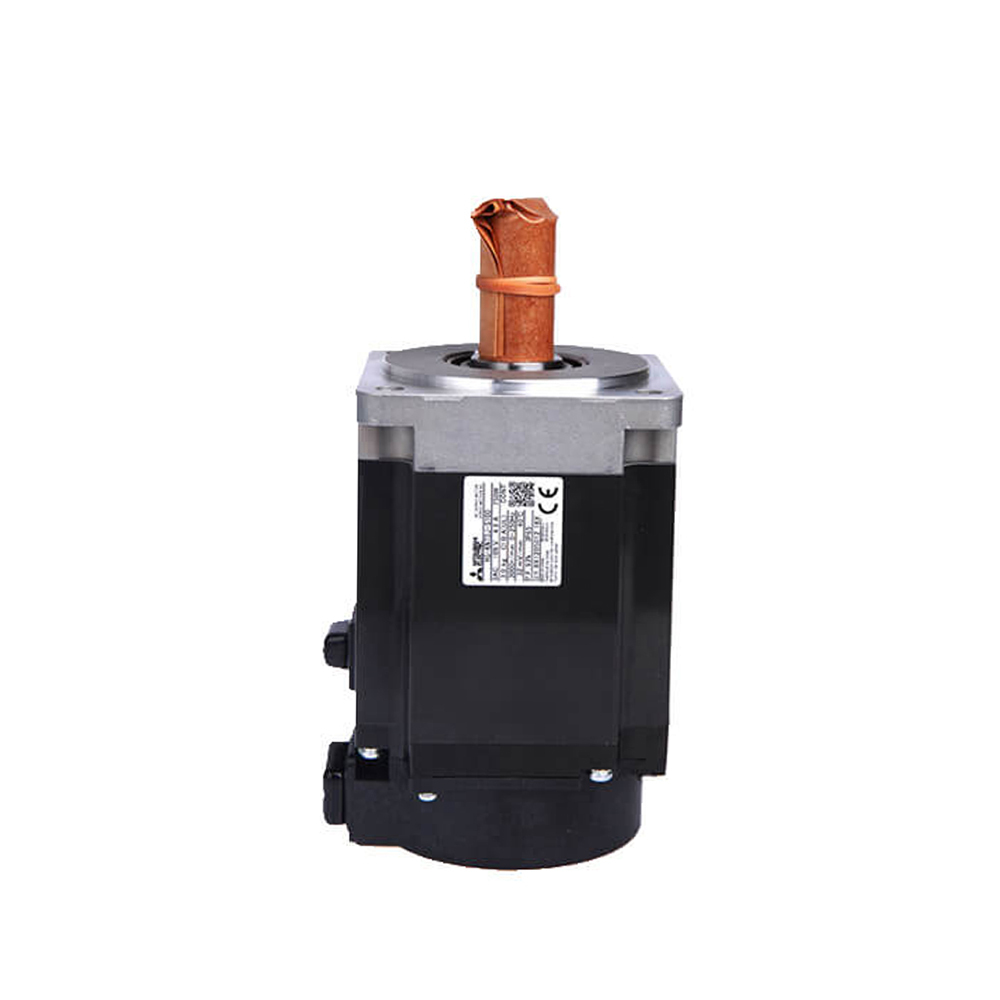

The HG-KN73BJ-S100 is a 0.75kW low inertia servo motor with electromagnetic brake from Mitsubishi. It features fast response, high precision and safe position locking, widely used in vertical axis and medium-load automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN73BJ-S100
- Rated Power: 0.75kW (750W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 2.4 N·m
- Inertia: 0.87 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit incremental encoder
- Brake: Electromagnetic brake
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-JE-70A, MR-J4-70A
- Weight: 1.6 kg
Features & Benefits
- With electromagnetic brake for safe position holding
- Low inertia design for fast acceleration and deceleration
- 22-bit high-resolution encoder for high positioning accuracy
- IP65 protection for reliable industrial operation
- Perfect match with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in robotic arms, vertical conveying systems, CNC machines, packaging machinery and other precision motion control scenarios.
