Product Overview

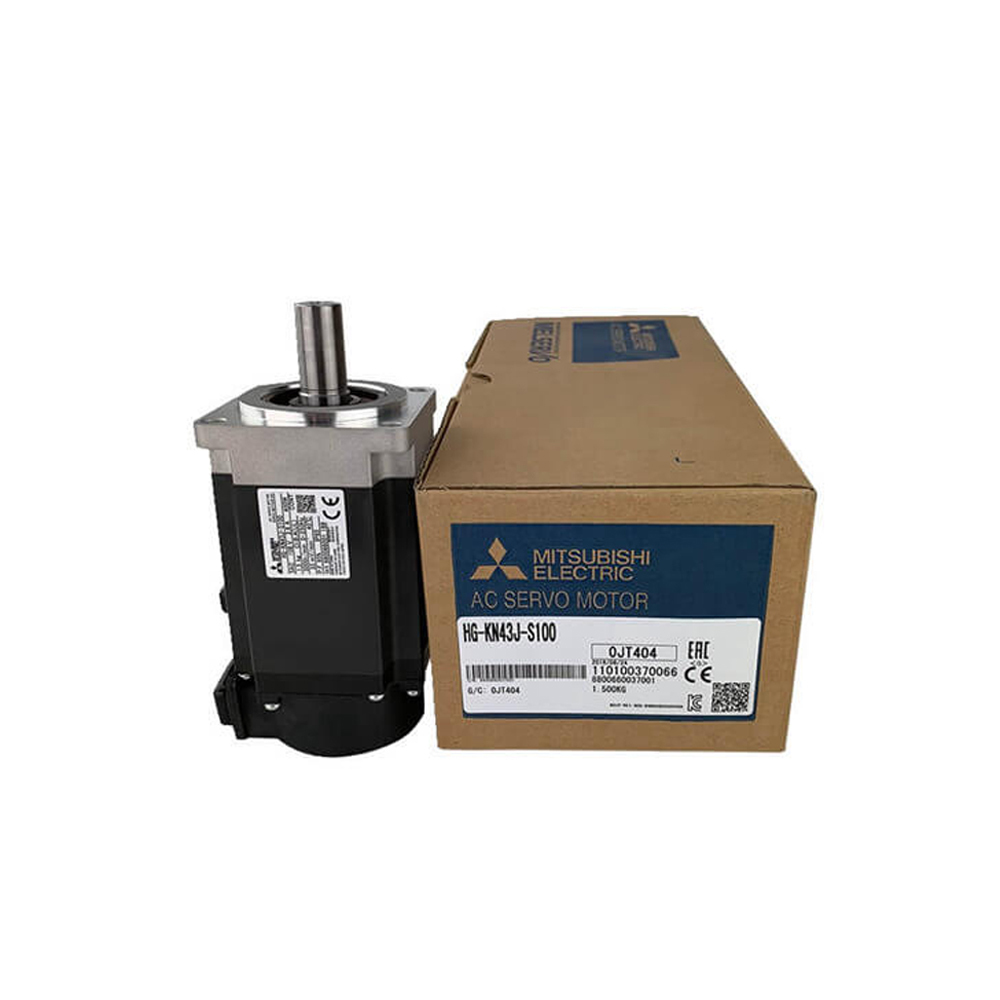

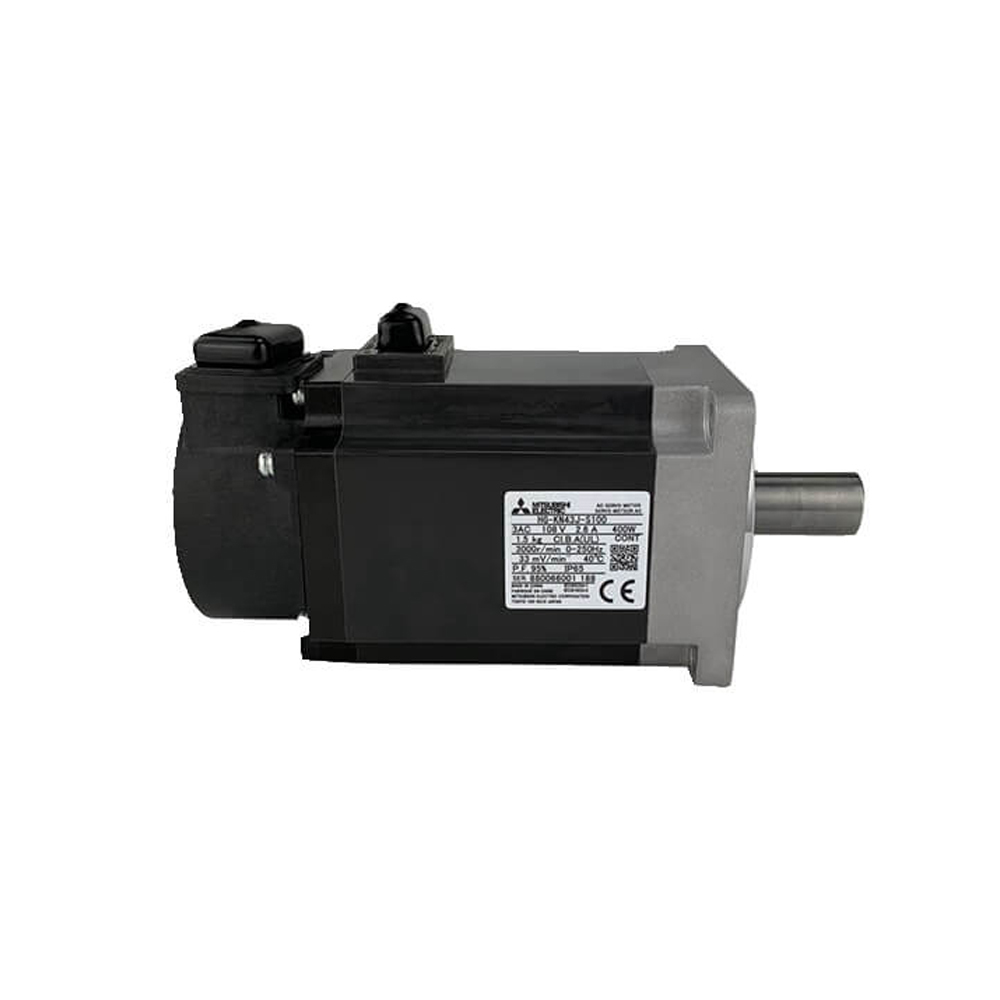

The HG-KN43J-S100 is a 0.4kW low inertia servo motor from Mitsubishi. It features quick dynamic response, high positioning accuracy and stable performance, widely used in medium-load precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN43J-S100
- Rated Power: 0.4kW (400W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 1.27 N·m
- Inertia: 0.24 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit incremental encoder
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-JE-40A, MR-J4-40A
- Weight: 1.0 kg
Features & Benefits
- Low inertia design for fast acceleration and deceleration
- 22-bit high-resolution encoder for high positioning accuracy
- Compact structure for easy installation in narrow spaces
- IP65 protection for reliable operation in industrial environments
- Perfect matching with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in electronic assembly machines, semiconductor equipment, conveying systems, packaging machinery, CNC machines and other medium-load precision motion control fields.
