Product Overview

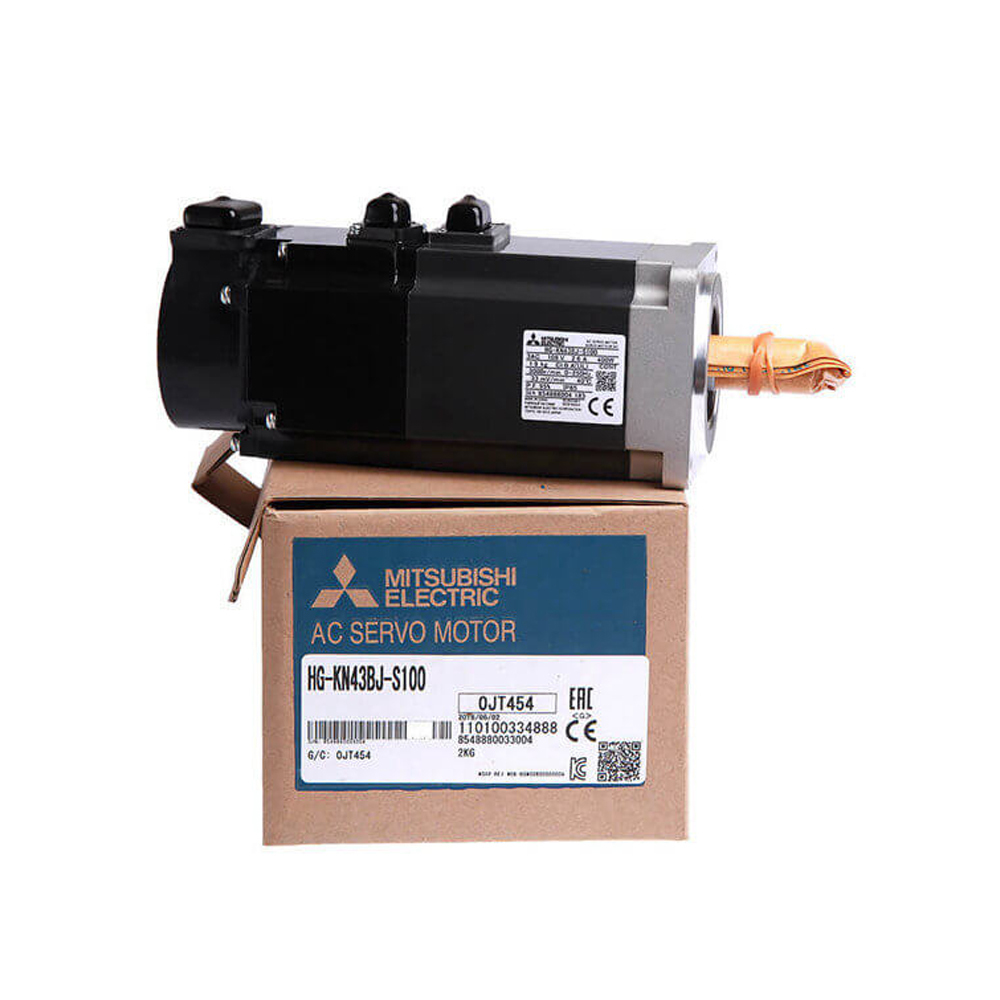

The HG-KN43BJ-S100 is a 0.4kW low inertia servo motor with electromagnetic brake from Mitsubishi. It features high response speed, high positioning accuracy and safe position holding, widely used in vertical axis and precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN43BJ-S100
- Rated Power: 0.4kW (400W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 1.27 N·m
- Inertia: 0.34 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit incremental encoder
- Brake: Electromagnetic brake
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-JE-40A, MR-J4-40A
- Weight: 1.1 kg
Features & Benefits
- Built-in electromagnetic brake for safe position locking
- Low inertia design for fast dynamic response
- 22-bit high-resolution encoder ensures high positioning accuracy
- IP65 protection for reliable industrial operation
- Perfect matching with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in robotic arms, vertical conveying systems, semiconductor equipment, packaging machinery and other precision motion control scenarios.
