Product Overview

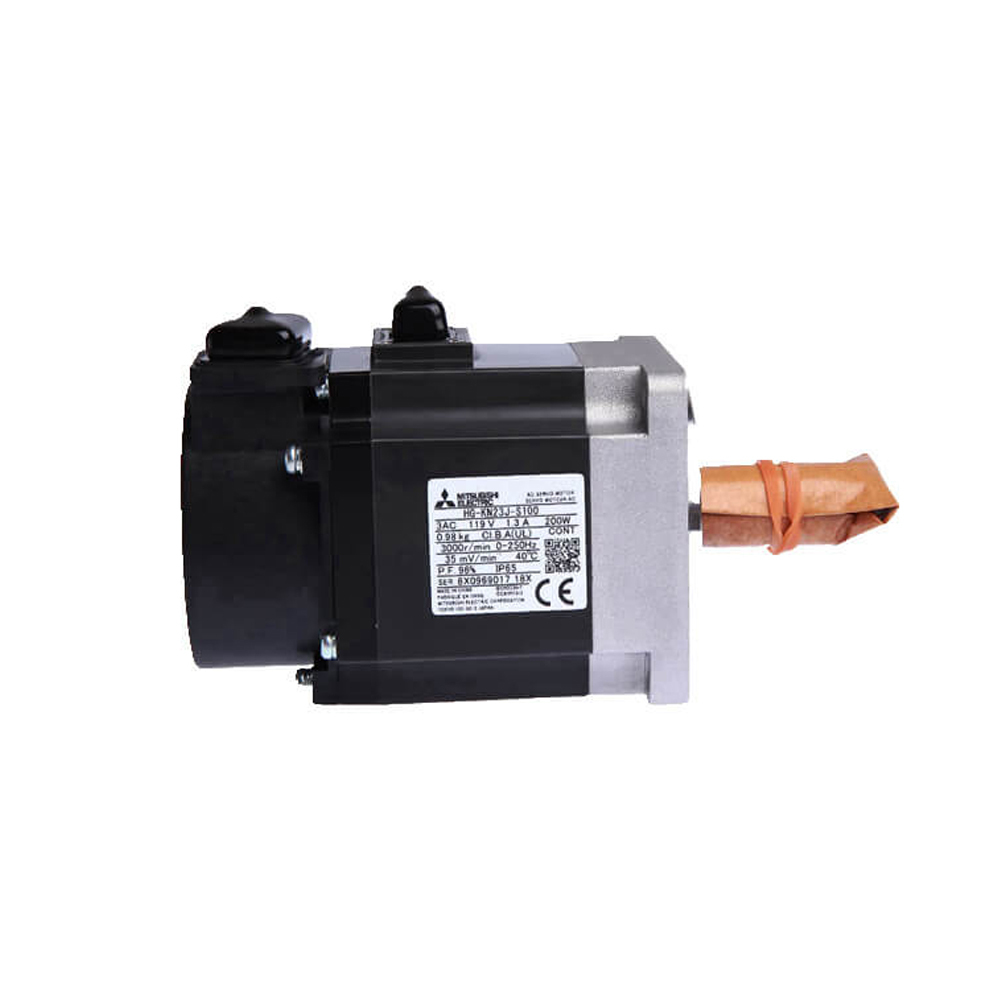

The HG-KN23BJ-S100 is a 0.2kW low inertia servo motor with electromagnetic brake from Mitsubishi. It provides fast response, high positioning accuracy and safe holding function, widely used in vertical axis and precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN23BJ-S100
- Rated Power: 0.2kW (200W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 0.64 N·m
- Inertia: 0.18 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit incremental encoder
- Brake: Electromagnetic brake
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-JE-20A, MR-J4-20A
- Weight: 0.9 kg
Features & Benefits
- With electromagnetic brake for safe position holding
- Low inertia design for fast acceleration and deceleration
- 22-bit high-resolution encoder ensures high precision
- IP65 protection for reliable industrial use
- Perfect match with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in vertical conveying systems, robotic arms, semiconductor equipment, packaging machinery and other precision motion control scenarios.
