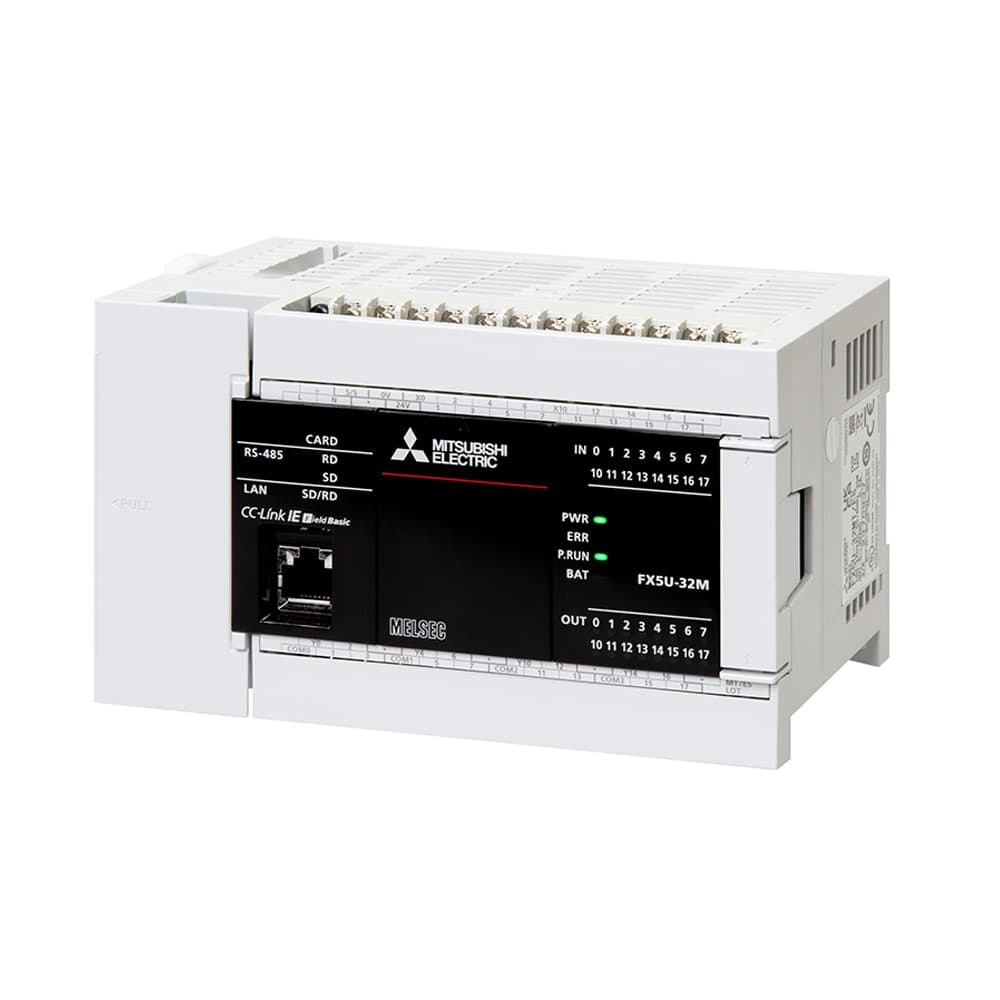

Mitsubishi FX5U-32MT/ES iQ-F Series PLC Controller
The FX5U-32MT/ES is a compact, high-performance PLC from Mitsubishi's MELSEC iQ-F Series, designed for small to medium-scale industrial automation applications. It features 32 integrated I/O points with 16 digital inputs (24V DC, sink/source switchable) and 16 transistor outputs (DC5–30V, 0.5A per point).
Key Specifications:
- 2 built-in analog inputs and 1 built-in analog output
- Up to 6 channels of high-speed counter (200kHz max) + 2 channels (10kHz max)
- 4-axis built-in positioning (200kHz max) for precise motion control
- Built-in Ethernet and RS-485 ports for seamless communication
- 32-bit RISC CPU with 34ns instruction processing speed
- 64K steps of flash program memory (no battery backup required)
- DIN rail mounting for easy installation
Certifications: CE, UL/cUL, KC, and major marine approvals (ABS, LR, NK, DNV, RINA, BV, KR). It supports IEC 61508 SIL 2 and ISO 13849-1 PLd for functional safety applications.
Applications:
Ideal for packaging machines, material handling systems, small assembly lines, and general factory automation in Southeast Asia, Middle East, and India markets.
