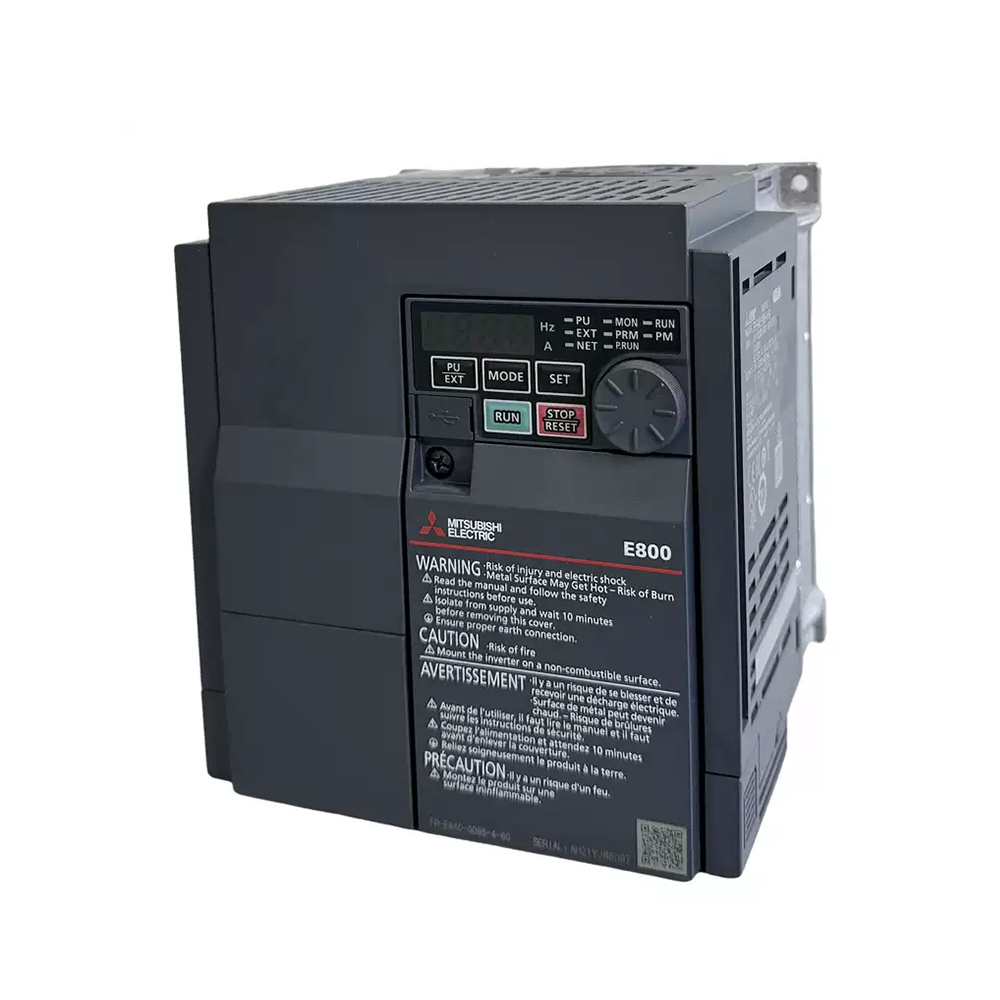

Mitsubishi FR-E840-0440-4-60 E800 Series 22kW(ND)/30kW(LD) 3 Phase 380-480V AC Drive Inverter

Basic Specifications

• Brand: Mitsubishi
• Model: FR-E840-0440-4-60
• Series: FR-E800
• Rated Current: 44.0A (ND) / 57.0A (LD)
• Applicable Motor Power: 22kW (ND) / 30kW (LD)
• Input Voltage: 3-phase AC 380~480V, 50/60Hz
• Output Frequency Range: 0.2~590Hz
• Overload Capacity: ND 150% for 60s, 200% for 3s; LD 120% for 60s

Control & Interface

• Control Mode: V/F control, Magnetic Flux Vector Control, Sensorless Vector Control, PM Motor Vector Control
• Built-in: RS485 Modbus RTU, Safe Torque Off (STO)
• Optional Protocol: CC-Link, PROFIBUS-DP, DeviceNet
• I/O Configuration: 7DI / 2AI / 2RO / 2DO / 2AO

Physical & Environmental Parameters

• Enclosure Rating: IP20
• Cooling Method: Fan Cooling
• Dimension (W×H×D): 220 × 230 × 170mm
• Weight: 4.4kg
• Working Temperature: -20℃ ~ +60℃ (Derating required above 50℃)
• Certifications: CE, UL, RoHS, UKCA, EAC

Features & Benefits

• Outstanding low-speed high-torque capability for heavy load starting
• Built-in EMC filter, strong anti-interference performance for harsh industrial sites
• Integrated STO safety function meets international machinery safety standards
• Energy-saving V/F curve optimized for fan and pump energy saving operation
• Support parameter copy, convenient for on-site debugging and batch deployment
