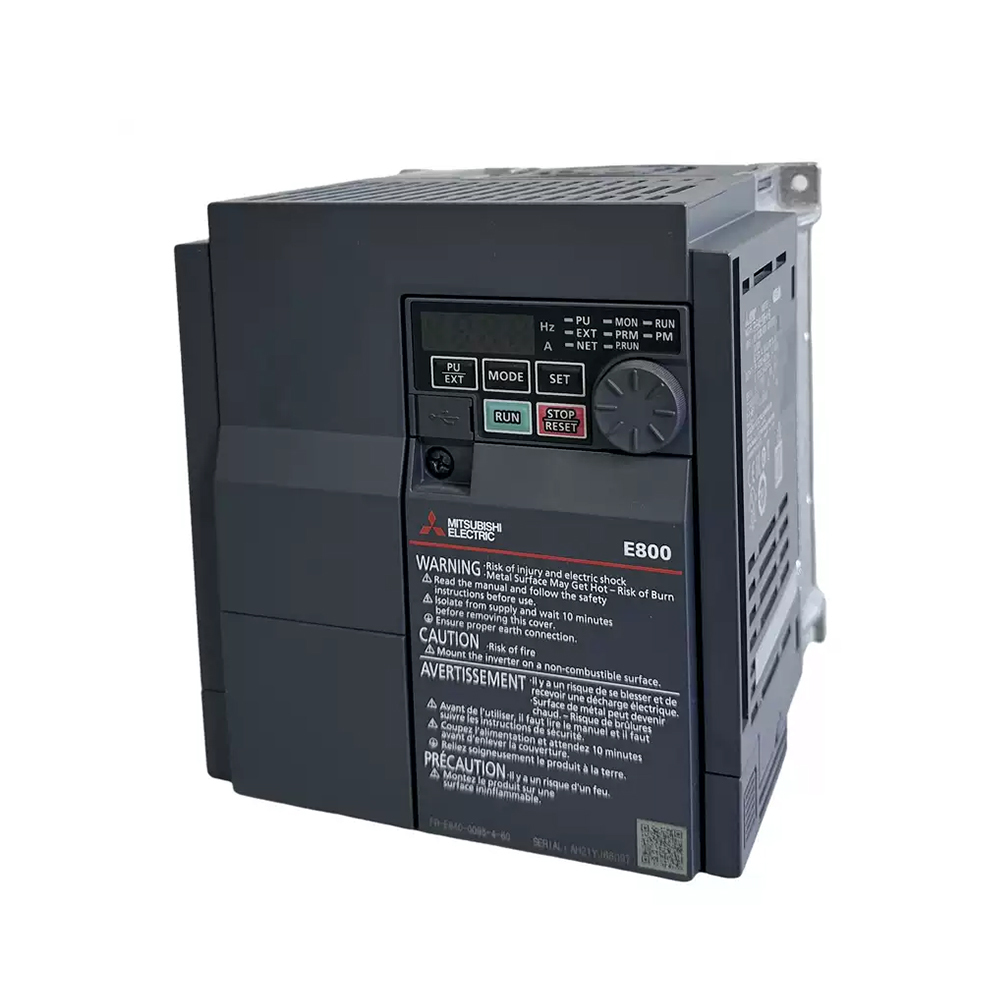

Mitsubishi FR-E840-0120-4-60 E800 Series 5.5kW(ND)/7.5kW(LD) 3 Phase 380-480V Inverter

Product Details

Basic Specifications

• Brand: Mitsubishi
• Model: FR-E840-0120-4-60
• Series: FR-E800
• Rated Current: 12.0A(ND) / 14.8A(LD)
• Applicable Motor Power: 5.5kW(ND) / 7.5kW(LD)
• Input Voltage: 3-phase AC 380~480V, 50/60Hz
• Output Frequency Range: 0.2~590Hz
• Overload Capacity: ND 150% for 60s, 200% for 3s; LD 120% for 60s

Control & Interface

• Control Mode: V/F control, Magnetic flux vector control, Sensorless vector control, PM motor vector control
• Built-in: RS485 Modbus RTU, Safe Torque Off (STO)
• Optional Protocol: CC-Link, PROFIBUS-DP, DeviceNet
• I/O Configuration: 7DI / 2AI / 2RO / 2DO / 2AO

Physical & Environmental Parameters

• Enclosure Rating: IP20
• Cooling Method: Fan cooling
• Dimension (W×H×D): 140 × 150 × 135mm
• Weight: 1.9kg
• Working Temperature: -20℃ ~ +60℃ (Derating required above 50℃)
• Certifications: CE, UL, RoHS, UKCA, EAC

Features & Benefits

• High low-speed torque performance for heavy load startup
• Built-in EMC filter, strong anti-interference for industrial sites
• Integrated STO safety function, complies with machinery safety standards
• Energy-saving V/F curve optimized for fan and pump applications
• Simple operation panel for parameter copy and batch setting
