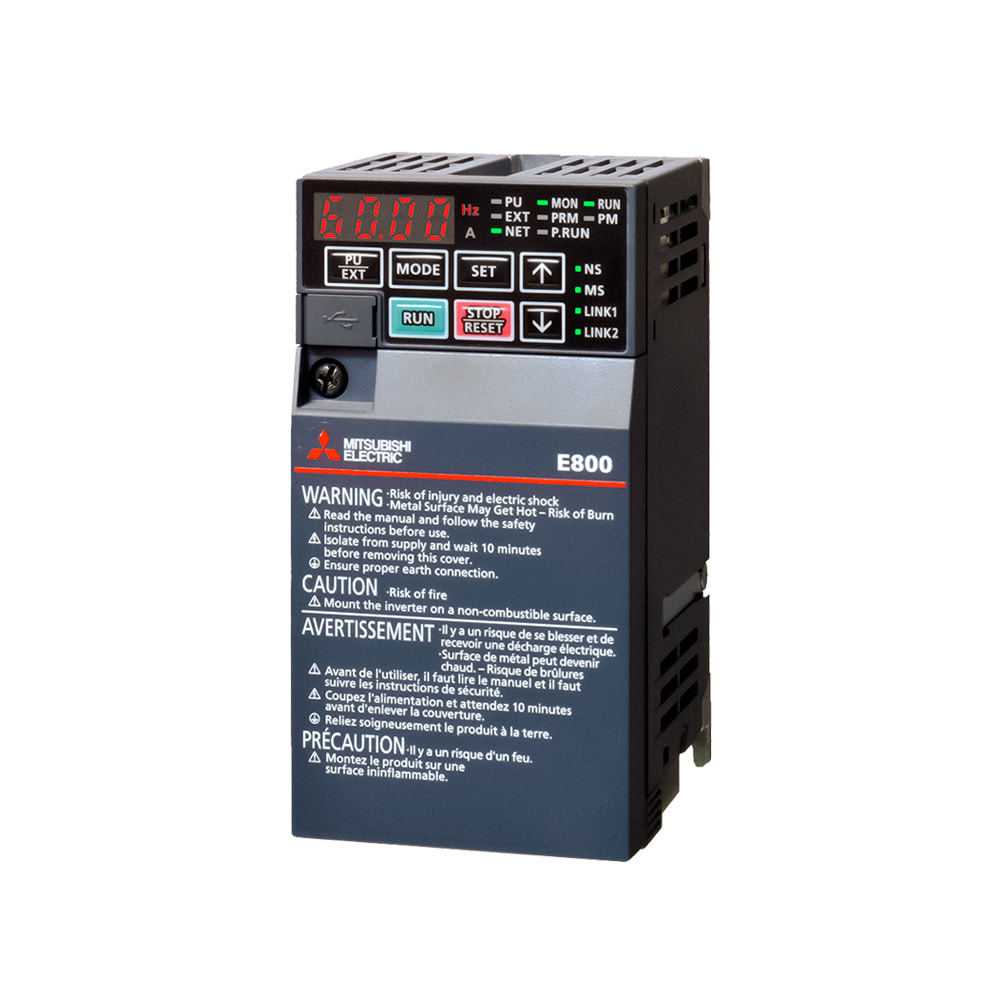

Mitsubishi FR-E840-0060-4-60 E800 Series 2.2kW(ND)/3.0kW(LD) 3 Phase 380-480V AC Drive Inverter
No. FR-E840-0060-4-60
Mitsubishi FR-E840-0060-4-60 is a compact, high-efficiency 2.2kW (ND)/3.0kW (LD) three-phase 380~480V inverter from the E800 series. It features sensorless vector control, built-in RS-485 (Modbus RTU), integrated STO safety function, and is ideal for fans, pumps, conveyors, and general-purpose motor control.
The FR-E840-0060-4-60 belongs to Mitsubishi’s E800 series, a compact and cost-effective inverter line designed for standard industrial applications. It combines advanced control algorithms, multiple communication options, and robust protection in a space-saving package.
Key Specifications
Brand: Mitsubishi
Model: FR-E840-0060-4-60
Series: E800
Applicable Motor Power: 2.2kW (ND, Normal Duty) / 3.0kW (LD, Light Duty)
Input Voltage: 3-phase AC 380~480V (-15%~+10%), 50/60Hz
Output Voltage: 3-phase AC 0~480V
Frequency Range: 0.2~590Hz
Rated Current: 6.0A (ND) / 6.9A (LD)
Overload Capacity:
ND: 150% for 60s, 200% for 3s
LD: 120% for 60s, 150% for 3s
Control Modes: V/F control, Advanced Magnetic Flux Vector Control, Real Sensorless Vector Control, PM Sensorless Vector Control
