Product Overview

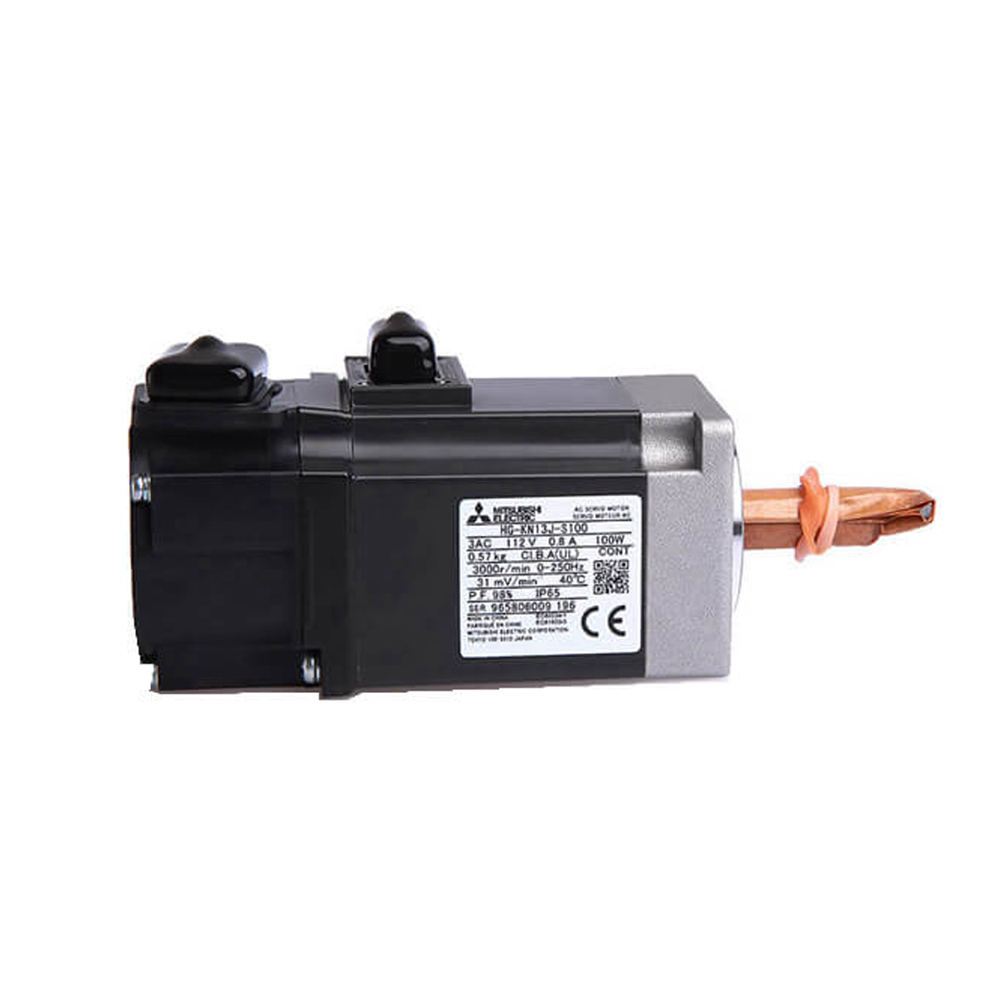

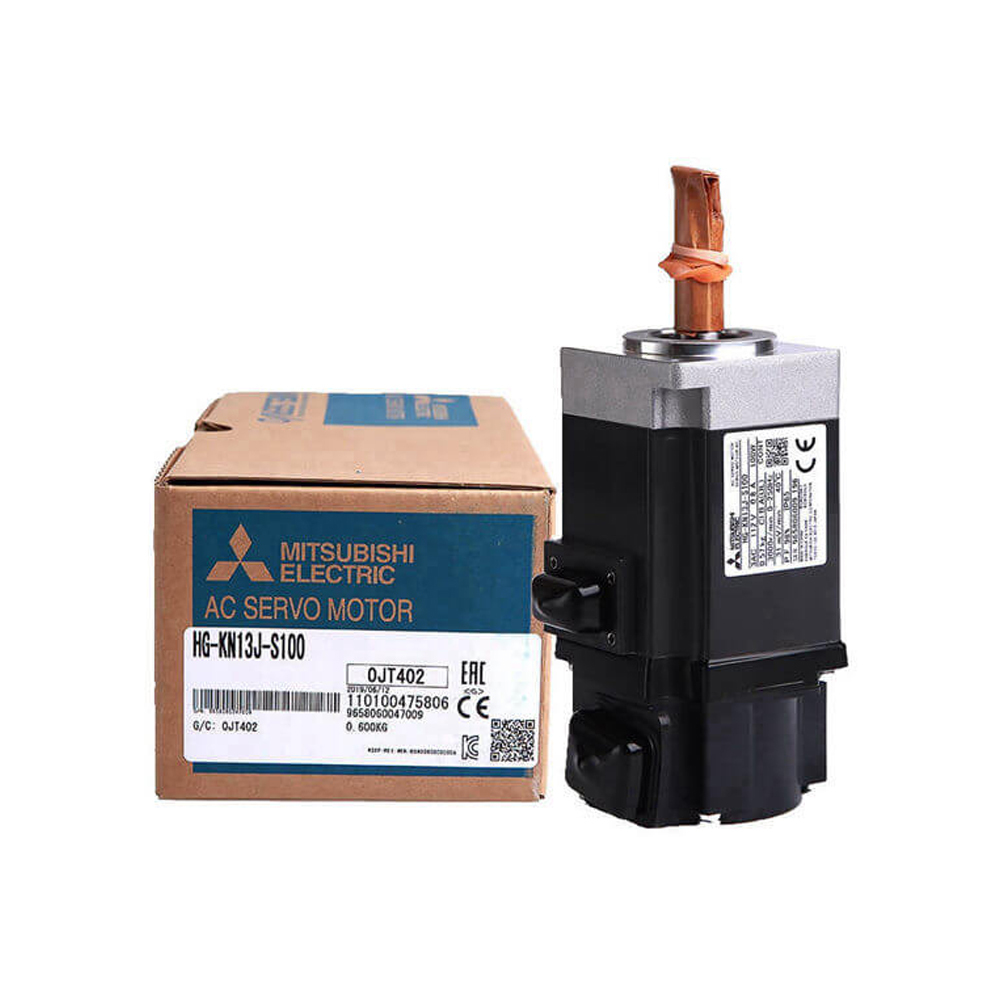

The HG-KN13J-S100 is a 0.1kW small power servo motor from Mitsubishi, belonging to the KN series. It features a 22-bit high-resolution encoder, low inertia, and stable output, widely used in light-load precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN13J-S100
- Rated Power: 0.1kW (100W)
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 0.32 N·m
- Inertia: 0.063 × 10⁻⁴ kg·m²
- Encoder: 22-bit incremental encoder
- Cooling: Natural cooling
- Protection: IP65 (front), IP67 (shaft)
- Shaft: Smooth shaft with keyway
- Compatible Drives: MR-JE-10A, MR-J4-10A
- Weight: 0.7 kg
Features & Benefits
- Compact and lightweight design for easy installation
- 22-bit high-resolution encoder for high positioning accuracy
- Low inertia for fast acceleration and deceleration response
- Good anti-vibration performance, stable operation
- IP65/IP67 protection for reliable use in various environments
- Perfect matching with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in small conveying equipment, electronic assembly machines, semiconductor equipment, packaging machines, 3C automation, medical devices and other light-load precision motion control scenarios.
