Product Overview

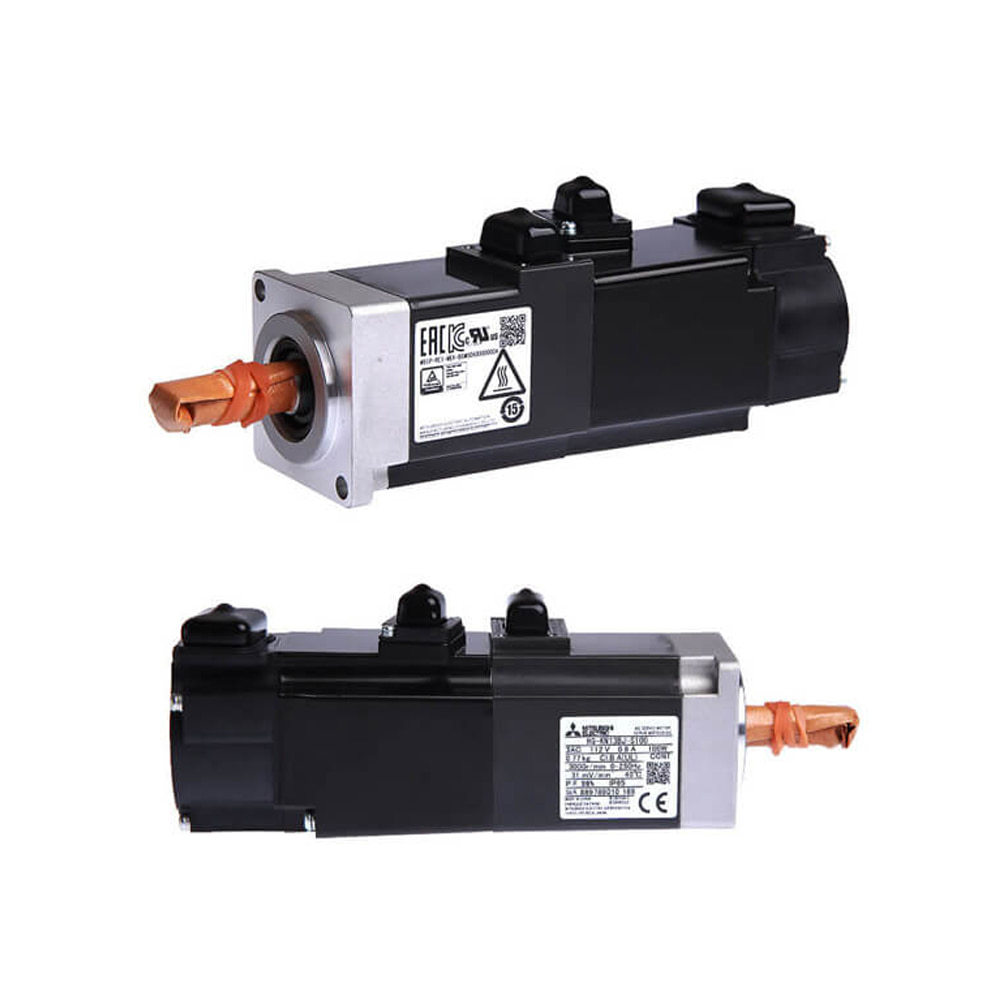

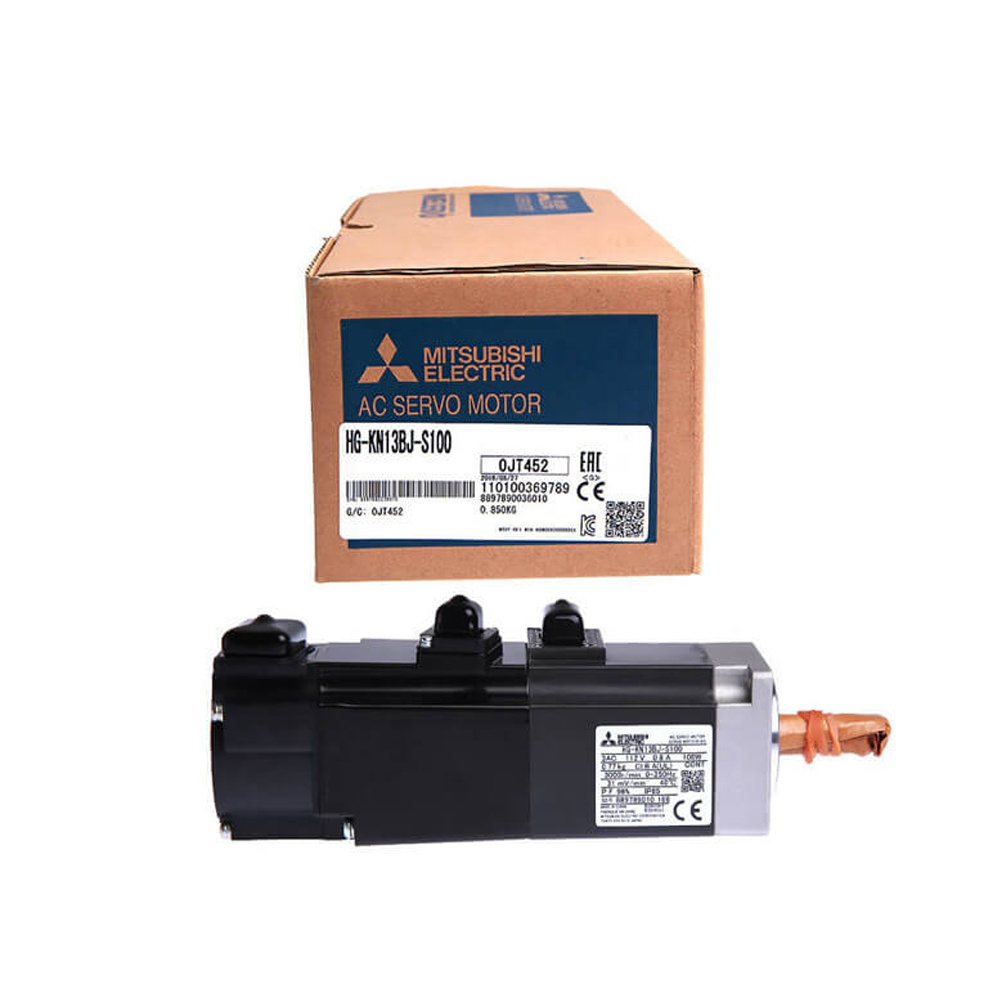

The HG-KN13BJ-S100 is a 0.1kW low inertia servo motor from Mitsubishi. It features fast response, high positioning accuracy and stable performance, widely used in light-load precision automation equipment.
Key Specifications
- Brand: Mitsubishi
- Series: KN Series
- Model: HG-KN13BJ-S100
- Rated Power: 0.1kW (100W)
- Rated Voltage: 200–240V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 0.32 N·m
- Inertia: 0.063 × 10⁻⁴ kg·m² (Low Inertia)
- Encoder: 22-bit incremental encoder
- Cooling: Natural cooling
- Protection: IP65
- Shaft: Smooth shaft with brake
- Compatible Drives: MR-JE-10A, MR-J4-10A
- Weight: 0.8 kg
Features & Benefits
- Low inertia design for fast acceleration and deceleration
- 22-bit high-resolution encoder for high positioning accuracy
- With electromagnetic brake for safe and reliable stopping
- IP65 protection suitable for industrial environment
- Perfect matching with Mitsubishi MR-JE and MR-J4 series drives
Applications
Widely used in electronic assembly machines, semiconductor equipment, small conveying devices, 3C automation, medical instruments and other light-load precision motion control fields.
