Product Overview

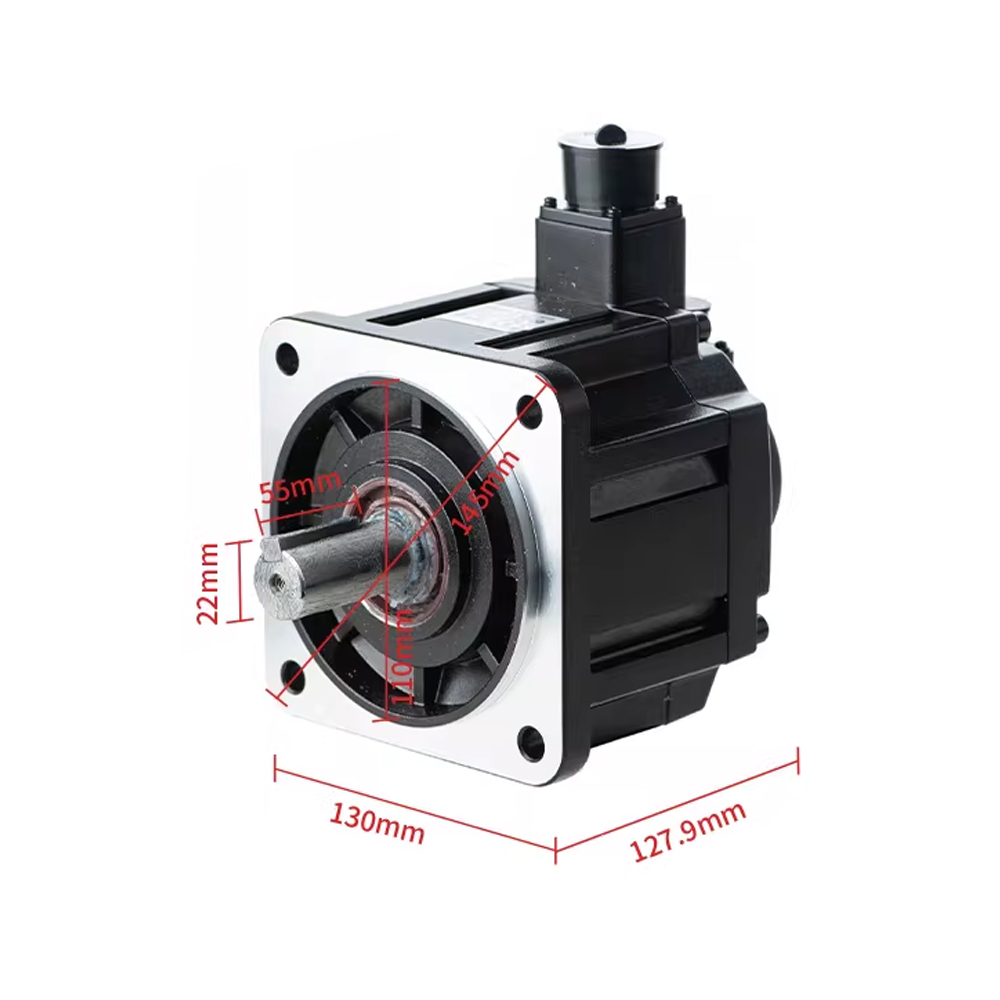

The ECM-B3M-E21315RS1 is a medium inertia AC servo motor from Delta ECM-B3M series. It features 1.5kW rated power, 220V AC input, 24-bit incremental optical encoder, 130mm frame size, keyway shaft with oil seal and no holding brake. It provides strong and stable torque output with good rigidity, suitable for medium to heavy-load precision automation equipment.
Key Specifications
- Brand: Delta
- Series: ECM-B3M (Medium Inertia)
- Model: ECM-B3M-E21315RS1
- Rated Power: 1.5kW (1500W)
- Rated Voltage: 220V AC
- Rated Speed: 2000 rpm
- Max Speed: 3000 rpm
- Rated Torque: 7.16 N·m
- Peak Torque: 21.5 N·m
- Encoder: 24-bit incremental optical
- Frame Size: 130mm
- Brake: No brake
- Shaft: Keyway shaft
- Oil Seal: Yes
- Protection Class: IP65 (shaft)
- Weight: 5.2 kg
- Matching Drive: ASD-B3-1521-L
Features & Benefits
- Medium inertia design for excellent rigidity and stable operation under medium to heavy load
- 24-bit high-resolution encoder for high positioning accuracy and fast response
- Keyway shaft ensures reliable torque transmission and stable operation
- Oil seal design provides good dustproof and waterproof performance
- Good heat dissipation performance supports long-term continuous working
- Fully compatible with Delta ASDA-B3 series servo drives for easy system matching
Applications
Widely used in CNC machine tools, packaging machinery, cutting machines, semiconductor handling equipment, robotics, winding machines, tool changers and other medium to heavy-load precision motion control scenarios.
