Product Overview

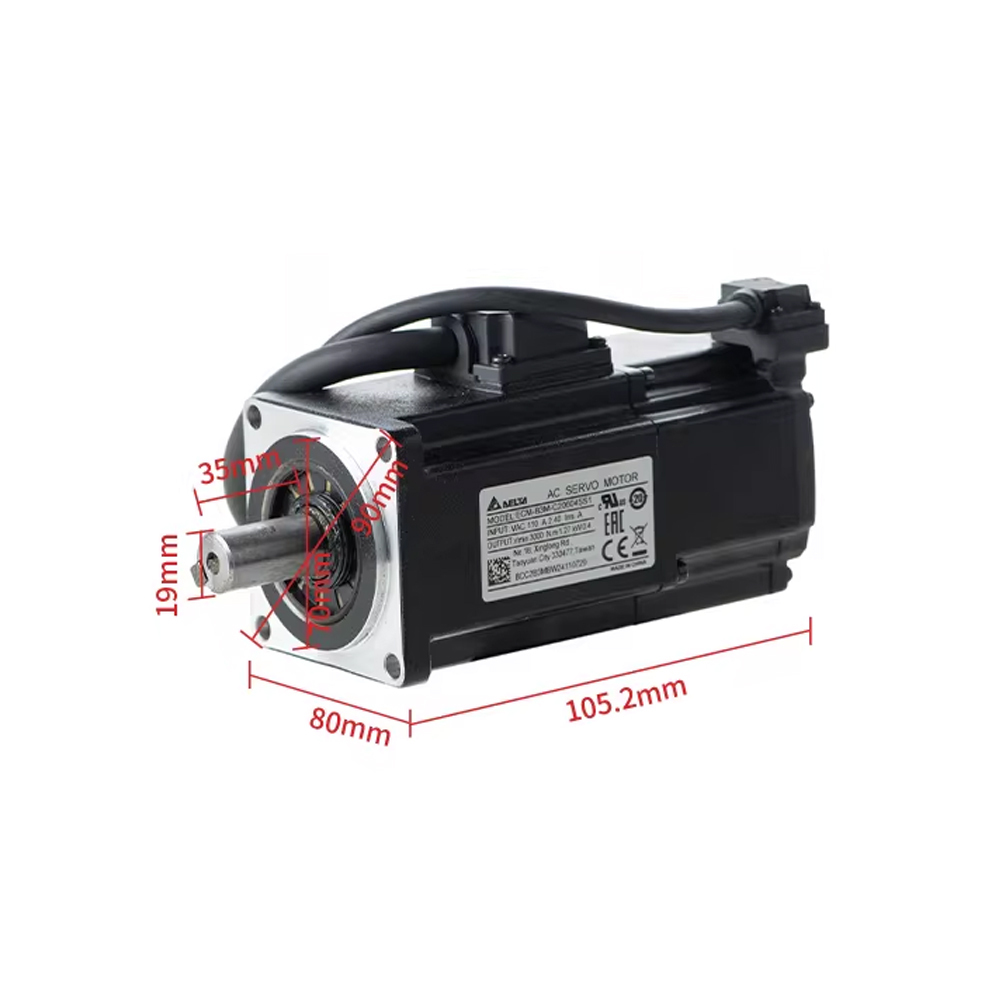

The ECM-B3M-C20807RS1 is a medium inertia AC servo motor from Delta ECM-B3M series. It features 0.75kW rated power, 200~230V AC input, 24-bit incremental encoder, 80mm frame size, keyway shaft with oil seal and no holding brake. It provides stable torque output and good rigidity, suitable for medium-load precision automation equipment.
Key Specifications
- Brand: Delta
- Series: ECM-B3M (Medium Inertia)
- Model: ECM-B3M-C20807RS1
- Rated Power: 0.75kW (750W)
- Rated Voltage: 200~230V AC
- Rated Speed: 3000 rpm
- Max Speed: 5000 rpm
- Rated Torque: 2.39 N·m
- Peak Torque: 7.17 N·m
- Encoder: 24-bit incremental encoder
- Frame Size: 80mm
- Brake: No brake
- Shaft: Keyway shaft
- Oil Seal: Yes
- Protection Class: IP65 (shaft)
- Weight: 1.6 kg
- Matching Drive: ASD-B3-0721-L
Features & Benefits
- Medium inertia design for better rigidity and running stability
- 24-bit high-resolution encoder for high positioning accuracy
- Keyway shaft for reliable torque transmission
- Oil seal for enhanced dustproof and waterproof performance
- Good heat dissipation for long-term continuous operation
- Perfect compatibility with Delta ASDA-B3 series servo drives
Applications
Widely used in packaging machinery, cutting machines, labeling machines, 3C assembly, semiconductor handling, rotary tables and other medium-load motion control scenarios.
