Product Overview

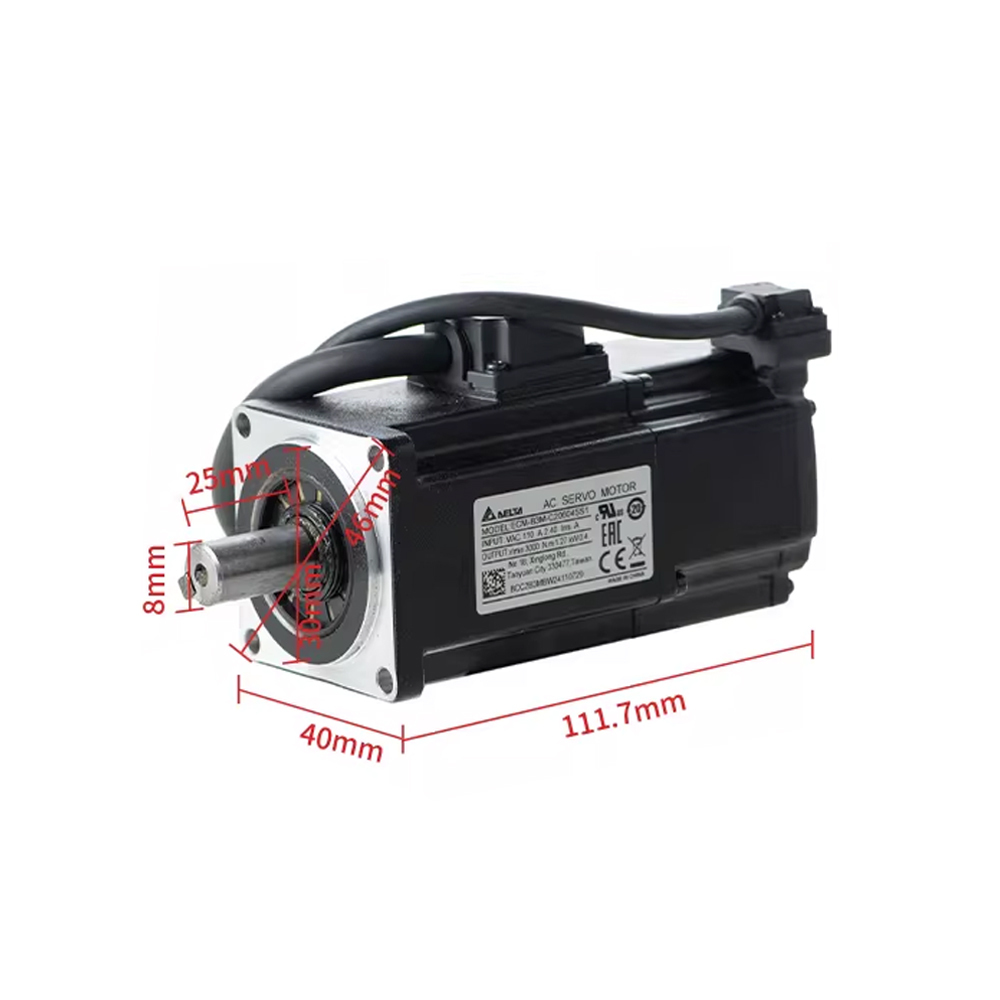

The ECM-B3L-C20401SS1 is a low inertia AC servo motor from Delta ECM-B3L series. It has 0.1kW rated power, 200~230V input, 24-bit incremental encoder, 40mm frame, with holding brake, smooth shaft and oil seal. It is widely used in vertical axis and equipment requiring power-off position locking, matching with ASDA-B3 series servo drives.
Key Specifications
- Brand: Delta
- Series: ECM-B3L (Low Inertia)
- Model: ECM-B3L-C20401SS1
- Rated Power: 0.1kW (100W)
- Rated Voltage: 200~230V AC
- Rated Speed: 3000 rpm
- Max Speed: 6000 rpm
- Rated Torque: 0.32 N·m
- Peak Torque: 1.12 N·m
- Encoder: 24-bit incremental encoder
- Frame Size: 40mm
- Brake: With holding brake
- Shaft: Smooth shaft (no keyway)
- Oil Seal: Yes
- Protection Class: IP65 (shaft)
- Weight: 0.6 kg
- Matching Drive: ASDA-B3-0121-L
Features & Benefits
- Low inertia for fast response and high dynamic performance
- 24-bit high-resolution encoder for high positioning accuracy
- Built-in holding brake for safe position holding in vertical applications
- Smooth shaft for flexible coupling installation
- Oil seal design improves dustproof and waterproof performance
- Compact size, suitable for small precision automation equipment
- Good compatibility with ASDA-B3 series servo drives
Applications
Widely used in 3C assembly, semiconductor handling, small robots, labeling machines, medical devices, vertical motion axis and other precision equipment requiring brake function.
