Product Overview

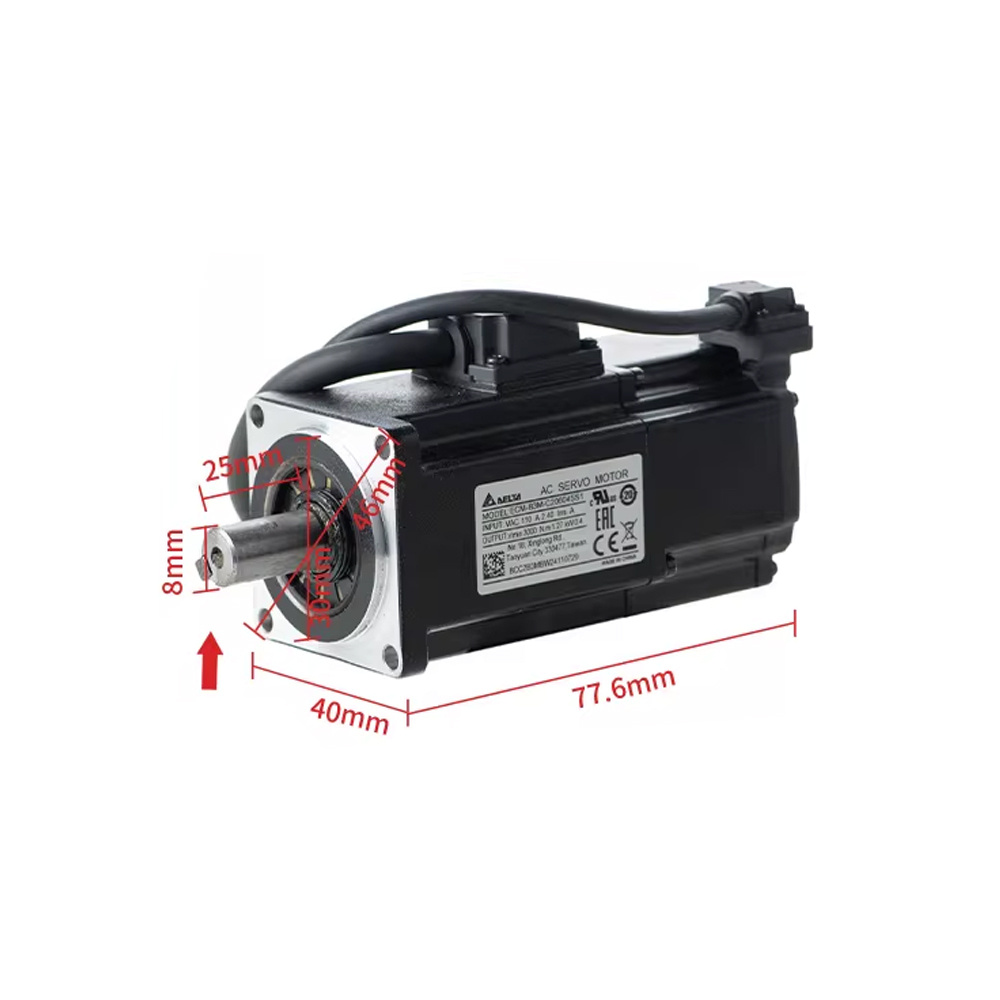

The ECM-B3L-C20401RS1 is a low inertia AC servo motor from Delta ECM-B3L series, designed for high-precision, fast-response motion control. It features 0.1kW rated power, 220V AC input, 24-bit incremental encoder, compact 40mm frame, keyway shaft with oil seal, and no brake. It is fully compatible with Delta ASDA-B3 series servo drives, ideal for small-power precision automation applications.
Key Specifications
- Brand: Delta
- Series: ECM-B3L (Low Inertia)
- Model: ECM-B3L-C20401RS1
- Rated Power: 0.1kW (100W)
- Rated Voltage: 200~230V AC 1/3PH 50/60Hz
- Rated Speed: 3000 rpm
- Max Speed: 6000 rpm
- Rated Torque: 0.32 N·m
- Peak Torque: 1.12 N·m (350% of rated)
- Rated Current: 0.857 Arms
- Peak Current: 3.44 Arms
- Encoder: 24-bit incremental optical encoder
- Frame Size: 40mm (40x40mm)
- Brake: No brake
- Shaft: Keyway (with screw holes)
- Oil Seal: Yes
- Protection Class: IP65 (shaft), IP67 (connector)
- Weight: 0.5 kg
- Matching Drive: ASDA-B3-0121-L / ASD-B3-0121-E
Features & Benefits
- Low inertia design for ultra-fast acceleration/deceleration and high dynamic response
- 24-bit high-resolution encoder for precise positioning and motion control
- Compact 40mm frame, ideal for space-constrained equipment
- Keyway shaft with oil seal for reliable power transmission and dust/water protection
- No brake for cost-effective, high-speed operation
- Wide voltage compatibility (200~230V AC) for global applications
- Seamless integration with Delta ASDA-B3 servo drives for optimal system performance
- Comprehensive protections: overcurrent, overvoltage, overload, overheat
Applications
Widely used in 3C assembly, semiconductor handling, small packaging machinery, labeling machines, medical equipment, precision instruments, robotics, and other small-power high-precision motion control scenarios.
