Product Overview

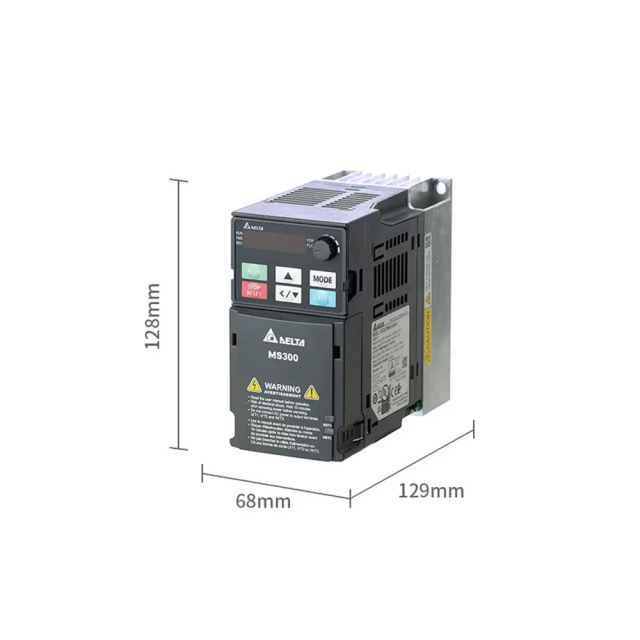

VFD1A5MS43ANSAA belongs to Delta’s MS300 high-performance compact inverter series. It offers high torque at low speed, compact size, and modular design for easy maintenance. It supports both induction and permanent magnet motors, suitable for standard and energy-saving applications.
Key Specifications
- Brand: Delta
- Model: VFD1A5MS43ANSAA
- Series: MS300
- Rated Power: 0.4kW (0.5HP)
- Input Voltage: 3-phase AC 380~480V, 50/60Hz
- Output Voltage: 3-phase AC 0~480V
- Output Frequency Range: 0.1~599Hz
- Rated Output Current: 1.5A
- Control Mode: V/F Control, SVC (Open-loop Vector) for IM/PM Motors
- Communication: Optional (via communication card: CANopen, Modbus TCP, etc.)
- Built-in Brake Unit: Yes (external brake resistor optional)
- EMI Filter: No (optional)
- Safety Function: Built-in STO (Safe Torque Off)
- Protection Functions: Overcurrent, overload, overvoltage, undervoltage, overtemperature, stall protection
- Installation: Wall mounting / DIN rail mounting
- Protection Level: IP20
- Operating Temperature: -10°C ~ 50°C
Features & Benefits
- Ultra-compact design: Saves cabinet space, ideal for small automation systems.
- High low-speed torque: Ensures stable motor startup and operation under load.
- Built-in brake unit: Enables quick stopping for dynamic applications.
- STO safety stop: Meets safety standards for machinery.
- Internal PLC: Reduces need for external controllers, lowers system cost.
- Wide voltage tolerance: Adapts to unstable power grids.
Applications
Small fans, water pumps, conveyor lines, packaging machinery, textile machinery, and general industrial AC motor speed control.
