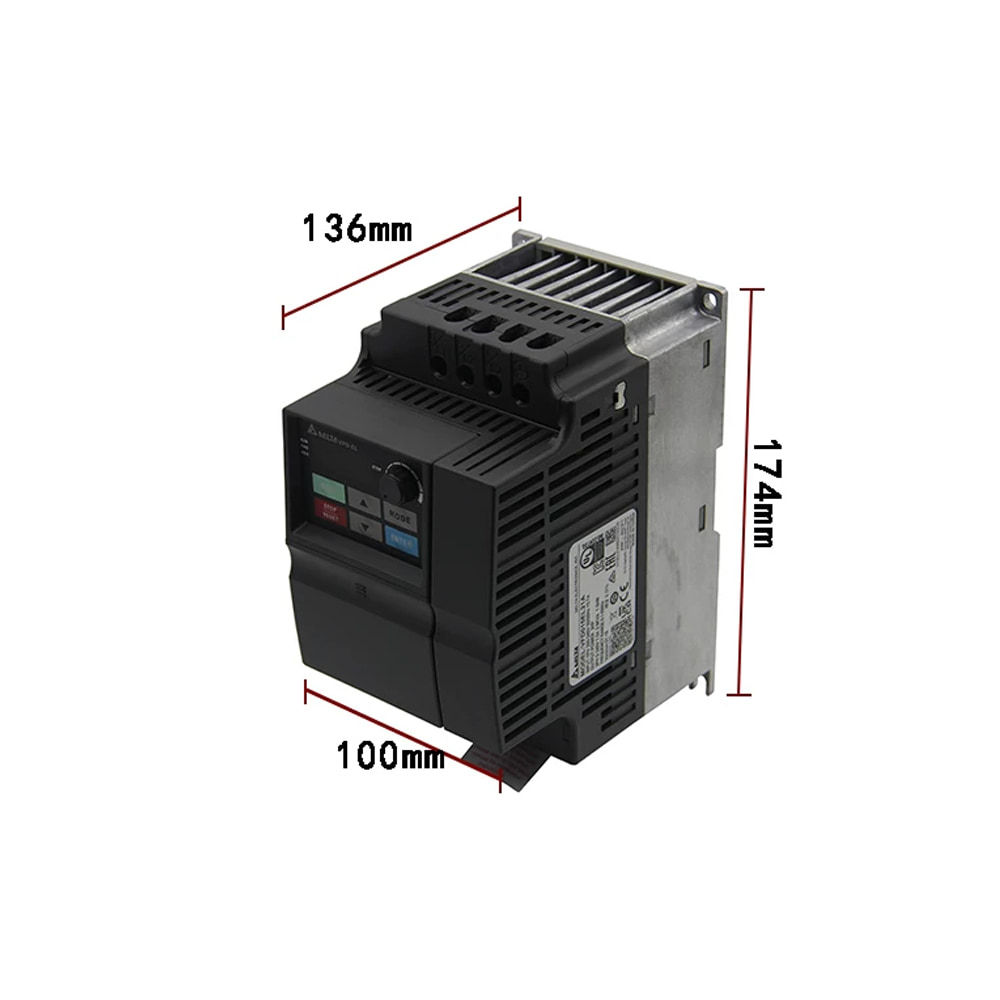

Product Overview
VFD022EL43A is part of Delta VFD-EL standard micro inverter series. Featuring slim compact design, low noise operation, complete protection functions and flexible communication interface, it is widely used in small automation equipment, ventilation, water supply and conveying machinery systems.
Key Specifications
- Brand: Delta
- Model: VFD022EL43A
- Series: VFD-EL
- Rated Power: 2.2kW (3HP)
- Input Voltage: 3-phase AC 380~480V, 50/60Hz
- Output Voltage: 3-phase AC 0~480V
- Output Frequency Range: 0.1~599Hz
- Rated Output Current: 5.5A
- Control Mode: V/F Control, Sensorless Vector Control
- Communication: Built-in RS-485, Modbus RTU/ASCII
- Built-in EMI Filter: Yes
- Protection Functions: Overcurrent, overload, overvoltage, undervoltage, over temperature, stall protection
- Installation: Wall mounting / DIN rail mounting
- Protection Level: IP20
- Operating Temperature: 0°C ~ 50°C
Features & Benefits
- Compact slim design, saves control cabinet installation space
- High low-speed torque output, ensures stable motor operation
- Built-in EMI filter to reduce electromagnetic interference
- Supports Modbus communication, easy connection with PLC and HMI
- Multiple safety protection functions, high stability and long service life
- Simple parameter setting, convenient debugging and daily maintenance
Applications
Fans, water pumps, conveyor lines, packaging machinery, textile machinery, small processing equipment and general industrial AC motor speed control.
