Product Overview
VFD015EL43A belongs to Delta VFD-EL mini multifunction inverter, slim side-by-side installation, complete protection, PID closed-loop control, stable low-speed torque, widely used in small automation equipment。
Key Specifications
- Brand: Delta
- Model: VFD015EL43A
- Series: VFD-EL
- Rated Power: 1.5kW（2.0HP）
- Input: 3-phase AC 380~480V（342~528V），50/60Hz
- Output: 3-phase AC 0~480V，0.1~600Hz
- Rated Output Current: 4.2A
- Rated Input Current: 4.3A
- Rated Capacity: 3.3kVA
- Control Mode: V/F control、Sensorless Vector Control（SVC）
- Communication: RS-485 Modbus RTU/ASCII（RJ45）
- Built-in EMI Filter: Yes
- Carrier Frequency: 2~12kHz adjustable
- Protection: Overcurrent、overload、overvoltage、undervoltage、overtemperature、stall、PTC motor protection
- Installation: DIN rail / wall mounting
- Protection Level: IP20

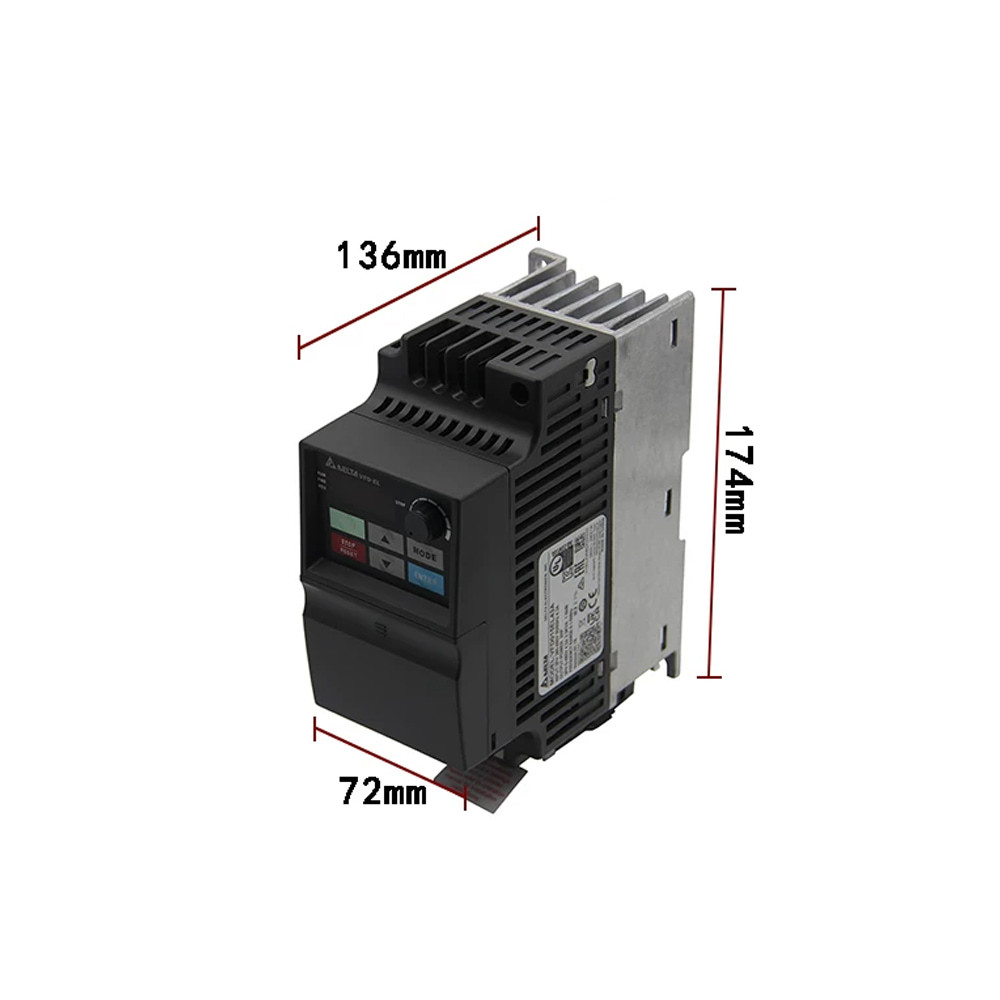

- Size（W×H×D）: 72×136×174mm
- Weight: ~1.3kg
- Operating Temp: -10℃~40℃（side-by-side）/-10℃~50℃
Features & Benefits
- Ultra-slim structure, save cabinet space, support DC bus parallel sharing
- Built-in EMI filter, meet EN61800-3 EMC standard
- High torque at low speed, stable operation
- Built-in PID constant pressure control, easy pump/fan closed-loop adjustment
- 6-key LED keypad, simple parameter setting & fault query
- Multiple safety protections, high reliability & long service life
Applications
Water pumps, cooling fans, conveyor belts, packaging machinery, textile equipment, small processing machinery, general AC motor speed control。
