Product Overview

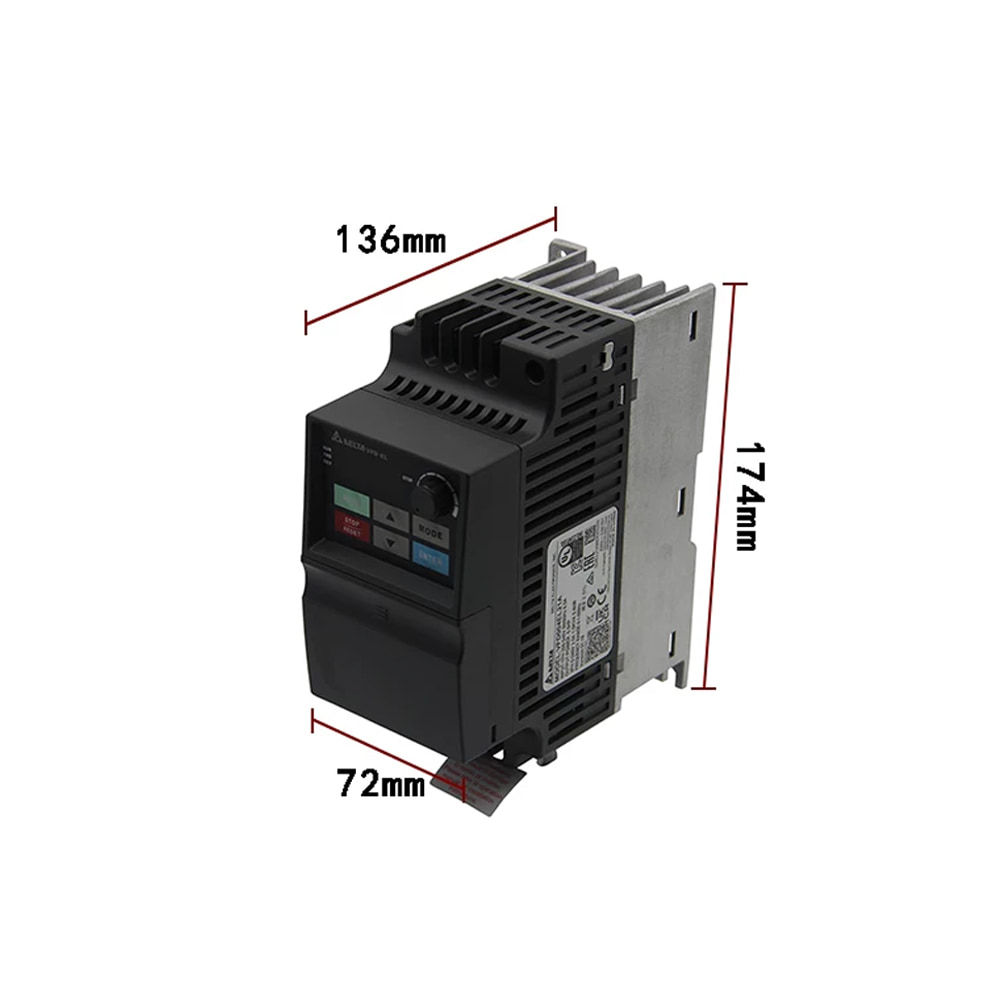

VFD007EL21A is part of Delta VFD-EL compact inverter series. Adopting high-performance sensorless vector control, slim body design and complete protection functions, it is widely used in small industrial equipment, ventilation, water supply and automation supporting motor speed control.
Key Specifications
- Brand: Delta
- Model: VFD007EL21A
- Series: VFD-EL
- Rated Power: 0.75kW (1HP)
- Input Voltage: 1-phase AC 200~240V, 50/60Hz
- Output Voltage: 3-phase AC 0~240V
- Output Frequency Range: 0.1~599Hz
- Rated Output Current: 4.2A
- Control Mode: V/F control, Sensorless Vector Control
- Communication: Built-in RS-485, Modbus RTU/ASCII
- Built-in EMI Filter: Standard equipped
- Protection Functions: Overload, over current, over voltage, under voltage, over temperature, stall protection
- Installation: DIN rail / wall mounting
- Protection Grade: IP20
- Operating Temperature: 0°C ~ 50°C
Features & Benefits
- Compact slim structure, save cabinet installation space
- Low speed high torque output, stable motor operation
- Built-in EMI filter, reduce electromagnetic interference
- Support Modbus communication, easy connect with PLC and HMI
- Complete multiple protection, long service life and high stability
- Simple parameter setting, convenient debugging and maintenance
Applications
Fan and pump equipment, conveyor lines, packaging machinery, textile machinery, small processing equipment and general industrial motor speed control.
