Product Overview

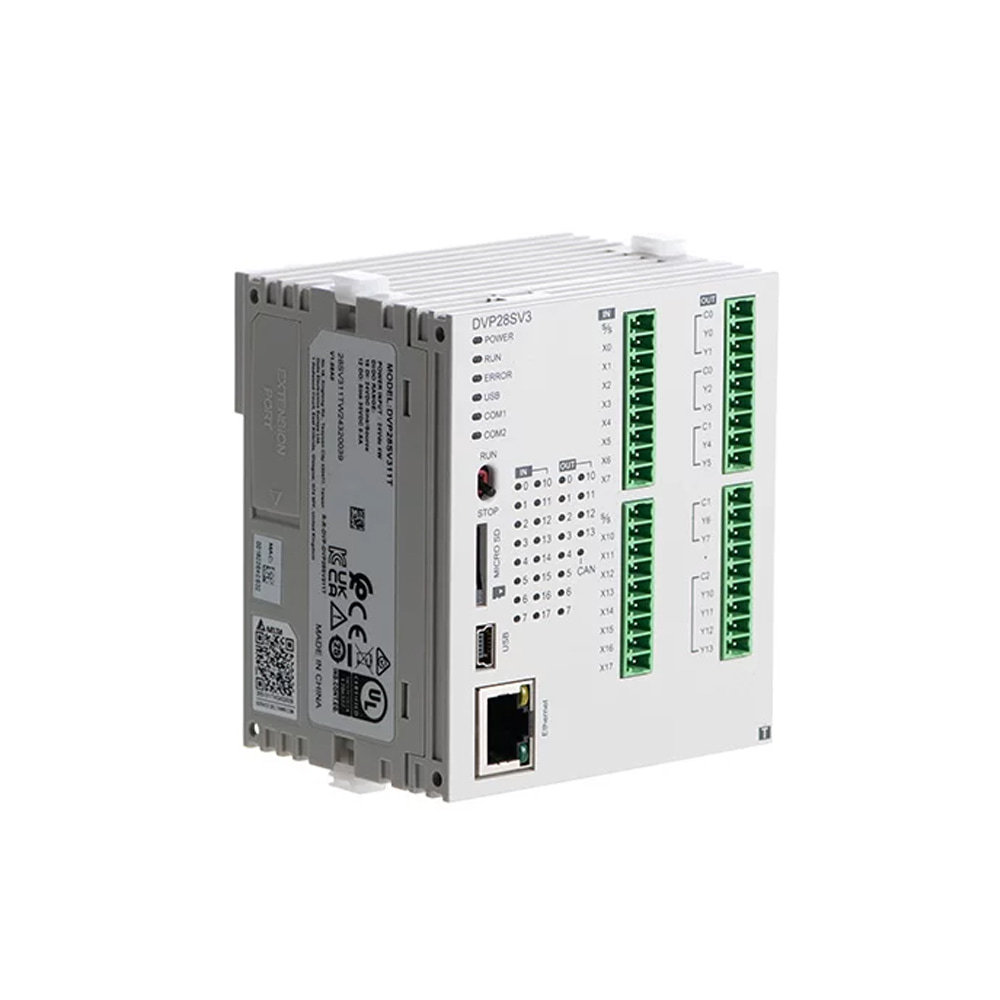

DVP28SV311T belongs to Delta’s third-generation DVP-SV3 high-speed slim PLC series. Built with an AS-series 32-bit CPU, it delivers ultra-fast processing, larger program capacity, enhanced security, and rich communication interfaces. Ideal for high-speed positioning, multi-axis linkage, and complex automation requiring Ethernet/CANopen connectivity.
Key Specifications
- Brand: Delta
- Model: DVP28SV311T
- Series: DVP-SV3
- Total I/O Points: 28 (16DI + 12DO)
- Digital Input: 16 DI, DC24V, sink/source selectable
- Digital Output: 12 DO, NPN Transistor type (30VDC max, 30mA/point)
- Power Supply: DC 24V (20.4~28.8V)
- Program Memory: 64k steps
- Basic Instruction Speed: 25ns (AS core)
- High-speed Counter: 4 channels up to 200kHz
- High-speed Pulse Output: 4 channels up to 200kHz
- Communication Interfaces:
- Ethernet (supports EtherNet/IP, Modbus TCP)
- CAN port (CANopen DS301)
- Dual RS-485 (Modbus RTU/ASCII, PLC Link)
- Mini USB (B-type)
- Micro SD card interface
- Max Expansion I/O: 512 points (256DI + 256DO)
- Motion Control: Supports 2-axis linear/circular interpolation
- Mounting: DIN rail
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
Features & Benefits
- Ultra-fast AS-core CPU: 25ns basic instruction speed for complex logic and motion tasks.
- High-speed motion: 4×200kHz pulse output and 2-axis interpolation for precision positioning.
- Rich connectivity: Ethernet/CAN/RS-485/USB/SD for seamless integration with HMI, drives, and systems.
- Large memory: 64k steps program capacity for larger applications.
- Enhanced security: Multi-level password protection for IP safety.
- Transistor output: High-frequency switching for servo/stepper drives.
- Battery-free design: Flash memory prevents data loss on power failure.
Applications
High-speed positioning systems, multi-axis linkage equipment, packaging machinery, printing/textile/woodworking machines, automated assembly lines, optoelectronic/semiconductor equipment, and Ethernet/CANopen-based industrial automation.
