Product Overview

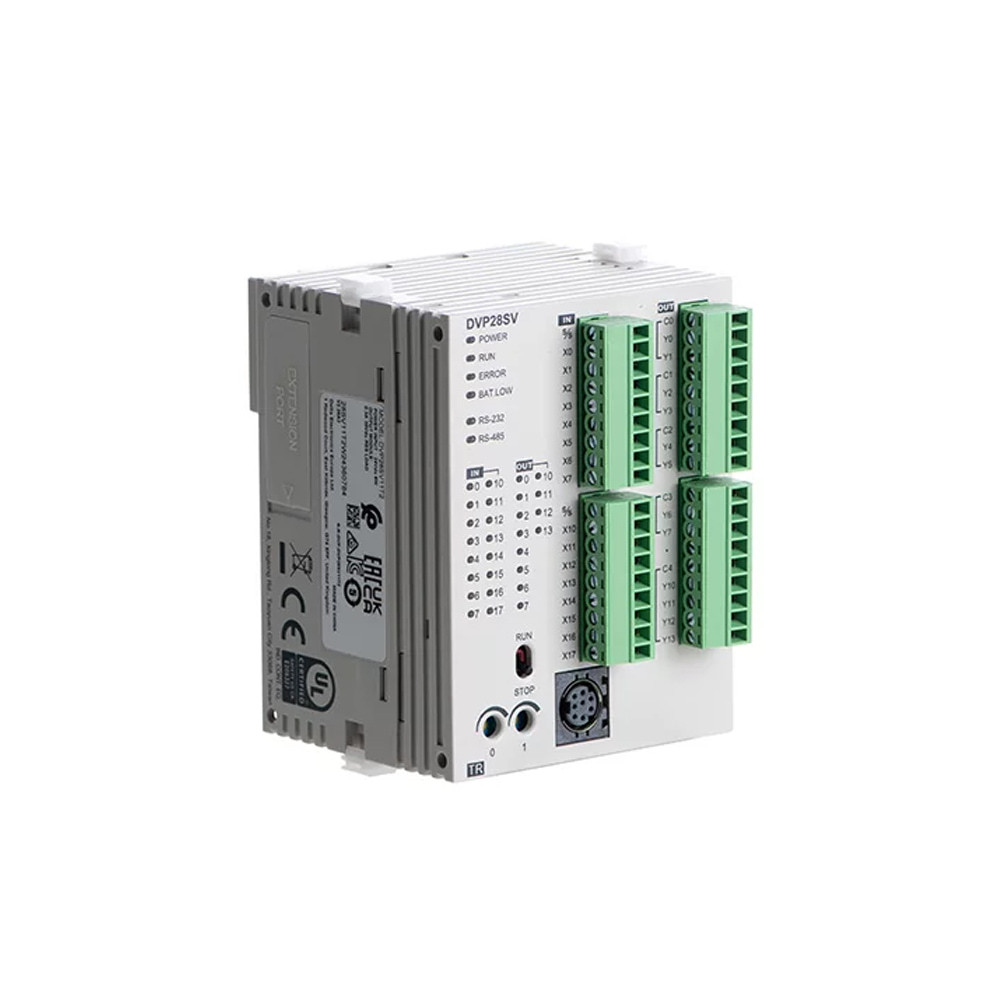

DVP28SV11T2 is part of the Delta DVP-SV2 high-speed slim PLC series. Designed for high-speed and high-precision automation, it delivers outstanding motion control performance, rapid response and flexible expansion. It is ideal for demanding machinery requiring multi-axis linkage and fast positioning.
Key Specifications
- Brand: Delta
- Model: DVP28SV11T2
- Series: DVP-SV2
- Total I/O Points: 28
- Digital Input: 16 DI, DC24V, sink/source selectable
- Digital Output: 12 DO, NPN Transistor type
- Power Supply: DC 24V
- Program Memory: 30k steps
- Basic Instruction Execution Speed: 0.24μs
- High-speed Counter: 4 channels up to 200kHz
- High-speed Pulse Output: 4 channels up to 200kHz
- Communication Ports: RS-232, Dual RS-485, Mini USB
- Supported Protocol: Modbus RTU, Modbus ASCII, PLC Link
- Maximum Expansion I/O: 512 points
- Installation: DIN rail mounting
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
Features & Benefits
- 4-axis high-speed 200kHz pulse output for independent motion control
- Supports 2-axis linear and circular interpolation for precise positioning
- High-speed CPU ensures stable operation with complex logic programs
- Transistor output supports high-frequency switching, suitable for servo and stepper drives
- Multiple communication ports allow easy connection with HMI, inverters and sensors
- Battery-free flash memory protects programs and data without maintenance
- Slim compact design saves cabinet space for compact installation
Applications
Packaging machinery, printing equipment, textile machines, woodworking machinery, automatic assembly lines, multi-axis positioning systems and high-speed industrial automation equipment.
