Product Overview

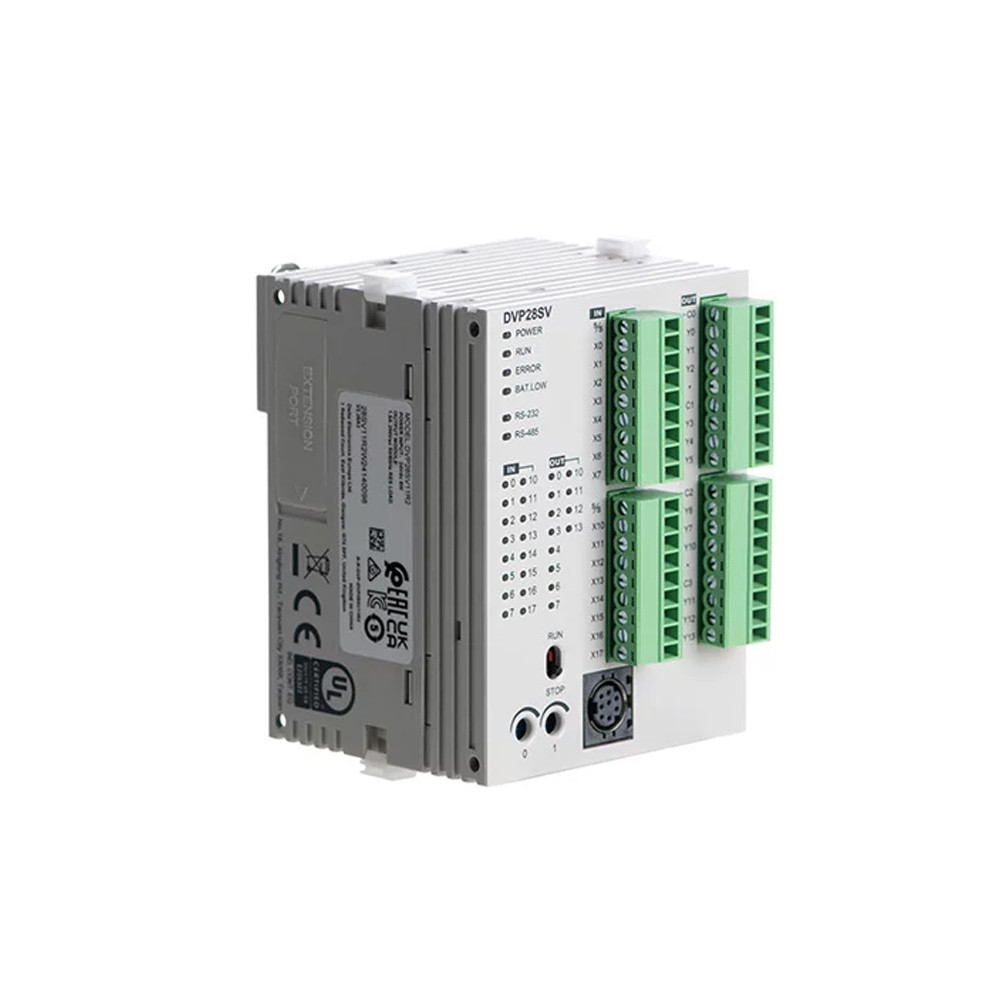

DVP28SV11R2 belongs to Delta DVP-SV2 high-speed slim PLC series. With ultra-fast instruction execution, powerful motion control function and flexible expansion capability, this controller is widely used in high-speed positioning, multi-axis linkage and high-precision mechanical automation equipment.
Key Specifications
- Brand: Delta
- Model: DVP28SV11R2
- Series: DVP-SV2
- Total I/O Points: 28
- Digital Input: 16 DI (DC24V, sink/source selectable)
- Digital Output: 12 DO (Relay type, 2A / 250VAC)
- Power Supply: DC 24V
- Program Memory: 30k steps
- Basic Instruction Speed: 0.24μs
- High-speed Counter: 4 channels up to 200kHz
- Pulse Output: 4 channels up to 200kHz
- Communication Interface: RS-232, Dual RS-485, Mini USB
- Protocol: Modbus RTU, Modbus ASCII, PLC Link
- Max Expansion I/O: 512 points
- Mounting: DIN rail
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
Features & Benefits
- High-speed 200kHz pulse output for 4-axis independent motion control
- Support 2-axis interpolation for precise positioning and linkage operation
- Ultra-fast CPU processing ensures stable operation under complex logic
- Relay output with strong load capacity for valves, contactors and general loads
- Multiple serial communication ports for convenient connection with HMI, drives and sensors
- Battery-free flash memory design, no data loss after power failure
- Slim and compact structure, saving cabinet installation space
Applications
Packaging machinery, printing equipment, textile machines, woodworking machinery, automated assembly lines, multi-axis positioning equipment and high-speed industrial automation systems.
